Tamiya 1:14 Scale Globle Liner Rig
In store availability:
Pickup currently unavailable at Wises Road Store

Tamiya 1:14 Scale Globle Liner Rig
Wises Road Store
4/47 Wises Road
Buderim QLD 4556
Australia
Tax included. Shipping calculated at checkout

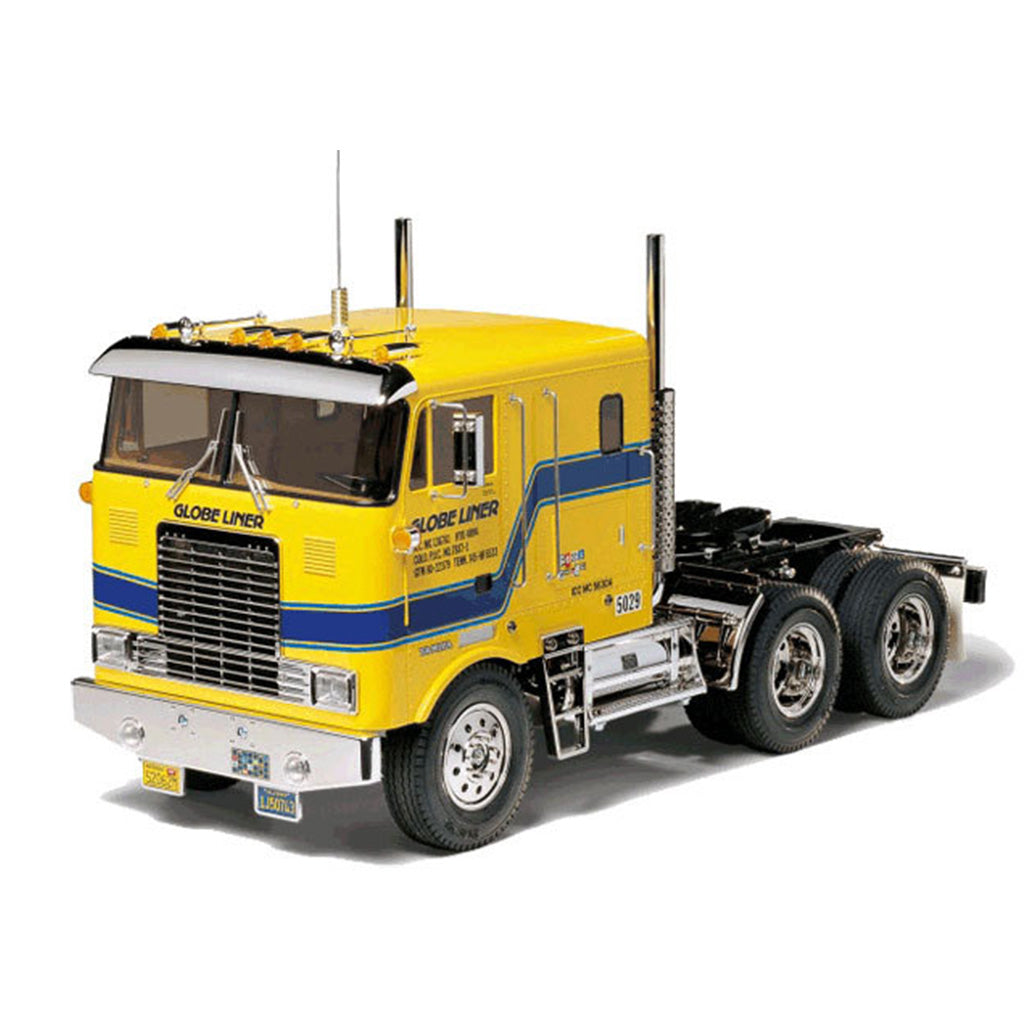

Tamiya has captured the attractive appearance of tractor trucks in a 1/14 scale electric powered "Globe Liner". The rear double axle drive uses rigid propeller shafts for smooth performance.
Length 500mm, Width 183mm, Height 350mm, Weight (without options): Approx. 2.6kg
-
Wheelbase: 350mm
-
Tread 156mm (Front), 138mm (Rear, Double Tire)
-
Chassis: Aluminum
-
Suspension: Front/Rear Leaf Springs
-
Caster Angle: (Front/Rear): 0°/0°
-
Camber Angle: 0°(Front & Rear)
-
Toe Angle: 0°(Front & Rear)
-
Dampers: Aluminum Dummy Dampers (Front & Rear)
-
Drivetrain: Rear Double Axle Drive
-
Transmission: 3-gear transmission (gear shifting operated via transmitter)
-
Gear Ratio (1st Gear) 32.49:1, (2nd Gear) 17.76:1, (3rd Gear) 10.66:1
-
Diff. Gear: 3-bevel diff
-
Motor Type: 540 brushed
-
Tire Width 22mm (Front & Rear)
-
Tire Diameter 83mm (Front & Rear)
