Tamiya Lunch Box (2005) W/Esc

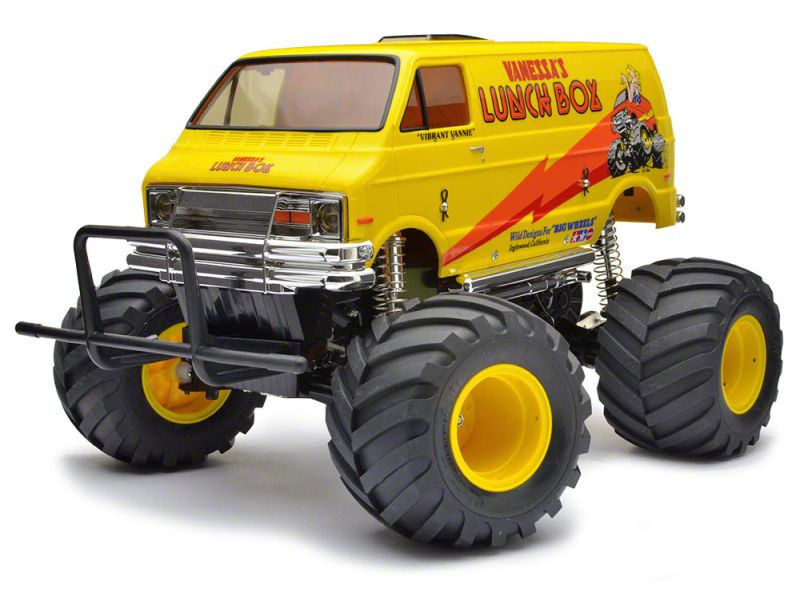

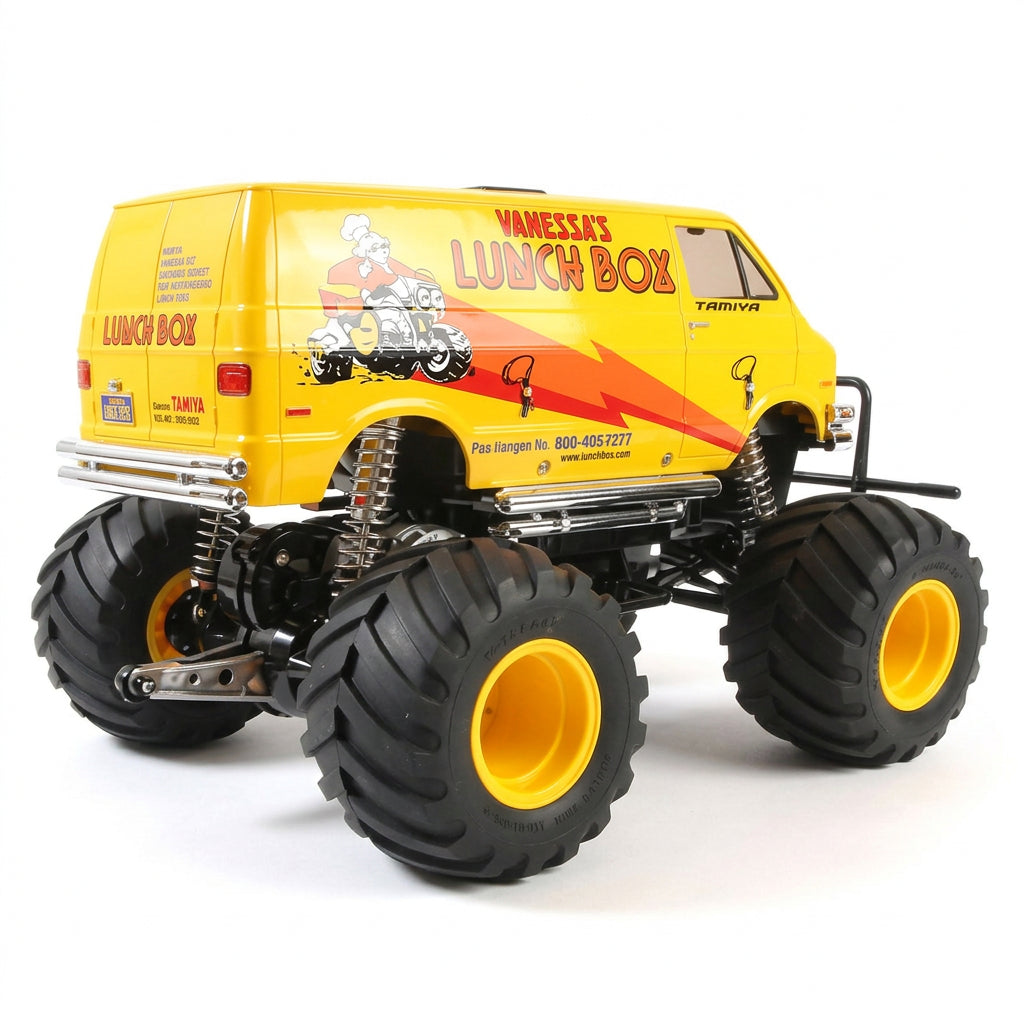

A beloved Tamiya classic since 1987, the Lunch Box combines a boxy minivan body with oversized monster truck tyres for a head-turning R/C experience. Whether you're a collector or a first-time builder, this assembly kit delivers big personality and wild stunt capability right out of the box.

Overview

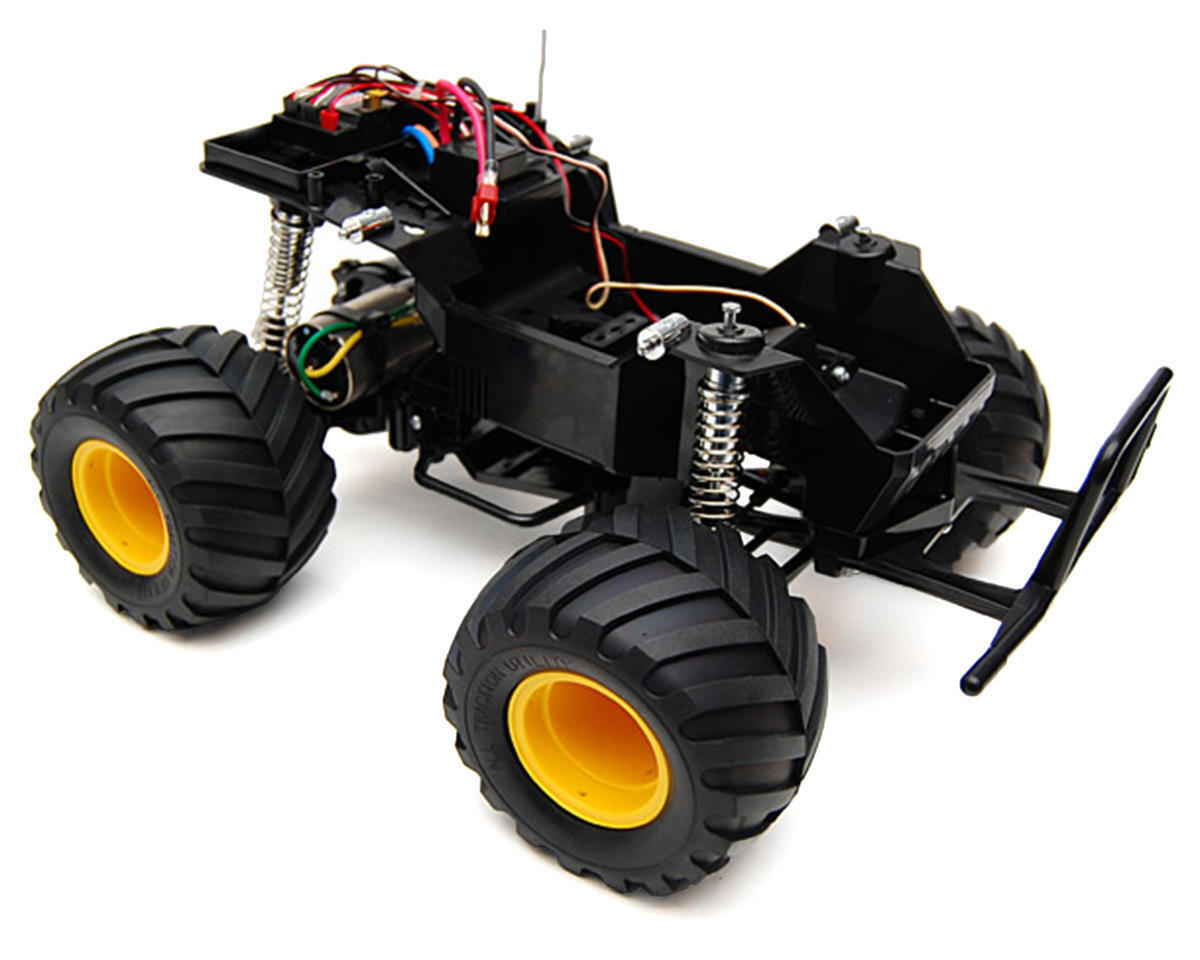

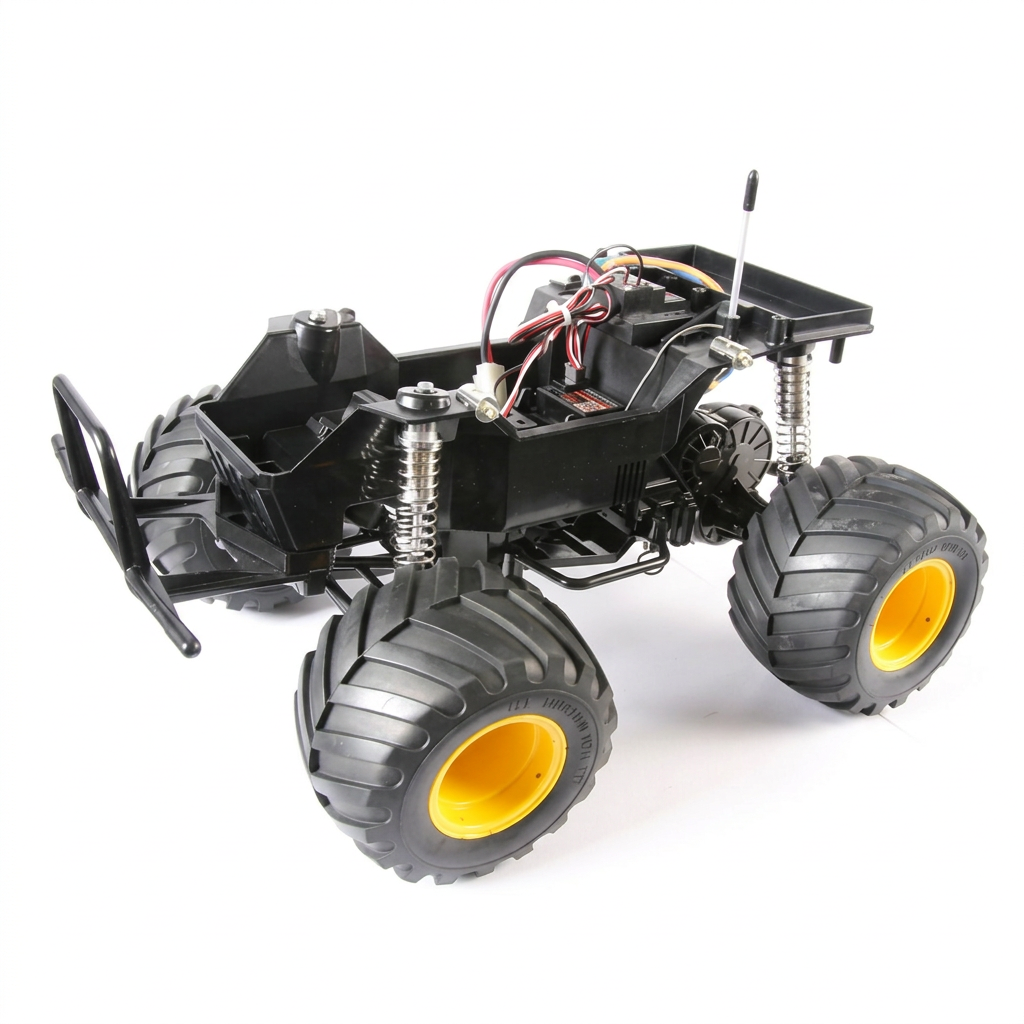

The 2WD CW-01 chassis features front independent swingarms and a rear rolling rigid suspension, mounted on massive 115mm diameter tyres that tackle even the toughest surfaces. A sealed gearbox keeps dirt and sand out during off-road runs, and the rear wheelie bar lets you pull off wild stunts.

Dimensions & Weight

• Length: 385mm | Width: 290mm | Height: 225mm
• Weight: 1,560g (excluding R/C mechanism and battery)
• Wheelbase: 207mm | Tread: 212mm (F) / 216mm (R)
• Tyre Width/Diameter: 71/115mm

Chassis & Drivetrain

• ABS Box Type Frame (CW-01)
• Rear-wheel 2WD
• Suspension: Independent Swingarm (Front) / Rolling Rigid (Rear)
• F/R Friction Dampers | 3-Bevel Differentials
• Gear Ratio: 14.7:1 | Type 540 Brushed Motor
• ESC Included: HobbyWing THW 1060 Brushed Motor ESC

Full Specifications

• Scale: 1/12 | Drive: 2WD | Chassis: CW-01
• Body & Chassis Material: ABS Plastic
• Differential: Gear | Shock: Friction type
• Bearings: Plastic bushing | Stickers: Included
• Terrain: Multi-Purpose | Construction: Assembly Kit

What You'll Need to Complete

• 2-channel radio & steering servo
• 7.4V battery & charger
• Tamiya TS paint
