Tamiya 1/10 Honda City Turbo RC Kit WR-02C with ESC (58611)

Tamiya 1/10 Honda City Turbo RC Kit – WR-02C Chassis with ESC

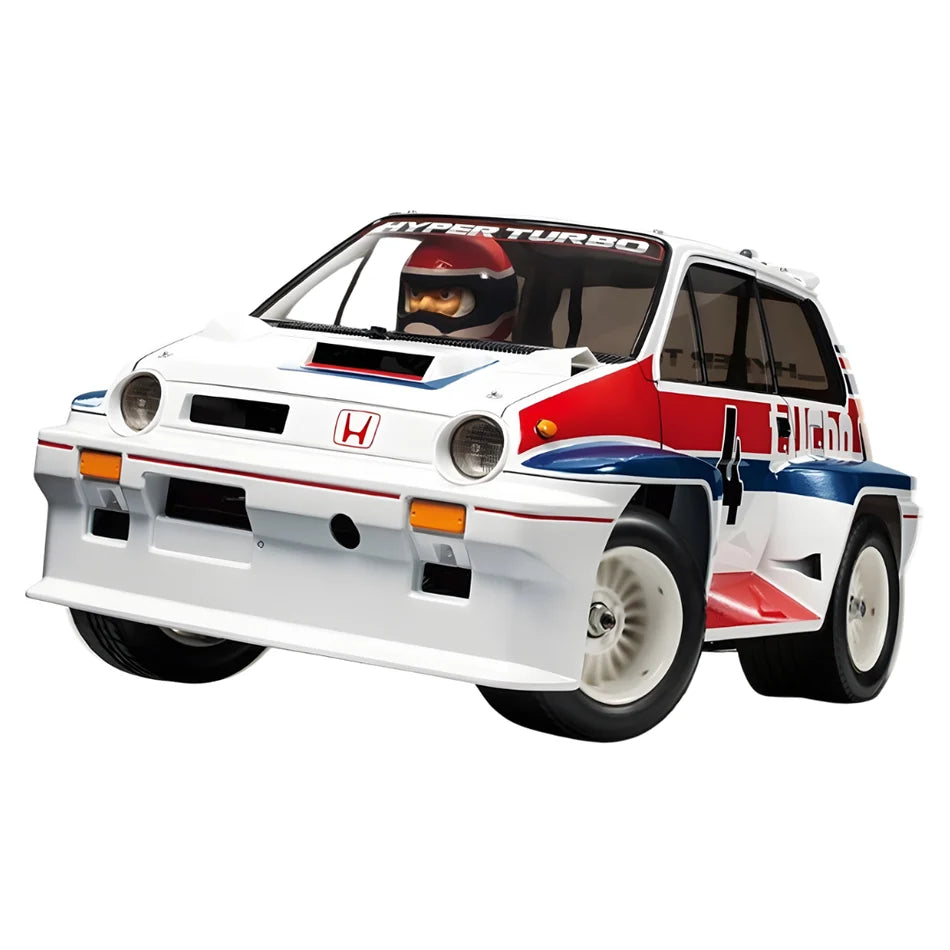

The Tamiya Honda City Turbo (TAM58611) is a 1/10 scale radio control car kit based on the iconic early-1980s JDM hatchback, built on Tamiya's WR-02C chassis and supplied with an electronic speed controller included. The WR-02C is a mid-motor, rear-wheel-drive chassis with a solid rear axle, making it well suited to smooth and lightly rough surfaces such as tarmac, car parks, and indoor tracks. This is a kit rather than a ready-to-run model, so assembly is required – but the build process is well documented and typical of Tamiya's intermediate-level kits.

Key Features

• Built on the WR-02C chassis, a front-engine RWD platform with a solid rear axle suited to on-road and smooth mixed-surface running.
• ESC is included in the box, removing one of the main additional purchases required for most kit builds.

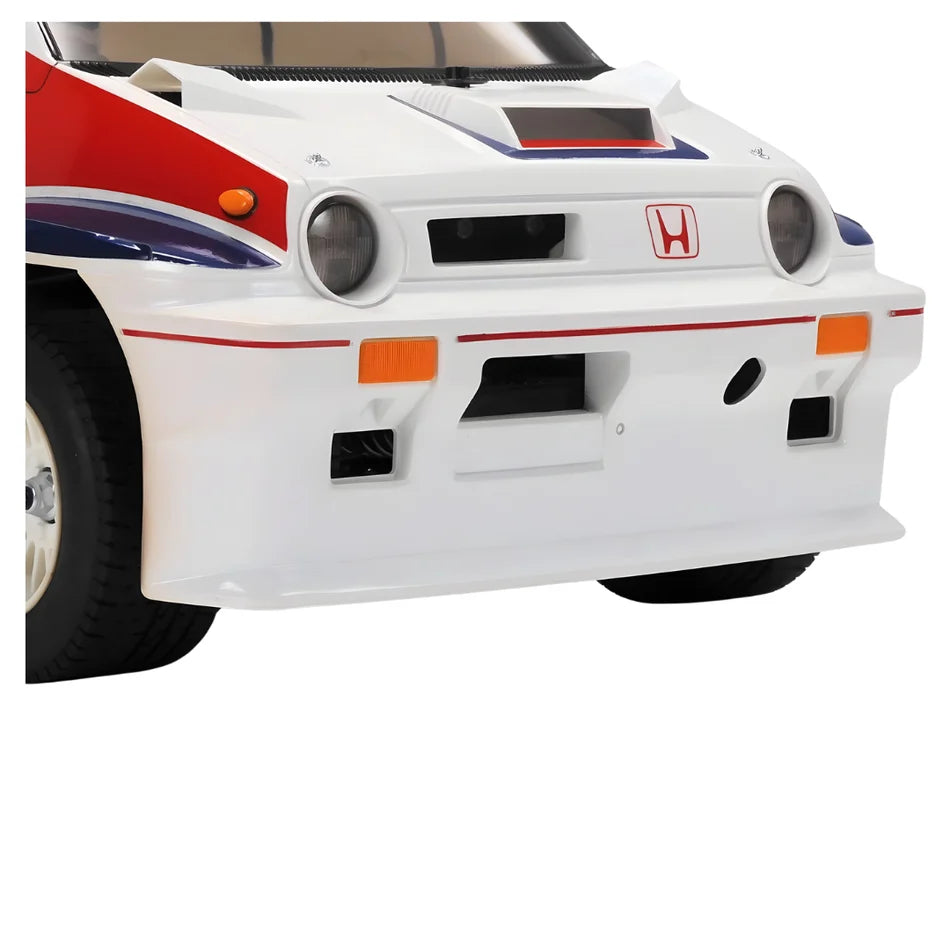

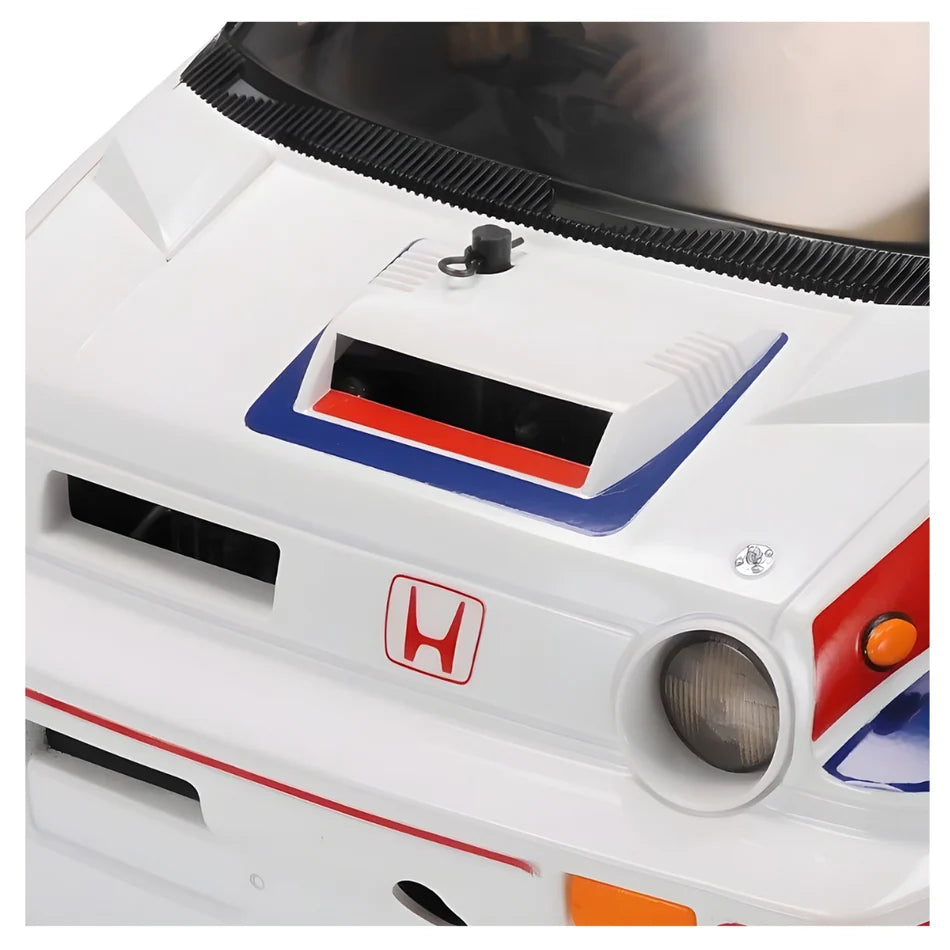

• The 1/10 scale body captures the boxy, period-correct shape of the Honda City Turbo, a popular JDM subject among Tamiya collectors and RC builders.
• Kit format with a manual-guided assembly process – suitable for hobbyists with some prior model or RC kit experience.
• Uses Tamiya's standard parts and hardware, so spares and hop-up options are widely available through the Tamiya parts network.

What's Included

• Tamiya WR-02C chassis kit with Honda City Turbo body shell and parts
• Electronic speed controller (ESC)
• Decal sheet
• Instruction manual

What You'll Need

• Tamiya or compatible 540-size brushed electric motor (not included)
• 2-channel RC transmitter and compatible receiver
• Steering servo
• NiMH or LiPo battery pack suitable for 1/10 scale RC (check ESC voltage rating before use)
• Compatible battery charger

• Basic hand tools for assembly (screwdrivers, pliers, hobby knife)

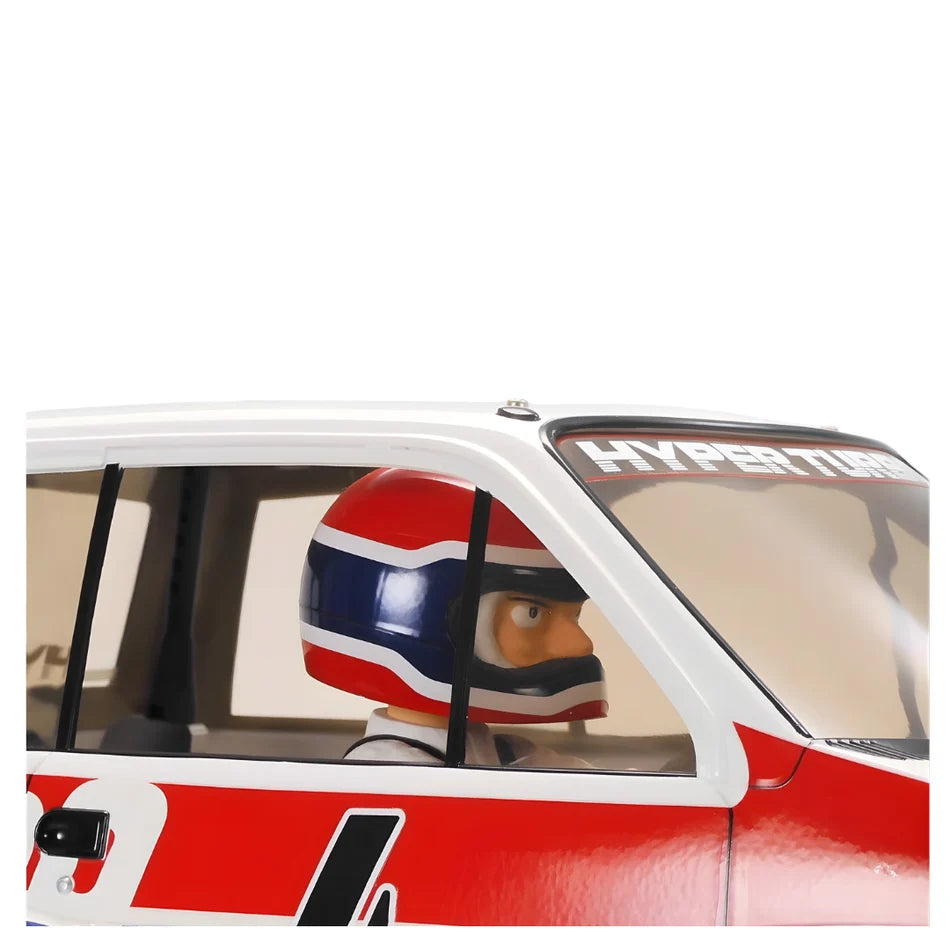

This RC model is an updated release of a Tamiya classic, which was released as "Willys Wheeler" back in 1983. It has returned upon a newly overhauled variant of the WR-02 chassis. It is fitted with a Honda City Turbo body, which also includes a comical driver figure.

About the WR-02C

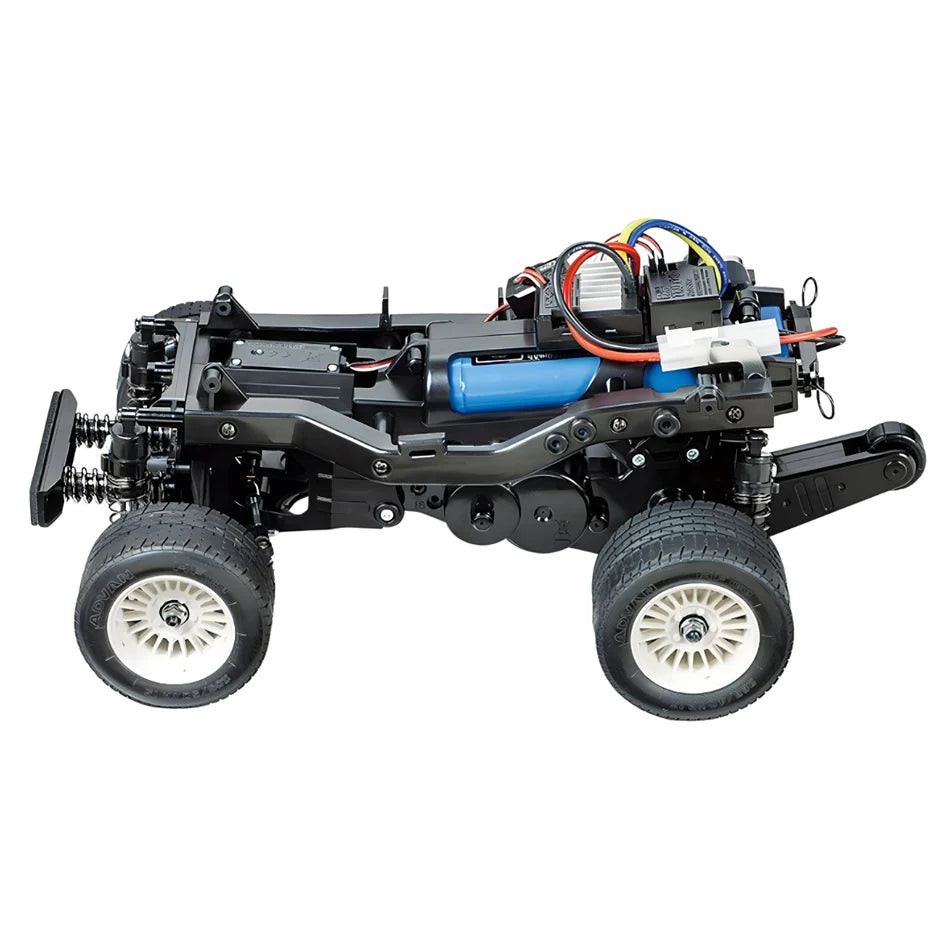

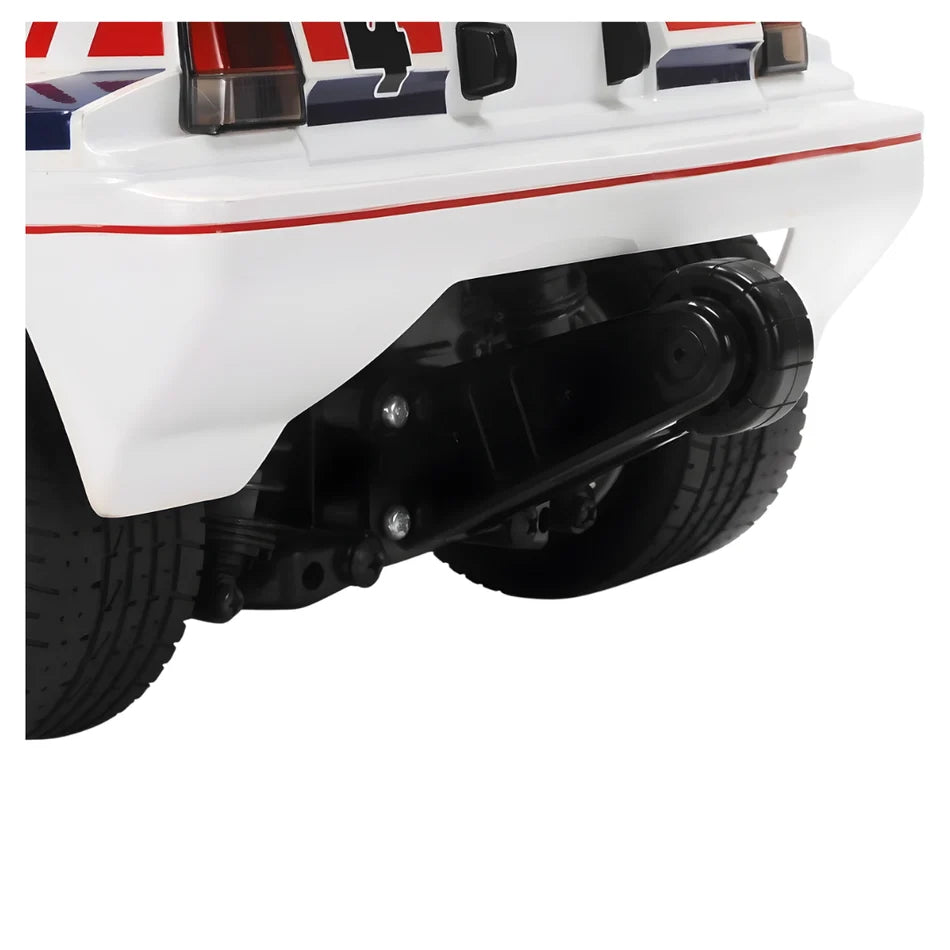

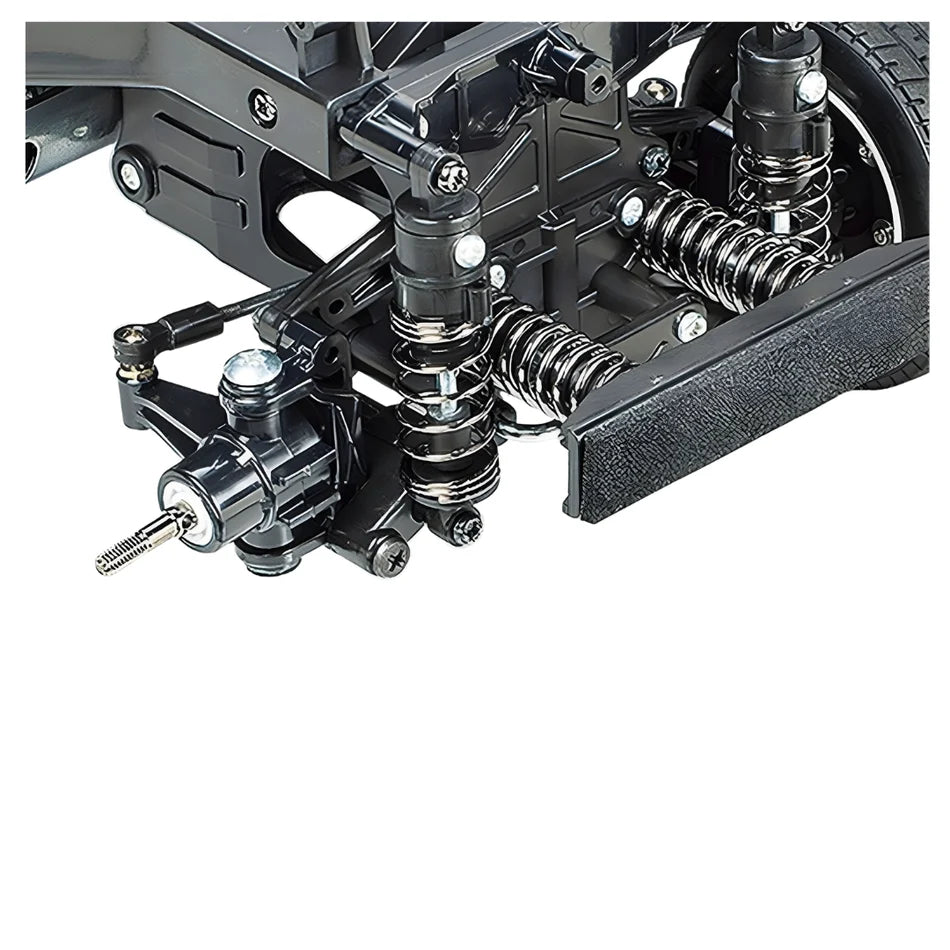

The WR-02 chassis features a 2WD drivetrain with fully independent double wishbone suspension. The 185mm wheelbase WR-02C chassis utilizes a sturdy monocoque frame which encompasses and protects the gearbox, enhanced by side members. The gear differential unit housed inside the sealed gearbox receives its power from the centerline-mounted motor and passes it on to the rear wheels. A longitudinal position for the battery pack contributes to the model's optimal weight distribution to ensure that when the City Turbo accelerates in a hurry, it performs a dynamic and thrilling wheelie, cushioned by the wheelie roller bar to ensure that the car doesn't topple over. The steering servo is also positioned along the centerline of the chassis, using a 2 tie-rod setup for straightforward handling. The model also features 4-wheel independent double wishbone suspension for a smooth ride. For ease of assembly, the gearbox and motor come pre-assembled.

Special Features:

• The WR-02C chassis is based upon the WR-02, and inherits its playful and fun drivability. It features an unusual 185mm wheelbase.
• Power is supplied to the rear wheels from the centrally-mounted motor.

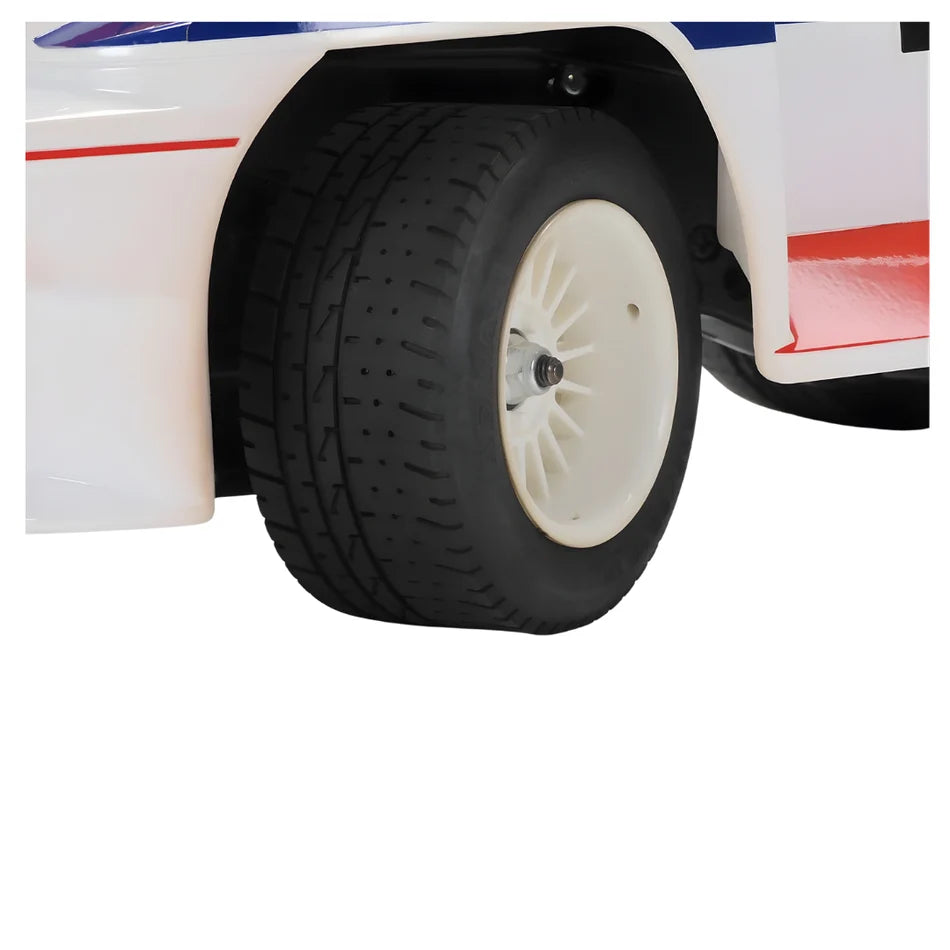

• Features wide rear tires.
• Comes with a pre-assembled gearbox and motor unit for faster ease of assembly.

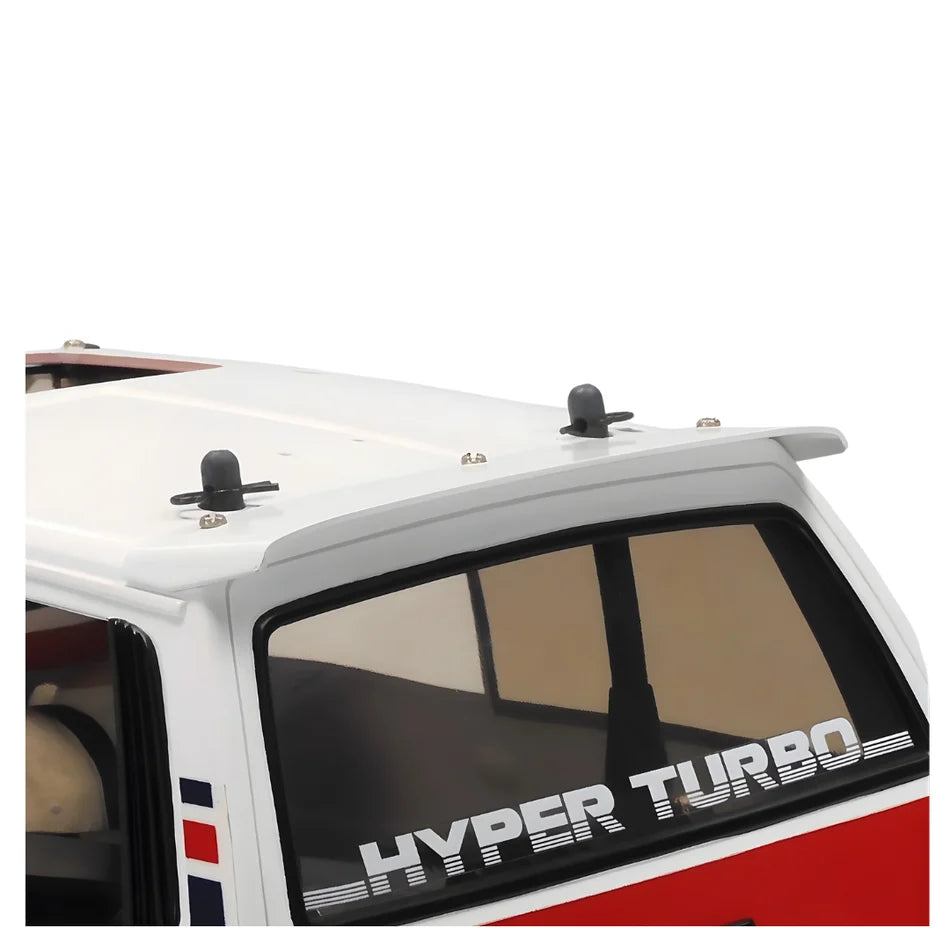

• The small, playful hatchback body remains as the original 1983 release.
• Includes Tamiya TBLE-02S ESC (capable of running brushed and brushless motors)

What's in the box?

• 1/10 scale R/C model assembly kit.
• Body Stickers Included
• Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)

What You'll Need

• 2-channel radio
• Steering servo
• 7.2volt battery with compatible charger
• Tamiya TS paints

Specifications:

• Adjustable Gear Ratio: Yes
• Bearings: Plastic bushing
• Body Material: ABS Plastic
• Chassis Material: ABS Plastic
• Chassis Type: WR-02
• Construction Type: Assembly kit
• Differential Type: Gear
• Drive Type: 2WD
• Electronic Speed Control (esc): Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)
• Led Light Buckets: No
• Motor: 540-brushed type
• Shock Damper: Friction damper
• Suspension: Fully independent double wishbone
• Terrain Use: On-Road
• Tread: 165mm (Front), 170mm (Rear)
• Tyre Width/Diameter: 35/70mm (Front), 42/70mm (Rear)
• Resin Monocoque Frame
• Rear-Wheel 2WD
• 4-Wheel Double Wishbone Suspension
• Front/Rear Friction Dampers
• 2-Piece Steering Tie Rod
• 3-Bevel Differentials
• Gear Ratio: 16.5:1
• Torque-Tuned Motor

Item Dimensions - Without Packaging:

• Length (cm) = 34.5
• Height (cm) = 16.5
• Width (cm) = 21.0
• Wheelbase (cm) = 18.5
