High-Performance Waterproof Brushless ESC for Crawlers

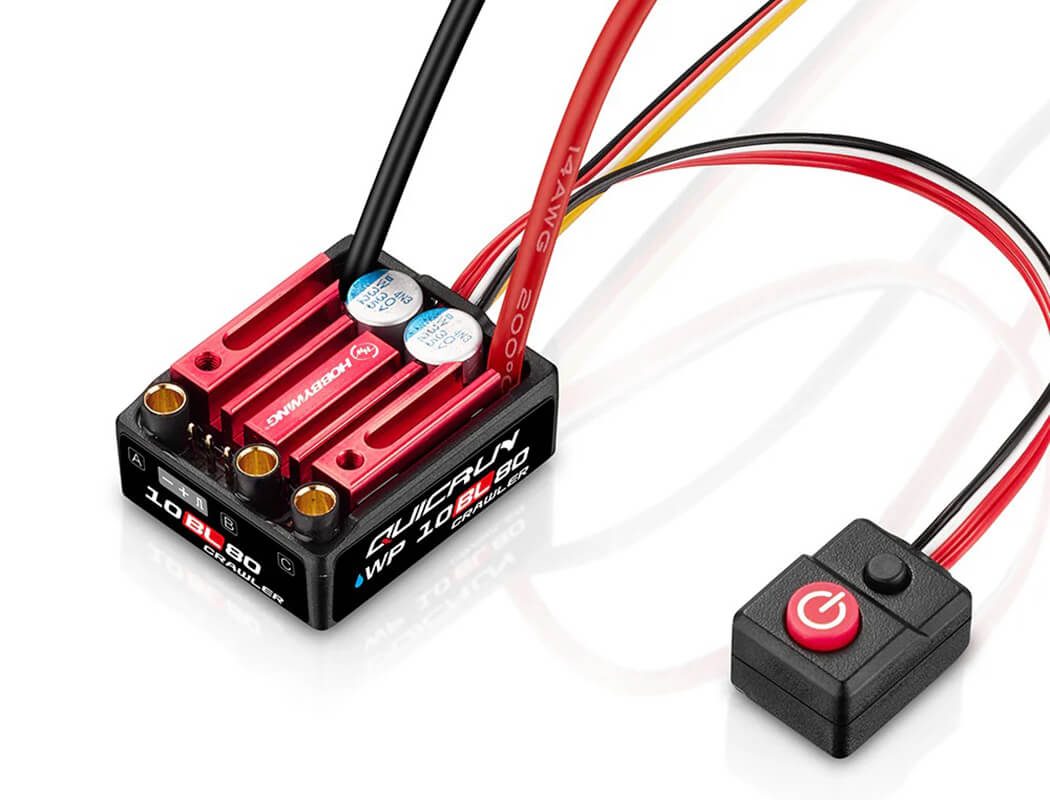

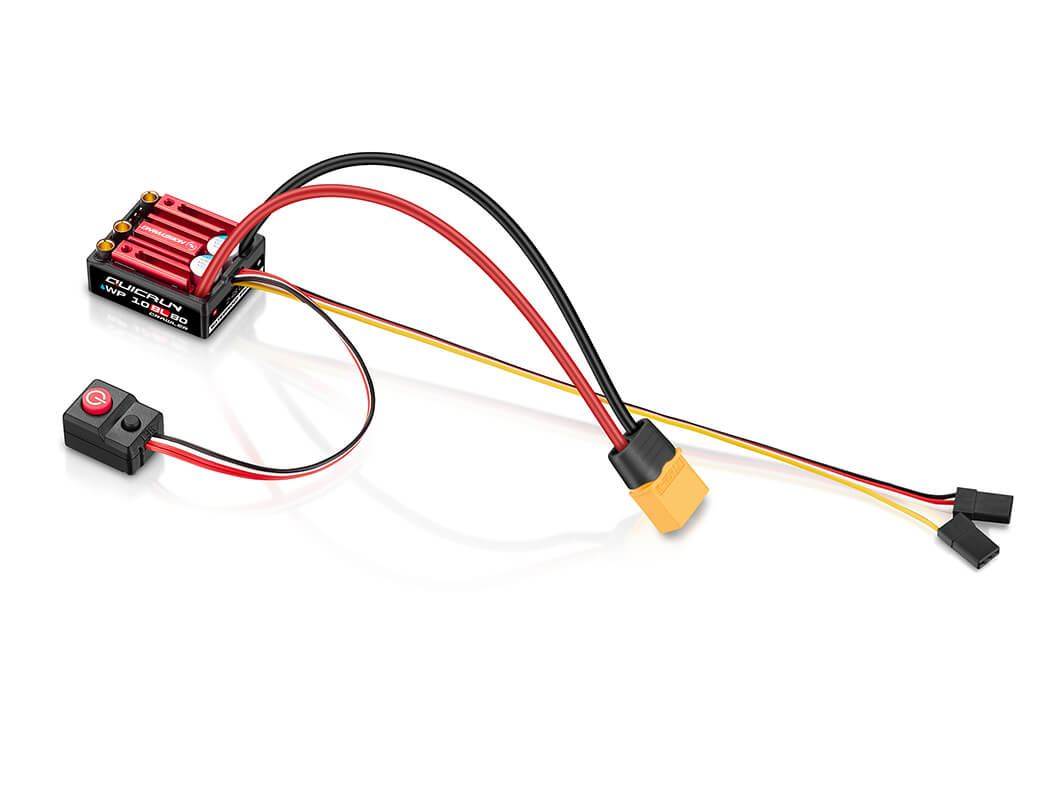

The Hobbywing QUICRUN WP 10BL80 is a professional-grade waterproof brushless ESC designed specifically for 1/10th scale crawlers. With 80A continuous current and advanced programming options, this ESC delivers reliable performance in the most demanding off-road conditions.
Key Features
- 80A Continuous Current: 240A peak for powerful acceleration
- Waterproof Design: Fully sealed for all-weather operation
- 2-4S LiPo Compatible: Versatile power options
- Adjustable BEC: 6V/7.4V/8.4V @ 5A output
- Multiple Programming Options: SET button, LED Program Box, LCD G2 Program Box, LCD PRO
- Compact Design: 36×30×15.5mm, only 47.8g
Technical Specifications
Power & Current
- Continuous Current: 80A
- Peak Current: 240A
- Input Voltage: 2-4S LiPo
- BEC Output: 6V/7.4V/8.4V, 5A
Wiring & Connectors
- Input Wires: Black 14AWG 175mm, Red 14AWG 175mm
- Input Connector: XT60
- Output Connector: 3.5mm Gold (female)
Programming
- SET Button: Supported
- LED Program Box: Supported
- LCD G2 Program Box: Supported
- LCD PRO: Supported
- OTA Programmer: Not Supported
- Independent Program Port: Yes
Size & Weight
- Dimensions: 36×30×15.5mm
- Weight: 47.8g (including wires & connectors)
Compatible Motors & Applications
Perfect for 1/10th scale crawlers with sensorless brushless motors including Hobbywing 3530SL outrunner motors, as well as 540 and 555 brushed motors.
Product Details
- Product Number: 30108002
- Type: Scale Brushless ESC
- Sensorless/Sensored: Sensorless
- Waterproof Rating: Fully waterproof
