Hobbywing QuicRun 2435 4500KV G3 Motor 1/16 & 1/18 (2.0mm Shaft)
In store availability:
Pickup available at Wises Road Store
Usually ready in 1 hour
Hobbywing QuicRun 2435 4500KV G3 Motor 1/16 & 1/18 (2.0mm Shaft)
Wises Road Store
4/47 Wises Road
Buderim QLD 4556
Australia
Tax included. Shipping calculated at checkout

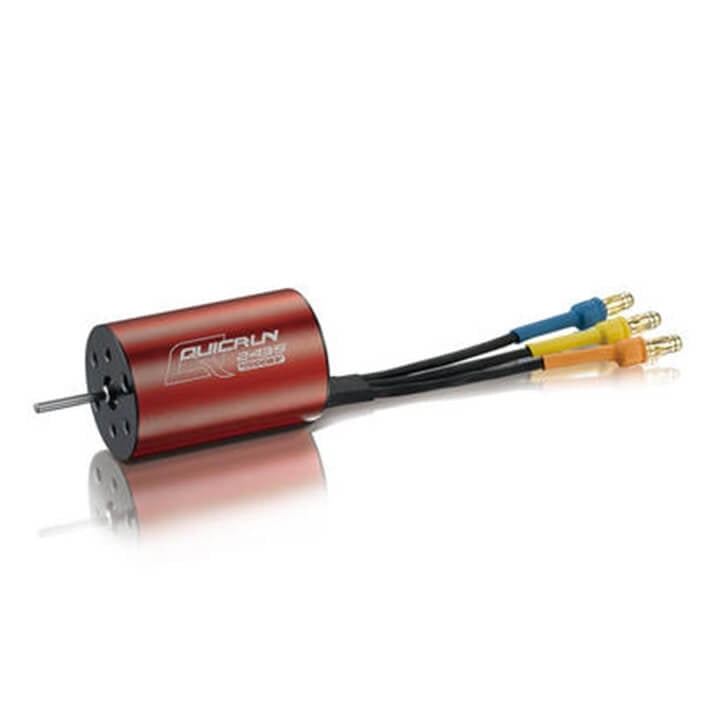

Hobbywing QuicRun 2435 4500KV G3 Brushless Motor - 1/16 & 1/18 Scale
High-performance brushless motor designed for 1/16 and 1/18 scale RC vehicles. The QuicRun 2435 G3 features an upgraded 4-pole rotor design that delivers increased torque and power output while maintaining excellent efficiency and low operating temperatures.
Key Features
- 4500KV rating for high-speed performance
- Upgraded 4-pole rotor design for increased torque and power
- 4% improvement in output power and efficiency over G2
- Lower operating temperatures under the same load
- 0.2mm thick silicon steel laminations for durability
- High-strength explosion-proof rotor
- High-temperature resistant coil windings
- High-precision, high-quality bearings
- 2.0mm shaft diameter for 1/16 and 1/18 scale compatibility
G3 Performance Improvements
- More than 4% increase in output power and efficiency vs G2
- Effectively reduced motor temperature under load
- Enhanced torque delivery from 4-pole rotor design
- Superior durability with premium materials
Compatible Applications
- 1/16 scale RC cars and trucks
- 1/18 scale RC vehicles
- High-speed bashers and racers
- Vehicles requiring 2.0mm shaft motors
- 2S LiPo battery setups
Technical Specifications
- Scale: 1/16 & 1/18
- Motor Type: Sensorless brushless
- Pole Count: 4-pole
- KV Rating: 4500KV
- Battery Support: 2S LiPo
- No-load Current: 2.1A
- Outer Diameter: 24.0mm (0.94")
- Length: 36.0mm (1.42")
- Shaft Diameter: 2.0mm (0.08")
- Shaft Length: 12.0mm (0.47")
- Weight: 61.2g
- Timing: Fixed
Construction Quality
- 0.2mm silicon steel laminations for maximum efficiency
- Explosion-proof rotor design for safety
- High-temperature resistant coil for reliability
- Precision bearings for smooth, long-lasting operation
What's Included
- 1x QuicRun 2435 4500KV G3 motor
- Motor mounting hardware
Part Number: HW30404004
Brand: Hobbywing
Series: QuicRun 2435 G3
