ProTek RC Lightweight Steel 48P Pinion Gear
These ProTek RC pinion gears are CNC machined from hardened steel and feature a 48-pitch tooth profile with a 3.17mm bore. Select your required tooth count from the 18T to 26T options on this product. Check your spur gear pitch, motor shaft diameter and vehicle gearing requirements before choosing a pinion.
Key Features
- CNC-machined hardened steel construction.
- 48P tooth profile and 3.17mm bore.
- Back-side machining reduces weight on gears with 18 teeth or more.

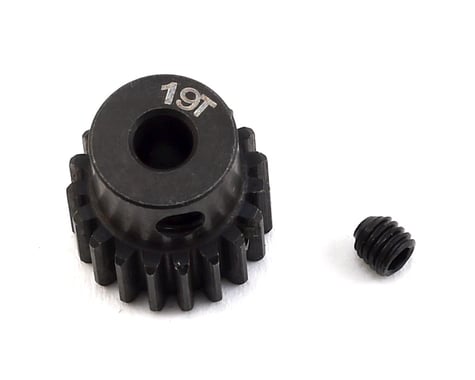

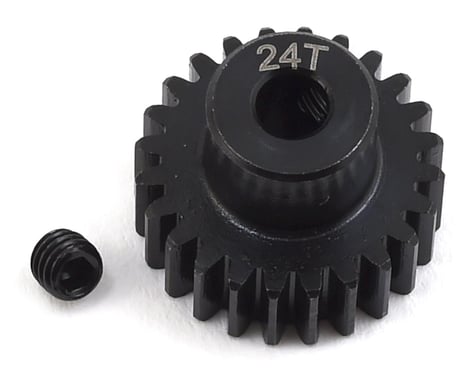

- Engraved tooth count for identification.
- Setscrew included with each gear.
- Nine tooth-count options on this product: 18T through 26T.
Specifications
| Brand | ProTek RC |
|---|---|
| Product type | Pinion gear |
| Material | Hardened steel |
| Manufacturing | CNC machined |
| Gear pitch | 48P |
| Bore diameter | 3.17mm |
| Tooth-count options | 18T, 19T, 20T, 21T, 22T, 23T, 24T, 25T, 26T |

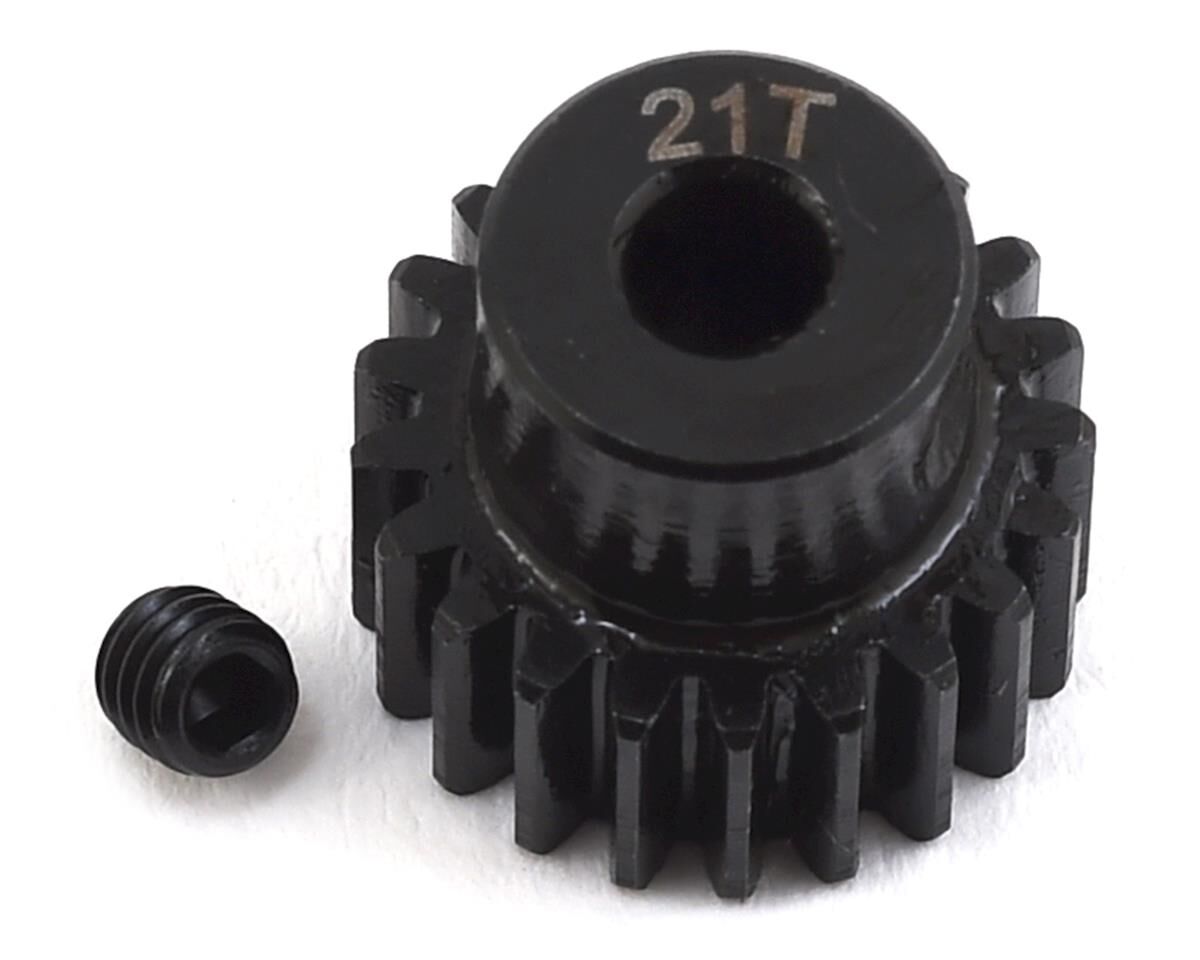

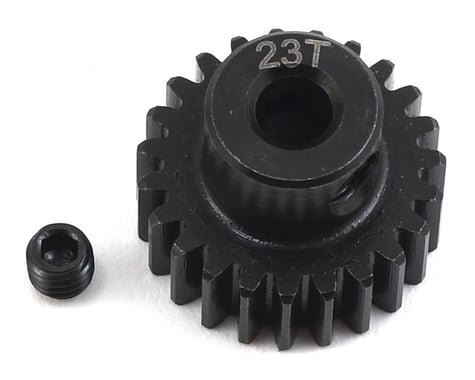

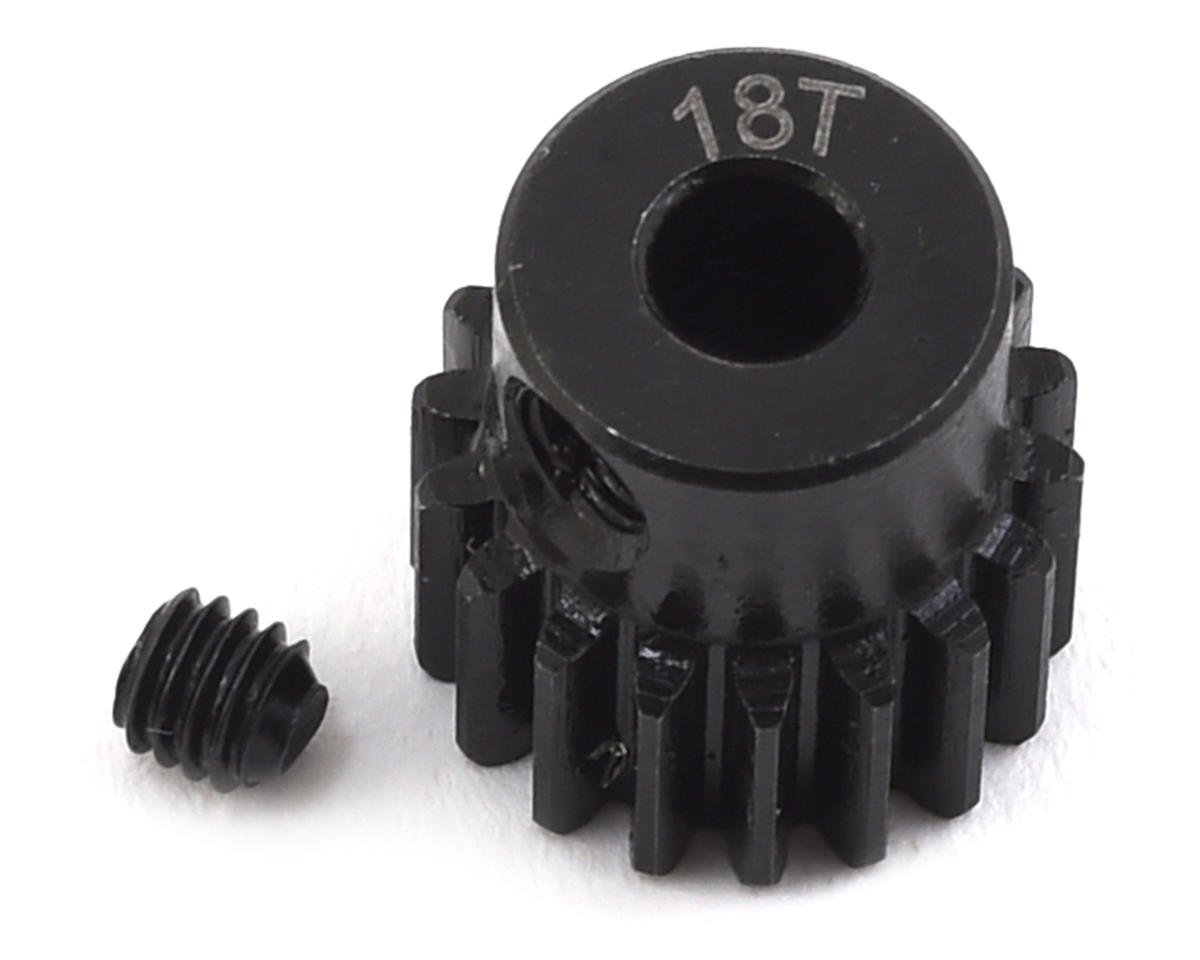

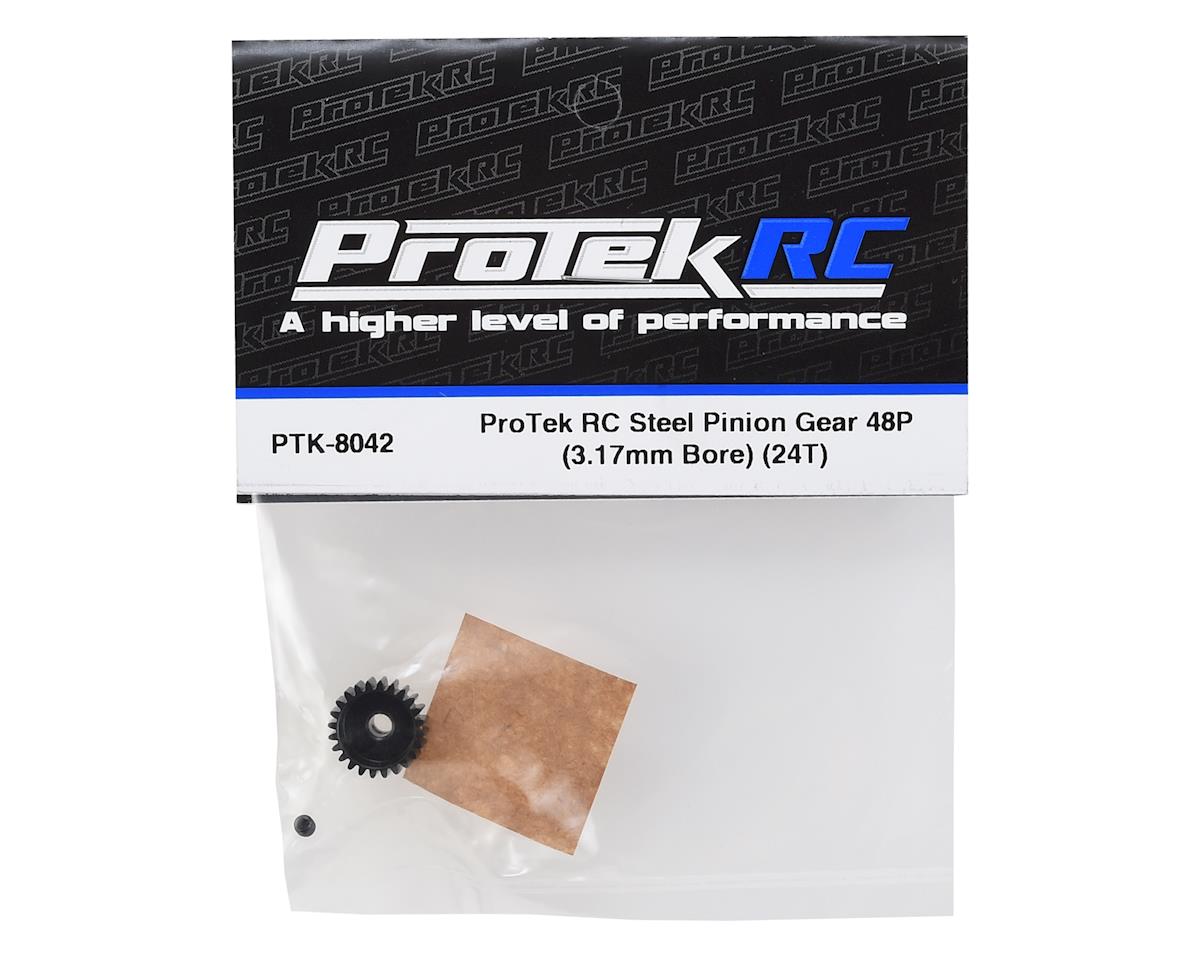

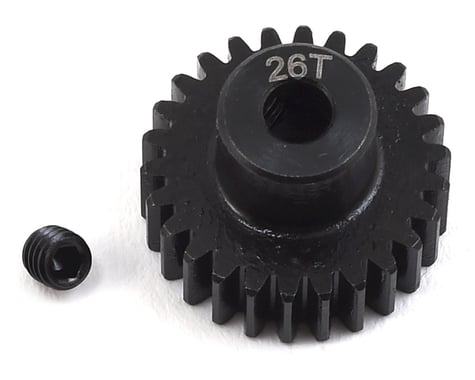

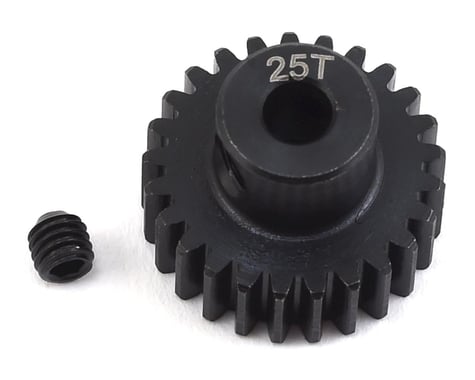

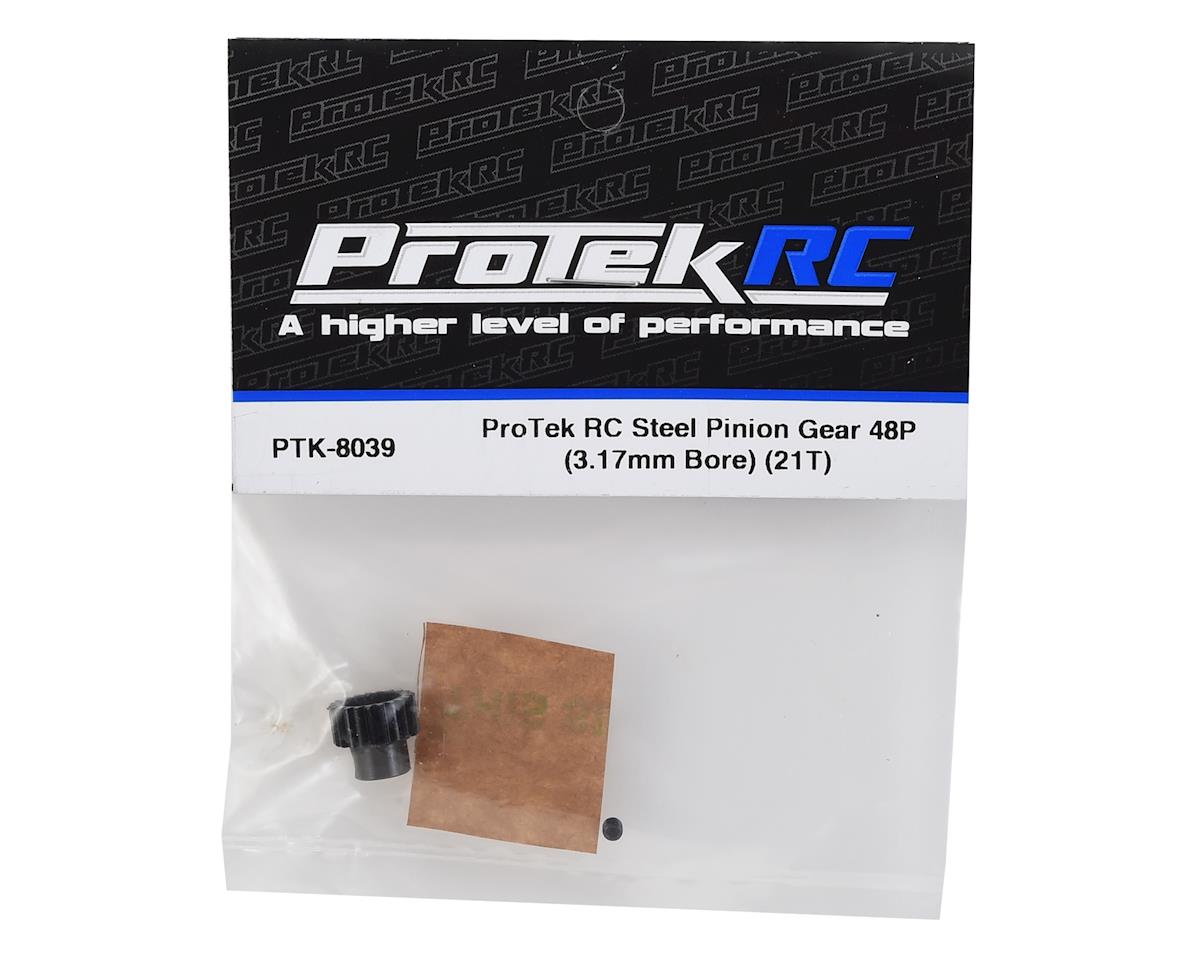

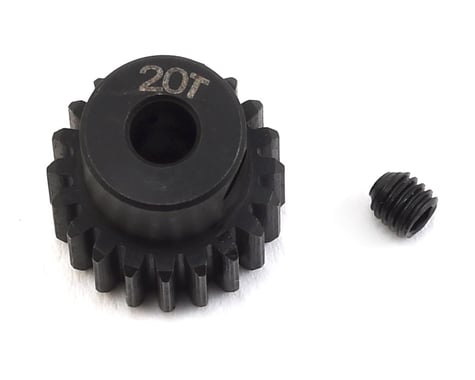

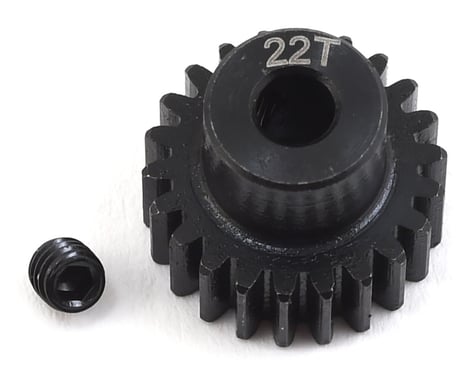

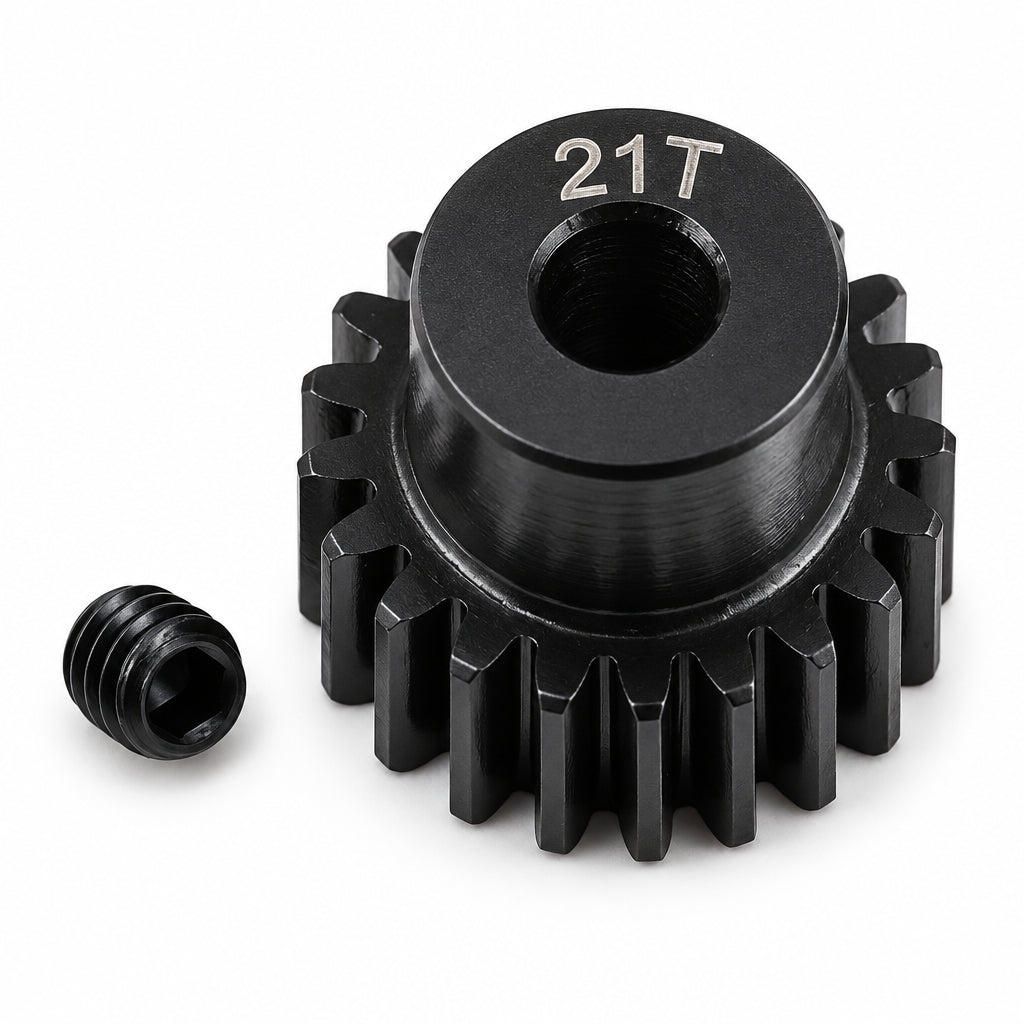

| Variant part numbers | 18T: PTK-8036; 19T: PTK-8037; 20T: PTK-8038; 21T: PTK-8039; 22T: PTK-8040; 23T: PTK-8041; 24T: PTK-8042; 25T: PTK-8043; 26T: PTK-8044 |
| Identification | Engraved tooth count |
The supplied product information describes a wider manufacturer range of 12-41 teeth. This listing offers only the 18-26T selections shown above.

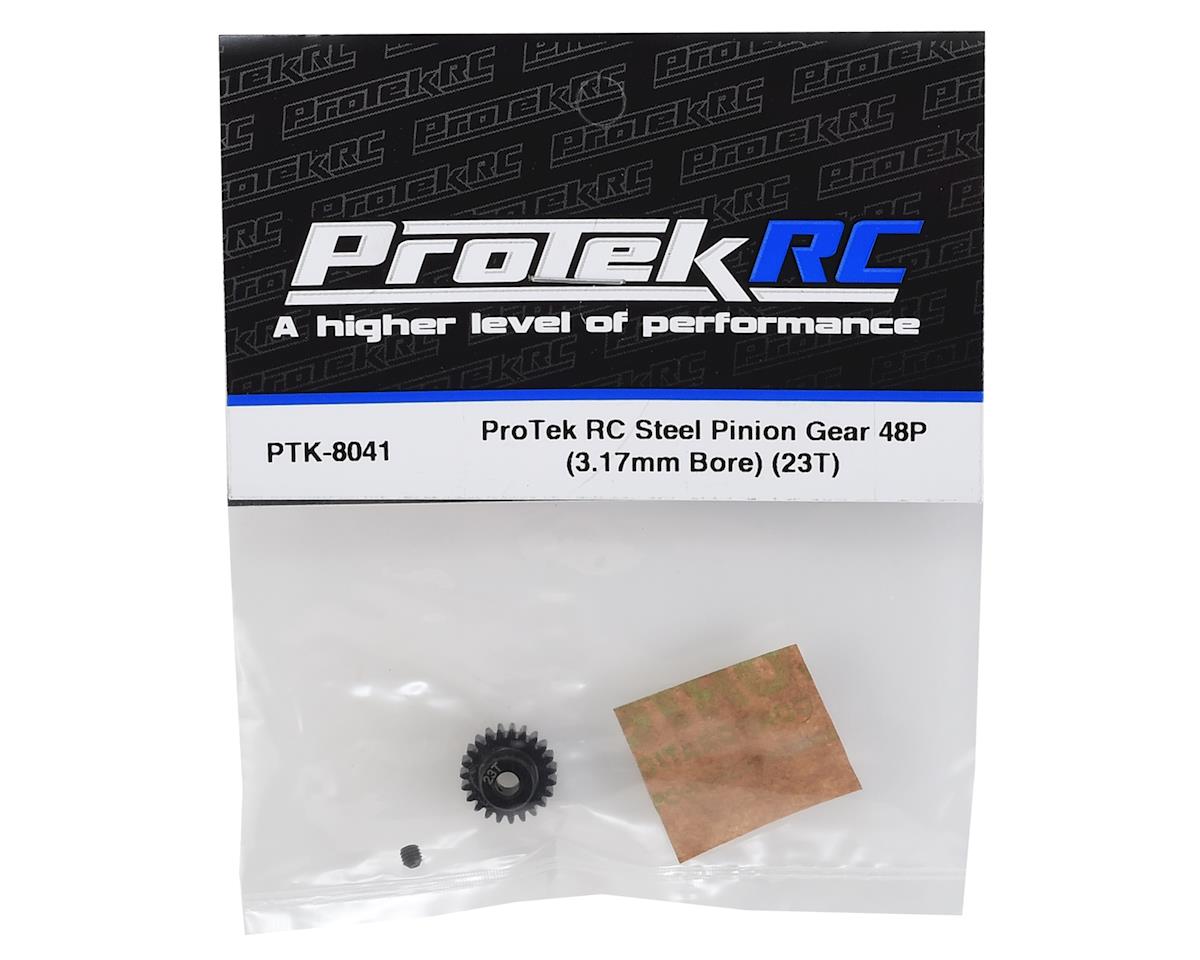

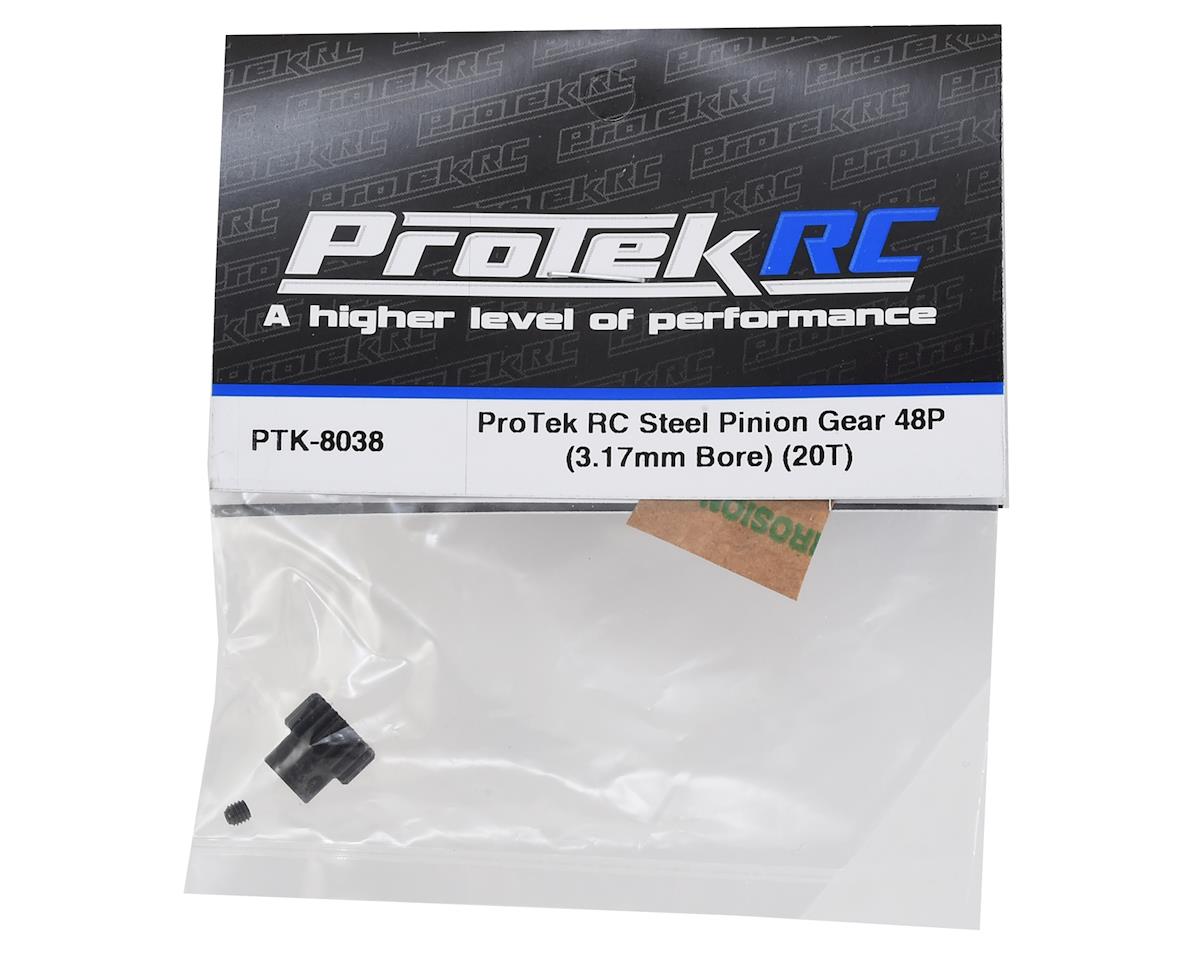

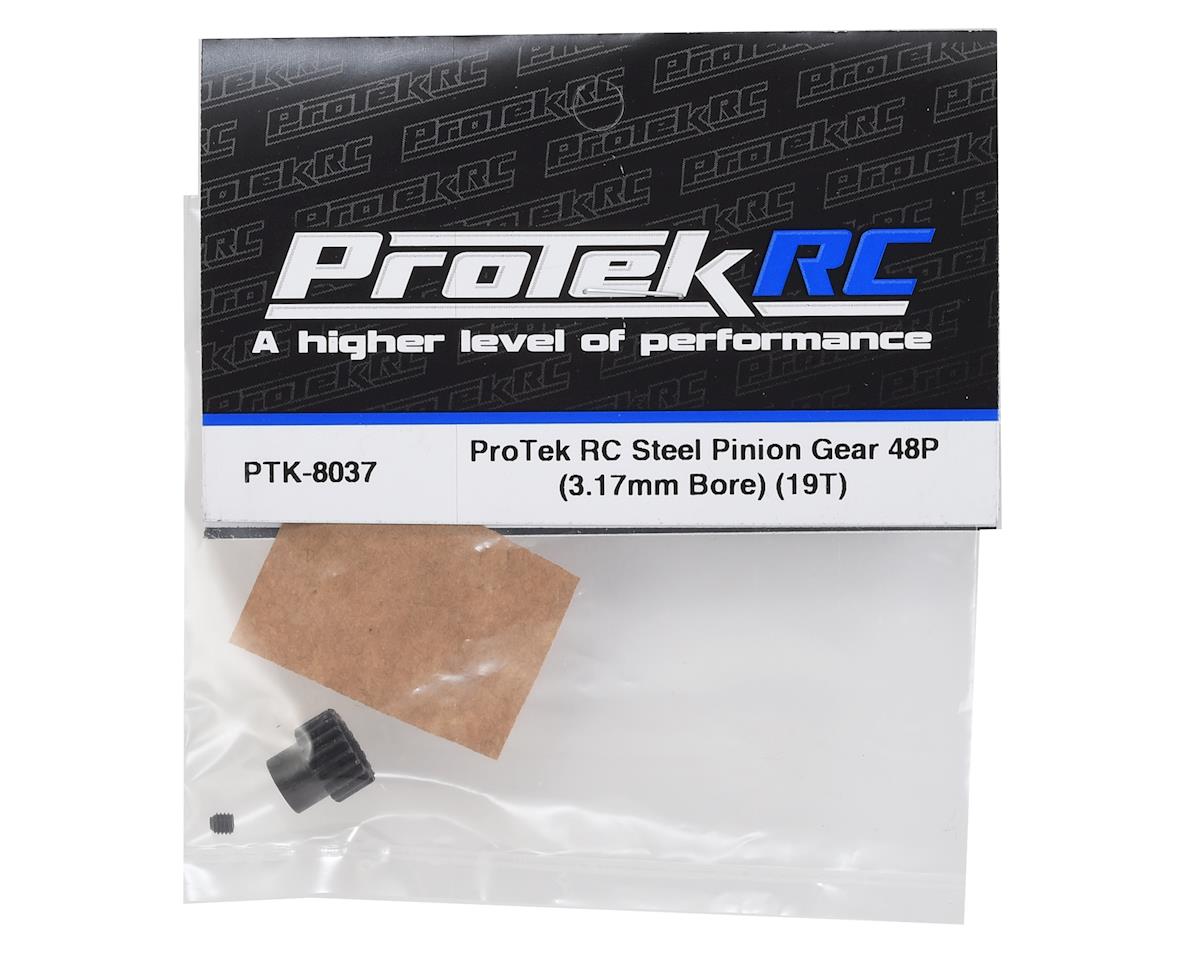

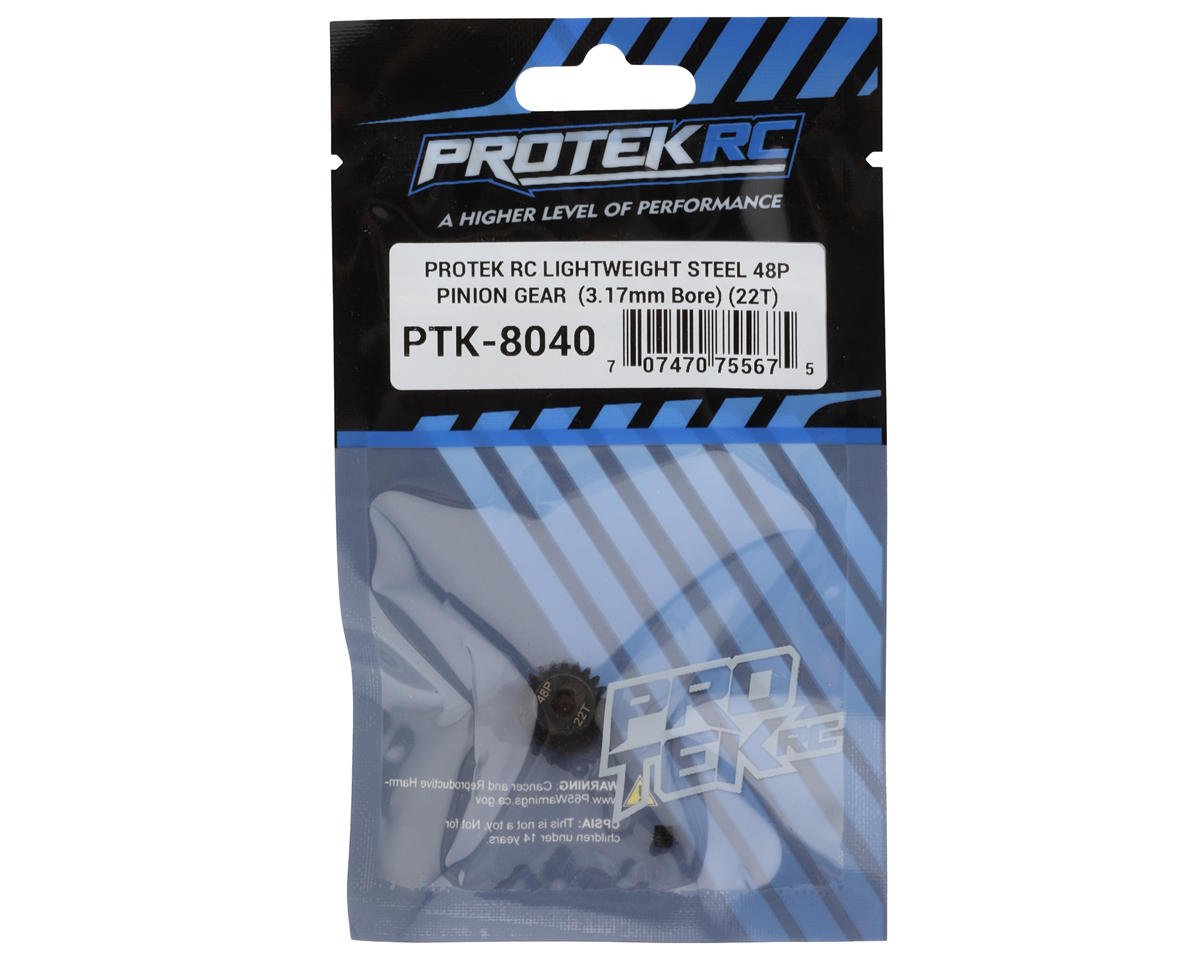

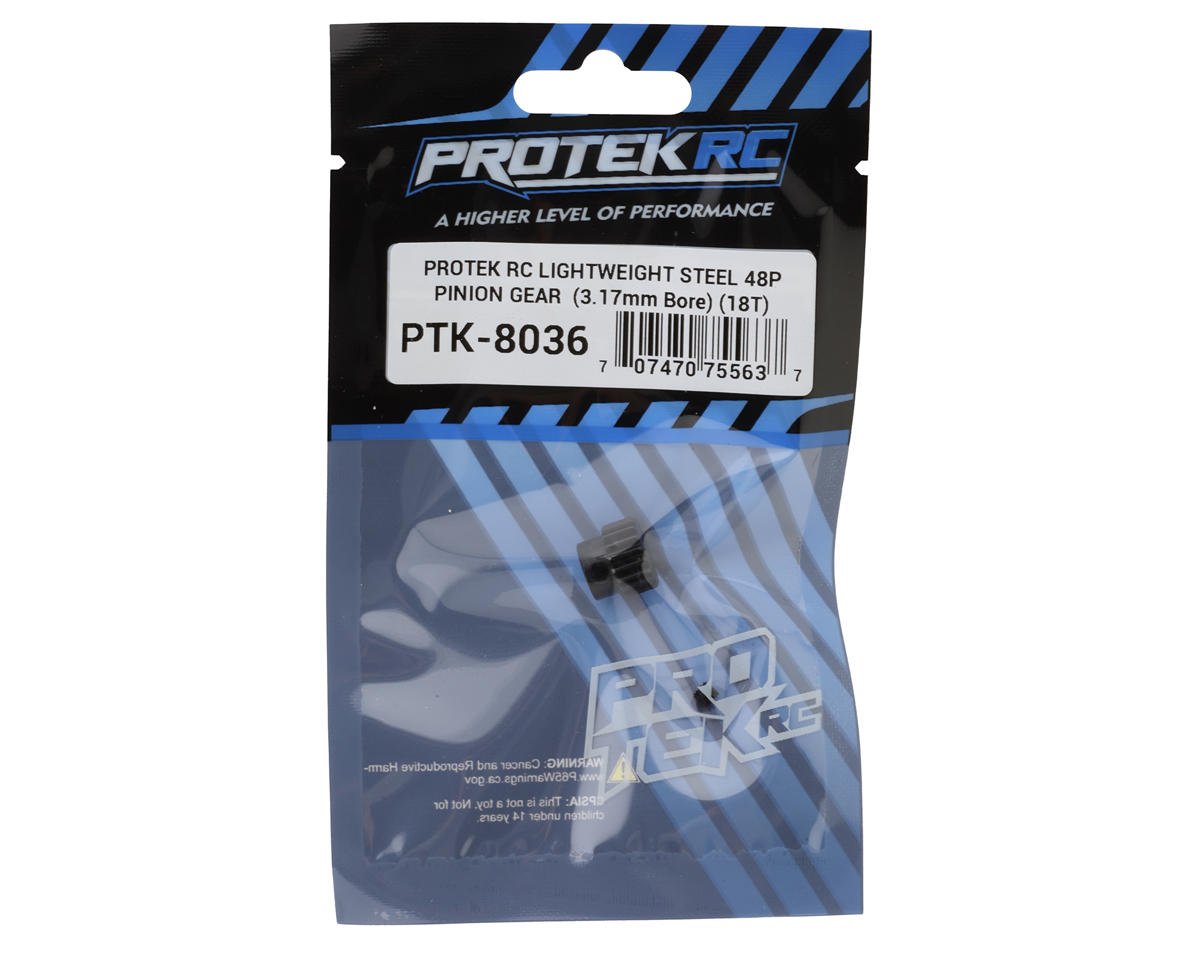

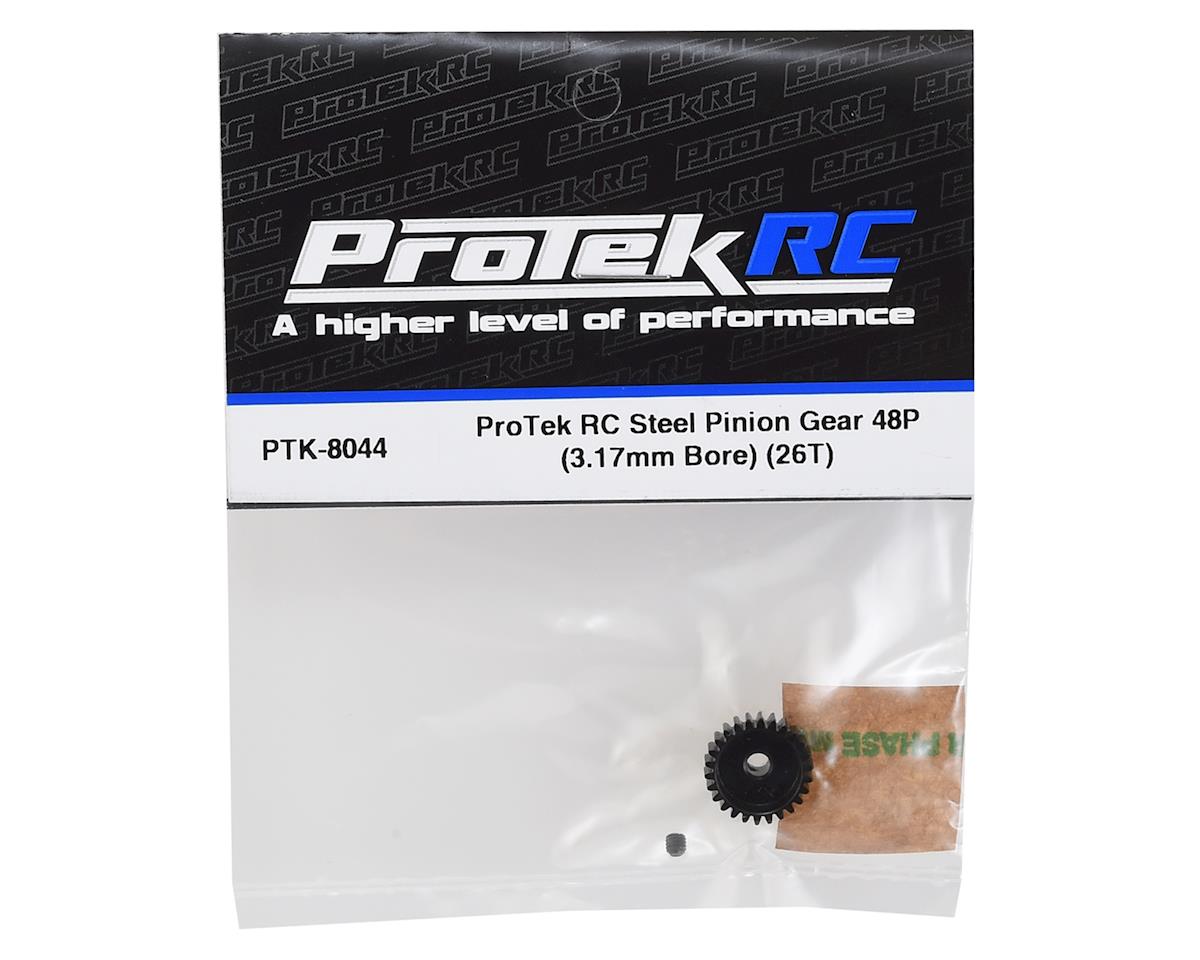

Package Includes
- 1 x ProTek RC lightweight steel 48P pinion gear in your selected tooth count.
- 1 x setscrew.
