Power HD Standard DC Motor Copper Gear Servo 17.0 kg
In store availability:
Pickup available at Wises Road Store
Usually ready in 1 hour
Power HD Standard DC Motor Copper Gear Servo 17.0 kg
Wises Road Store
4/47 Wises Road
Buderim QLD 4556
Australia
Tax included. Shipping calculated at checkout
Power HD 1501MG High-Performance 17kg Servo
Premium standard-size servo featuring copper gears and dual ball bearings for exceptional durability and precision control in your RC vehicles and hobby projects.
Key Features:
- High torque output: 17.0 kg-cm at 6.0V
- Fast response: 0.14 second speed

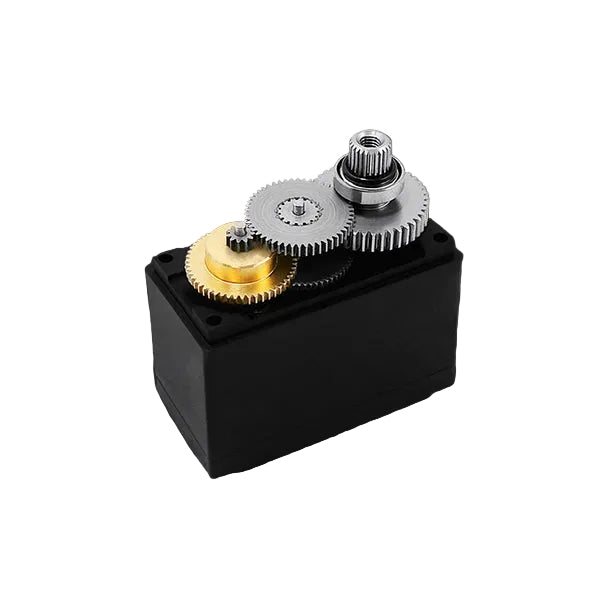

- Durable copper gear construction
- Dual ball bearing design for smooth operation
- Compatible with 4.8V to 6.0V systems
Model: PHD-1501MG
Technical Specifications
| Performance Data | |
| Torque (4.8V) | 15.5 kg-cm (215.3 oz/in) |
| Torque (6.0V) | 17.0 kg-cm (236.1 oz/in) |
| Speed | 0.16 sec (4.8V) ~ 0.14 sec (6.0V) |
| Operating Voltage | 4.8 ~ 6.0 DC Volts |
| Weight | 63.0 g (2.22 oz) |
| Bearing Type | Ball Bearing x 2 |
| Motor Type | DC Motor |
| Gear Type | Copper |
| Operating Temperature | -20°C ~ 60°C |
| Working Frequency | 1520 μs / 50Hz |
| Dimensions | 40.7 x 20.5 x 39.5 mm (1.60 x 0.81 x 1.56 in) |
A note on product warranties.
Please note: RC models are warranted for manufacture defects only. This hobby involves moving models which often suffer from damage when they are put under undue strain or when they collide with objects or are subjected to water. Techtonic Hobbies cannot be held responsible for items which are damaged through use, and as such please understand that no mechanical warranty of any kind is offered on items once they have been used if the item has suffered damage from any of the conditions listed above. Please choose carefully, paying special attention to the type of use and the age of the user of your new model, RC models are designed to be tough, but everything has its limits and we cannot be held responsible for damages that result from when those limits are exceeded. We have no way of telling what a model has been subjected to once it leaves the store / warehouse. Your consumer rights are not affected.
