Kyosho ULTIMA SB Dune Master 34312 1/10 2WD Buggy Kit
Kyosho ULTIMA SB Dune Master 34312 1/10 2WD Buggy Kit
The Kyosho ULTIMA SB Dune Master combines neo-vintage Baja-style bodywork with a rear-motor 2WD chassis derived from the race-proven ULTIMA RB5. Its resin chassis, adjustable suspension and rear-wheel traction suit off-road driving on loose surfaces as well as RC circuits. A roll cage, driver figure and side mirrors add scale character. This is an assembly kit with an unpainted clear body; electronics, battery and other running equipment are required separately.
Key Features
- ULTIMA SB resin chassis based on the ULTIMA RB5, with moderate flex and space for general-purpose RC equipment.
- Rear-mounted motor layout promotes rear tyre traction and controllable handling on low-grip surfaces.
- New Baja/basher-style body with decals for a single-colour finish.
- Front fog-light fittings accept optional LED light units, sold separately.
- Included side mirrors and cockpit driver figure.
- Rear resin roll cage with provision for a vintage-style wing.
- Micro-pin spike tyres front and rear; wider front tyres than the ULTIMA SB Dirt Master balance front and rear grip.
- Rear aero-dish wheels shared with the Dirt Cross 4WD and dedicated Dune Master front wheels.
- Double-wishbone suspension with resin oil dampers and dial-adjustable spring tension for ride-height tuning.
- Suspension and steering turnbuckles allow length changes without removal.
- Servo saver helps protect the steering servo during impacts.
- Standard slipper clutch protects gears under excessive loads and allows driving-characteristic adjustment.
- Full ball bearings improve drivetrain efficiency.
- Rear gear differential is straightforward to assemble and maintain; optional oil-filled configuration and ULTIMA-series ball differential offer tuning choices.
- Predominantly 2mm hex-head tapping screws simplify assembly and maintenance.
- Optional ULTIMA-series parts and racing springs provide further tuning opportunities.
Specifications
| Brand | Kyosho |
|---|---|
| Model / part number | ULTIMA SB Dune Master / 34312 (KYO-34312) |
| Scale | 1/10 |
| Power / drive | Electric / 2WD rear-wheel drive |
| Motor layout | Rear-mounted |
| Chassis | Resin, ULTIMA RB5-derived |
| Suspension | Front and rear double wishbone |
| Dampers | Resin oil dampers, adjustable spring tension |
| Differential | Rear gear differential |
| Pinion gear | 24T included |
| Body | Clear polycarbonate, unpainted |
| Assembly | Kit, assembly required |
| Battery accommodation | Designed for different 1/10 battery formats, including straight packs; confirm pack dimensions and electronics compatibility |
Package Includes
- Complete assembly kit
- Clear polycarbonate body
- Window masking sheet
- Decals
- Side mirrors and driver figure
- Rear roll cage
- Tyres, tyre inserts and wheels
- 24T pinion gear
- Cross wrench
- 1.5mm and 2.0mm L-shaped hex wrenches
- Grease
Required to Run (Sold Separately)
- Transmitter and receiver
- Steering servo
- Motor
- ESC compatible with the motor and battery
- Damper oil
- Suitable drive battery
- Compatible battery charger
- Body paint
- Assembly tools
Technical Details and Original Photos

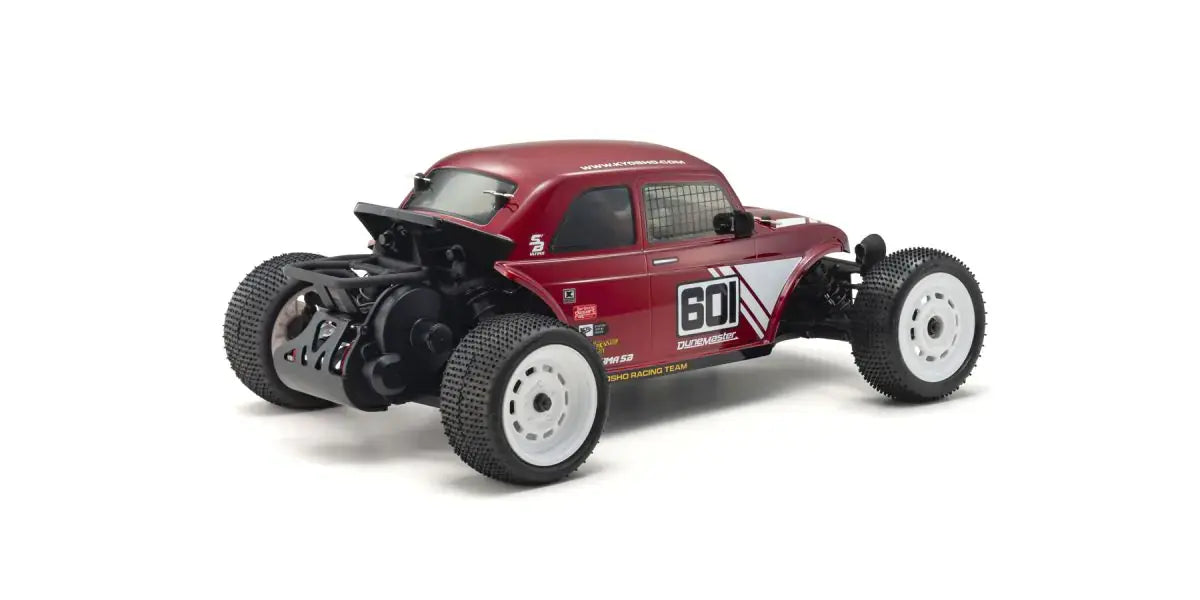

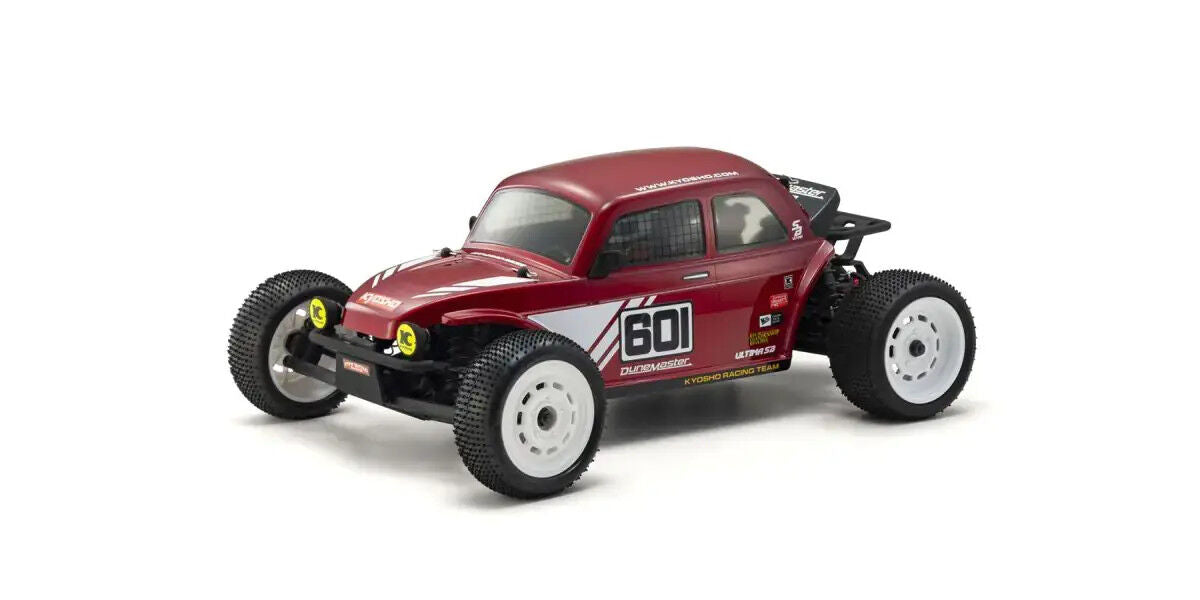

The newly designed body takes inspiration from full-size Baja and basher vehicles, offering a different character from an open racing buggy.
Front fog-light fittings can accept optional LED units. Side mirrors and a driver figure are included.
The moulded resin roll cage attaches at the rear and provides a mounting option for a vintage-style wing.
Aero-dish rear wheels match those used on the Dirt Cross 4WD. Dedicated front wheels complement the Dune Master body.
Micro-pin spike tyres provide front and rear grip. Wider front tyres than the ULTIMA SB Dirt Master contribute to the grip balance.

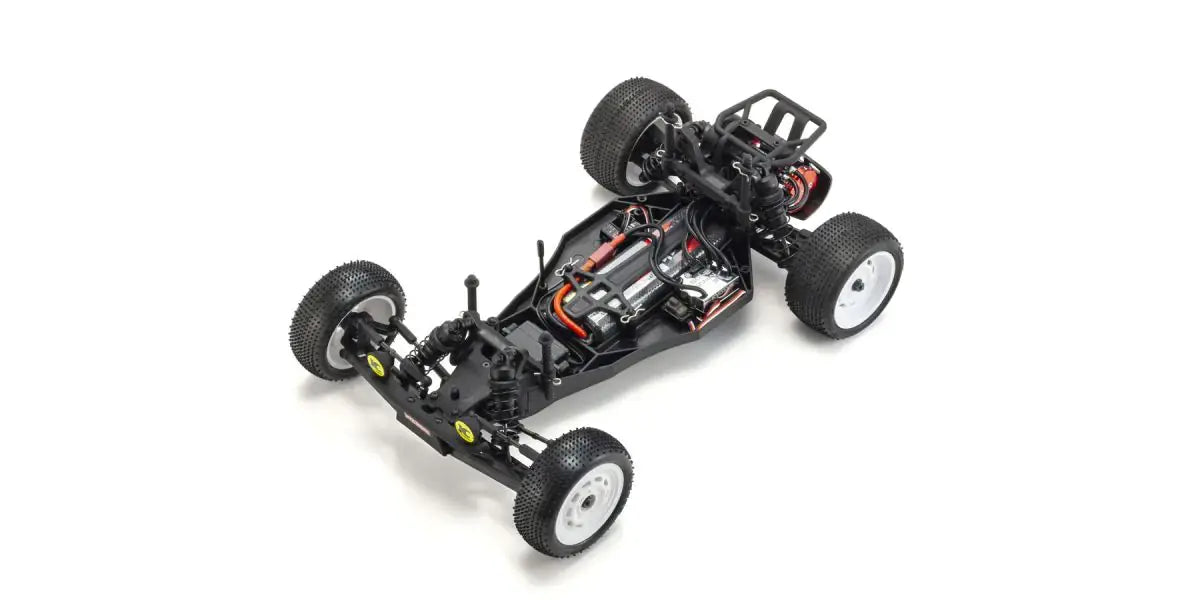

The RB5-derived rear-wheel-drive chassis accommodates different 1/10 battery formats, including general-purpose straight packs.
Resin oil dampers absorb surface impacts. Dial-adjustable spring tension changes ride height, and racing springs provide further tuning choices.
The rear gear differential supports smooth cornering and straightforward maintenance. Separately purchased oil enables an oil-filled configuration, while an optional ULTIMA-series ball differential offers another circuit-driving setup.
2mm hex-head tapping screws are used extensively for fastening plastic parts, simplifying assembly and maintenance.
