Kyosho Tomahawk 30646 '85 World Championship Spec Buggy Kit
The Kyosho Tomahawk '85 World Championship Spec is a 1/10 scale, 2WD electric racing buggy kit that recreates the Kyosho Works Team model entered in the inaugural 1985 IFMAR Electric Off-Road World Championship in the United States. The 20th release in the Kyosho Vintage Series, this limited-edition kit builds on the Tomahawk re-released in 2015 with reinforced chassis components, a ball differential, a slipper clutch and distinctive peppermint green wheels and rear wing. Assembly, painting and separately purchased radio equipment, motor, ESC, battery and charger are required.
Key Features
- Works-spec reproduction of the Tomahawk that competed in the 1985 1/10 electric buggy World Championship.
- Hollow stainless steel square-tube ladder-frame chassis rails.
- Gunmetal-finished A7075 duralumin rear suspension plate and gearbox plate.
- 3mm black FRP front and rear shock stays.
- Aluminium oil dampers with red-cased, dial-type spring tension adjustment.
- Steel front caster locks with integrated upper-arm ball pivots and CNC-machined aluminium front arm shaft blocks.
- Ball differential, universal swing shafts and a slipper clutch suitable for brushless motor applications.
- New rear wheel hubs engage the wheel ribs to improve mounting rigidity and resist loosening.
- Low-mounted FRP servo plate with a forward servo position for revised weight distribution.
- Mounting holes for the Kyosho Le Mans 240S ESC.
- Peppermint green front and rear wheels and resin rear wing with a model-specific wing mount.
- Medium-compound front and rear tyres, revised kingpins, standard Tomahawk body shape and newly designed decals.
Specifications
| Brand | Kyosho |
|---|---|
| Model / part number | Tomahawk '85 World Championship Spec / 30646 |
| Series | Kyosho Vintage Series, 20th release |
| Scale | 1/10 |
| Vehicle type | Electric racing buggy, assembly kit |
| Drive | 2WD, rear-wheel drive |
| Main chassis rails | Hollow stainless steel square tube |
| Rear suspension / gearbox plates | A7075 duralumin, gunmetal finish |
| Shock stays | 3mm black FRP, front and rear |
| Dampers | Aluminium oil dampers with dial-type spring tension adjustment |
| Drivetrain | Ball differential, universal swing shafts and slipper clutch |
| Tyres | Medium compound, front and rear |
| Motor requirement | 540-class motor, supplied separately |
| Servo mounting dimensions (L × W × H) | 42 × 21 × 38mm |
| ESC mounting dimensions (L × W × H) | 40 × 35 × 28mm |
| Battery mounting dimensions (L × W × H) | 140 × 50 × 25mm, including cord |
Package Includes
- Chassis parts set
- Clear body
- Decals
- Hex wrench (1.5 / 2 / 2.5mm)
- Cross wrench (4 / 5 / 5.5 / 7mm)
- Shock wrench
- #300 damper oil
- Ball differential grease
- Molybdenum grease
Required to Complete
- 2-channel radio control system for cars with one servo
- Electronic speed controller (ESC)
- 540-class motor
- Driving battery
- Compatible charger
- Transmitter battery
- Paint
Technical Photographs

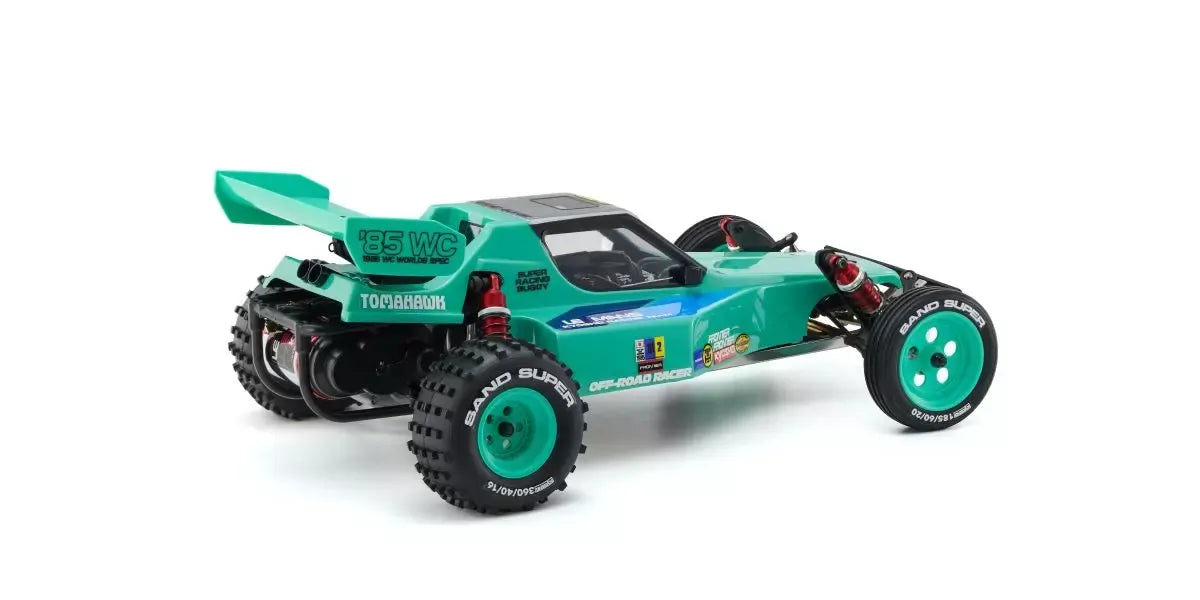

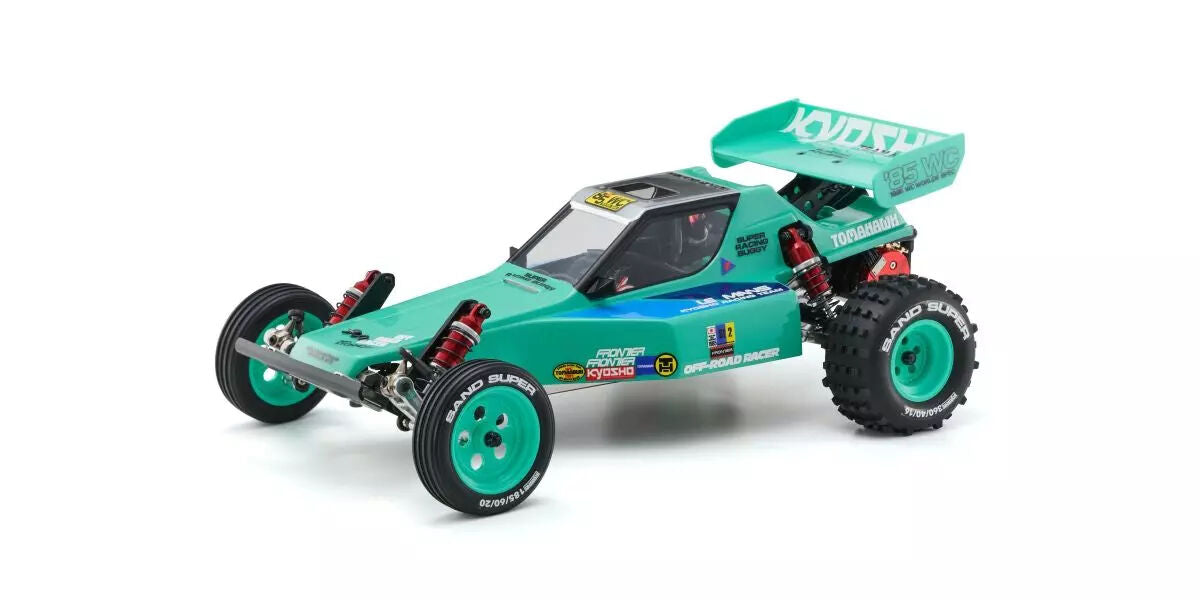

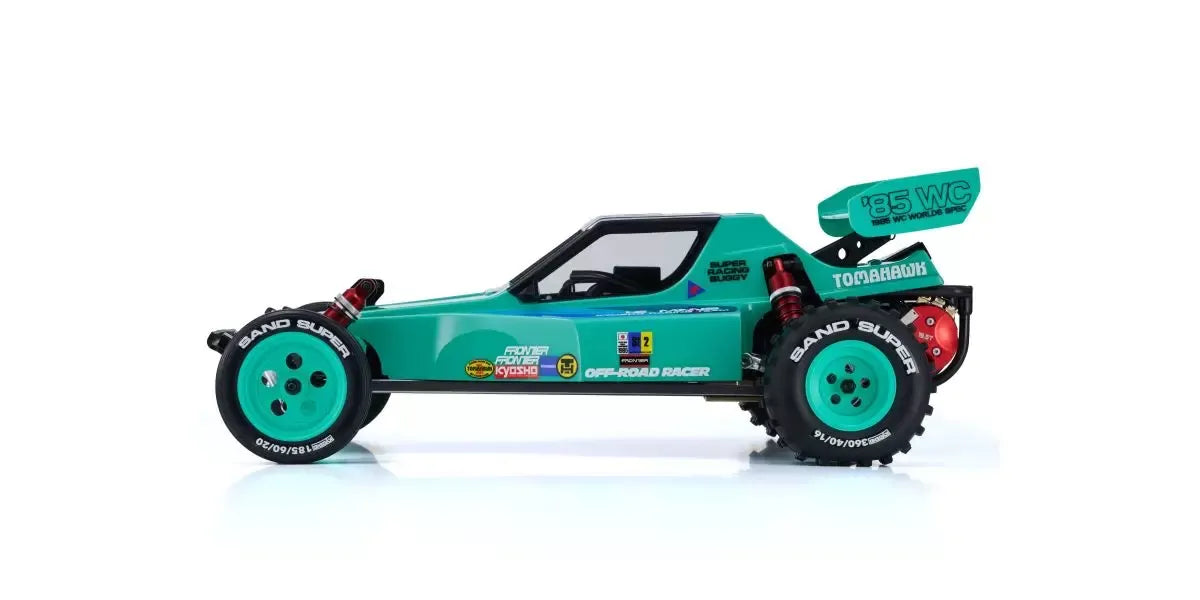

The Works-spec reproduction includes peppermint green wheels and special components throughout.

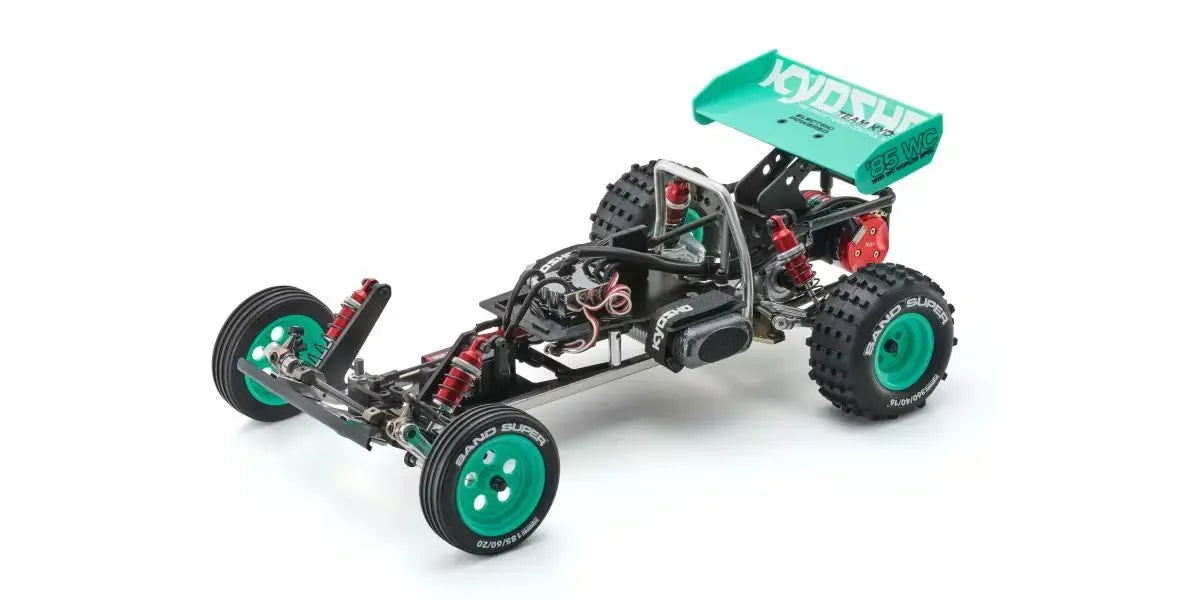

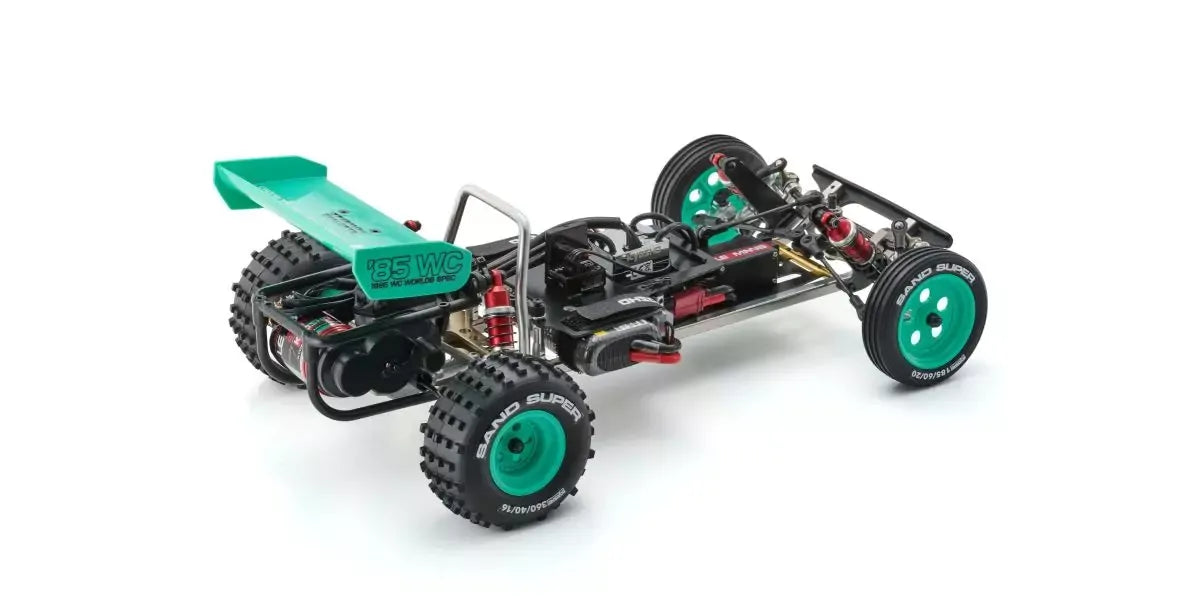

Hollow stainless steel ladder-frame rails combine with A7075 duralumin rear suspension and gearbox plates to increase chassis rigidity.
The front and rear shock stays use 3mm black FRP in place of the standard Tomahawk's aluminium parts, reflecting the 1985 competition specification.
Front and rear aluminium oil dampers feature red-cased dial-type spring tension adjustment, replacing the standard stopper arrangement.
The steel front caster lock integrates the upper-arm ball pivot. CNC-machined aluminium front arm shaft blocks further reinforce the suspension mounting.
The ball differential is supplied as standard equipment.
Redesigned rear wheel hubs engage the wheel ribs to improve mounting rigidity and help prevent loosening during driving.
The FRP servo mounting plate lowers the servo and moves it forward compared with the standard Tomahawk arrangement, revising front-to-rear weight distribution.
A peppermint green resin rear wing and newly designed wing mount distinguish the World Championship specification from the standard Tomahawk.
