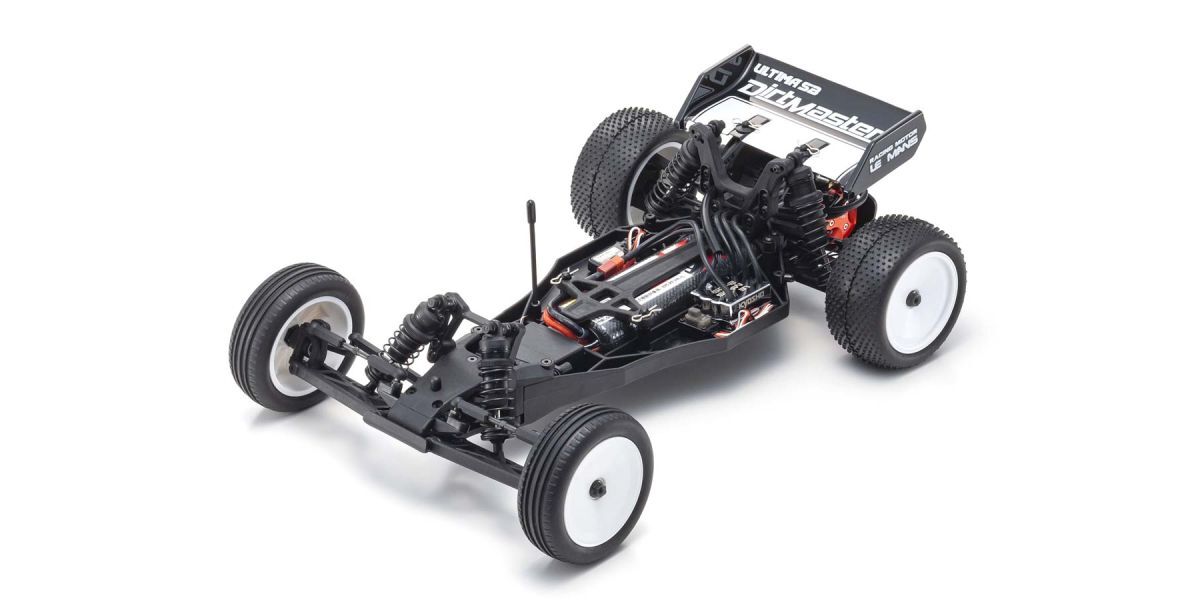

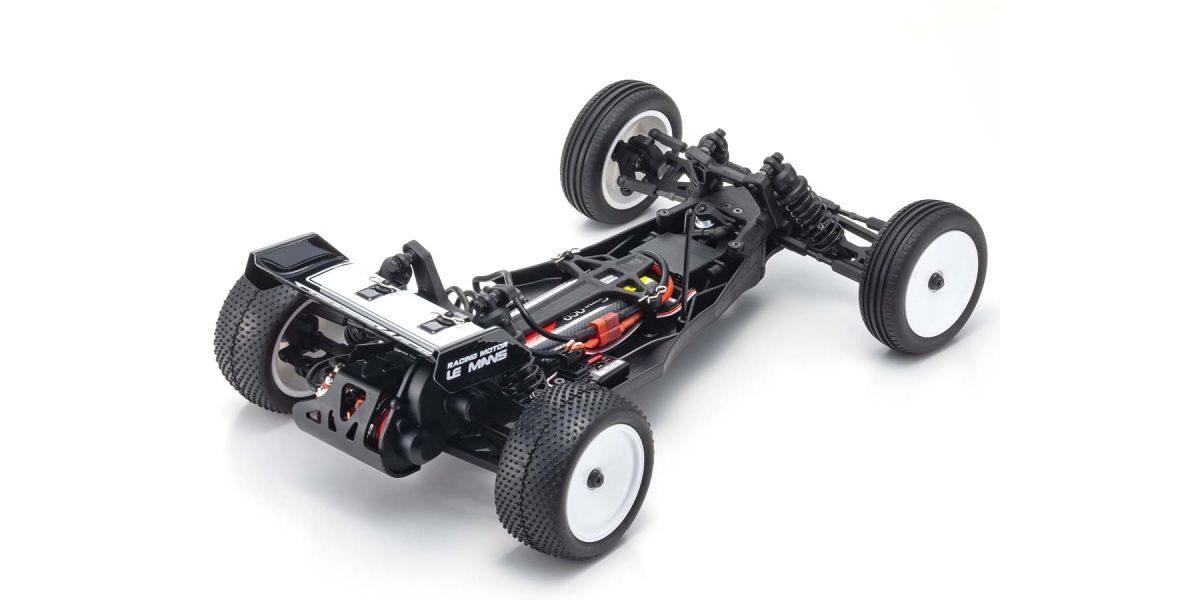

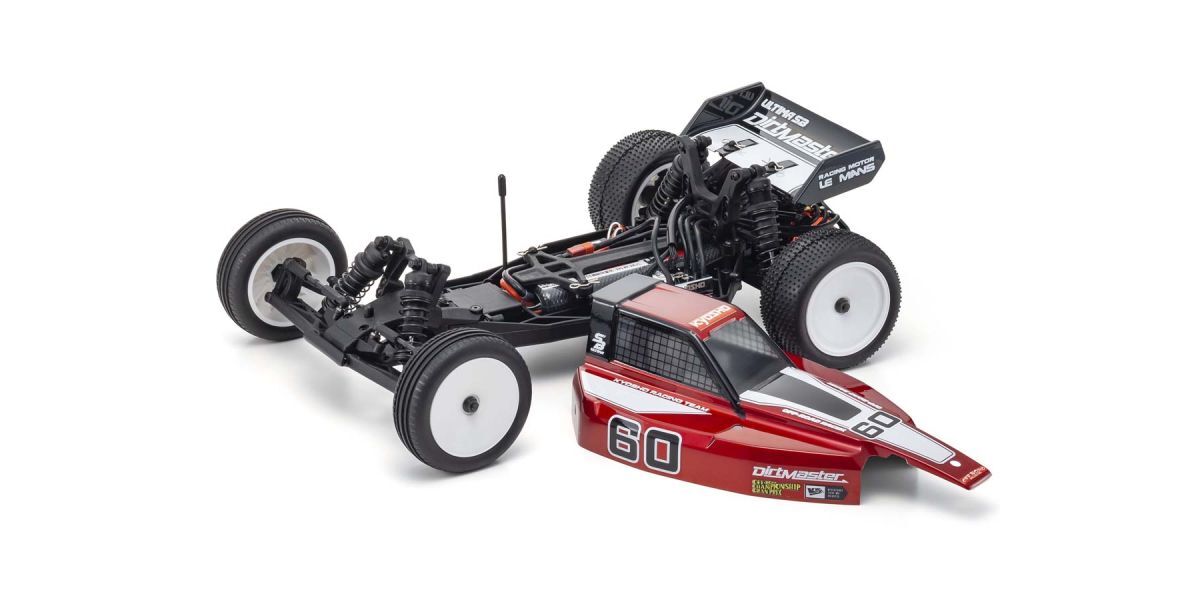

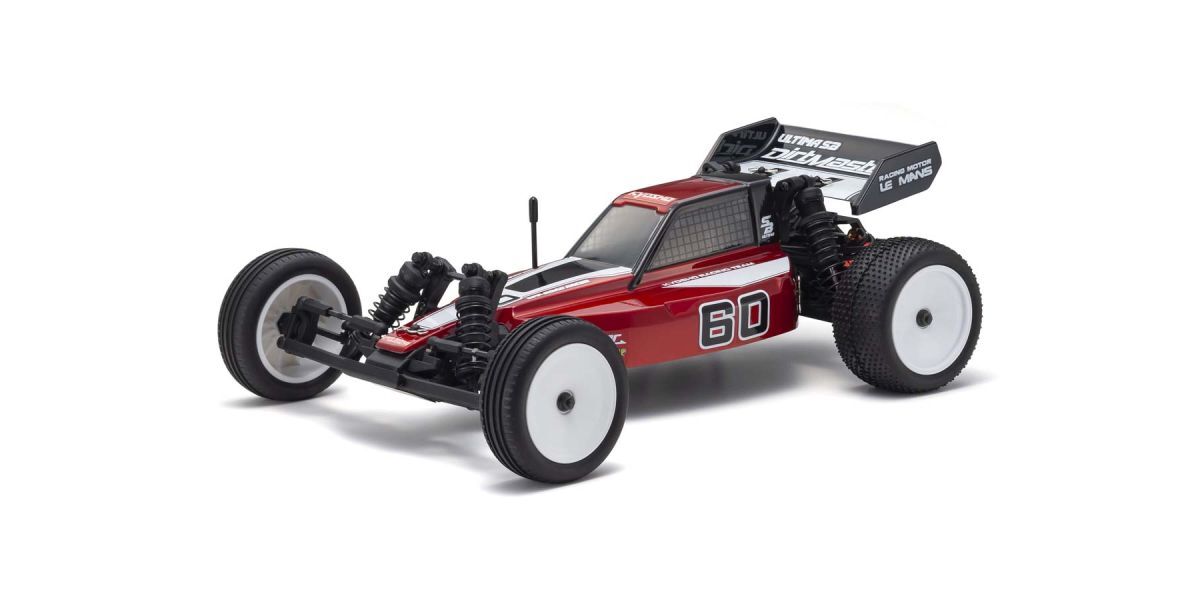

Kyosho Dirt Master 34311 1/10 2WD Electric Racing Buggy Kit
Kyosho Dirt Master 34311 1/10 2WD Electric Racing Buggy Kit
The Kyosho Dirt Master combines neo-retro buggy styling with a modern resin chassis and rear-mounted motor layout. Designed for off-road driving from loose-grip open areas to racing circuits, this 1/10 2WD kit features adjustable double-wishbone suspension, resin oil shocks, full ball bearings and a slipper clutch. The clear polycarbonate body is supplied unpainted, and assembly, electronics and running equipment are required separately.
Key Features
- Resin main chassis with moderate flex to support grip and control, plus space for installing RC components.
- Rear-overhang motor mounting for traction and driving stability, with a motor guard to protect against impact after jump landings.
- Double-wishbone suspension with adjustable turnbuckle rods for straightforward setup changes.
- Resin oil shocks with dial-adjustable spring tension for ride-height tuning.
- Shocks compatible with competition-level springs.
- Standard slipper clutch helps protect the gears under heavy loads and allows adjustment of driving characteristics.
- Gear-cover installation provision to protect the drivetrain from dirt and dust.
- Rear gear differential for smooth cornering and straightforward assembly and maintenance.
- Optional ULTIMA-series ball differential can be installed for further track tuning.
- Full ball bearings throughout the drivetrain to reduce drive loss.
- Clear polycarbonate body, wing, decals and window masking sheet supplied for a personalised finish.
Specifications
| Brand | Kyosho |
|---|---|
| Model / part number | Dirt Master / 34311 (KYO-34311) |
| Scale | 1/10 |
| Drive / power | 2WD / electric |
| Assembly | Unassembled kit |
| Chassis | Resin |
| Motor layout | Rear-mounted; motor sold separately |
| Length | 380mm |
| Width | 249mm |
| Height | 140mm |
| Wheelbase | 270mm |
| Track width (front / rear) | 221mm / 201mm |
| Tyre size (front) | 84mm diameter × 28mm width |
| Tyre size (rear) | 86.5mm diameter × 42mm width |
| Gear ratio | 8.23:1 |
| Weight | Approximately 1,450g |
| Recommended battery | 2S 7.4V LiPo, sold separately; select to suit the ESC |
| Body | Clear polycarbonate, unpainted |
Package Includes
- Unassembled kit set and chassis parts
- Clear polycarbonate body
- Wing
- Window masking sheet
- Decals
- Tyres, tyre inserts and wheels
- Pinion gear
- Cross wrench
- 1.5mm and 2.0mm hex wrenches
- Grease
Required to Run (Sold Separately)
- Two- or three-channel transmitter and receiver for RC cars
- Standard-size servo
- Motor
- ESC compatible with the selected motor and battery
- Silicone shock oil
- Chassis battery, with a 2S 7.4V LiPo recommended
- Compatible battery charger
- Polycarbonate body paint, such as Tamiya PS series
- Assembly tools
The body is supplied unpainted. Use paint designed for polycarbonate, such as Tamiya PS spray paint; standard paints are unsuitable and may fail to adhere or damage the surface.
