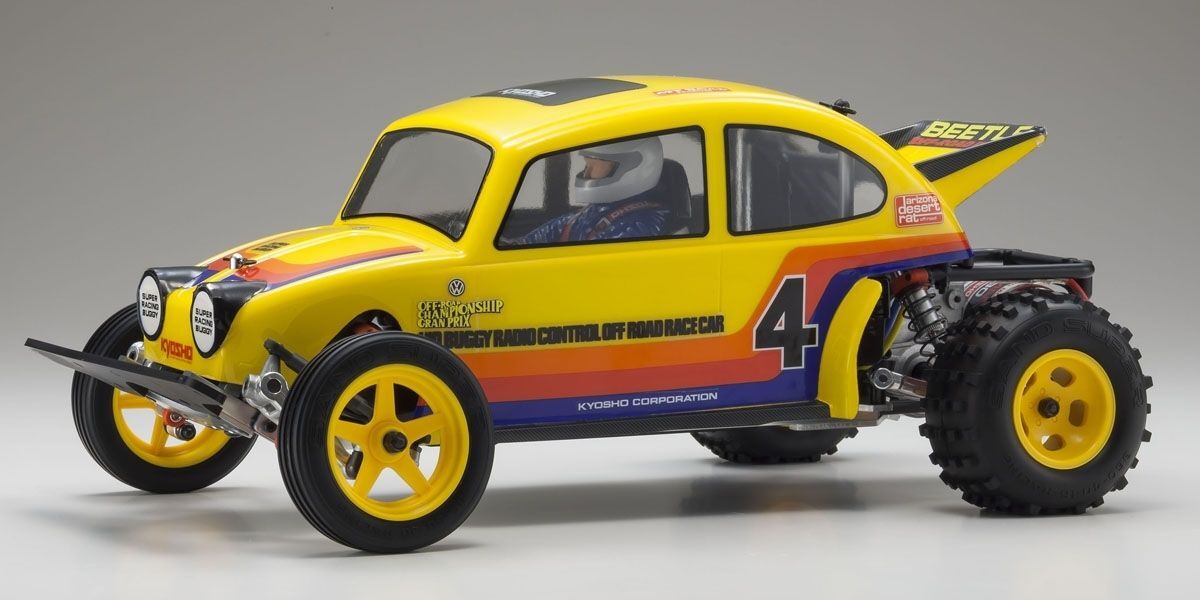

Kyosho Beetle 2014 30614 1/10 2WD Electric Racing Buggy Kit

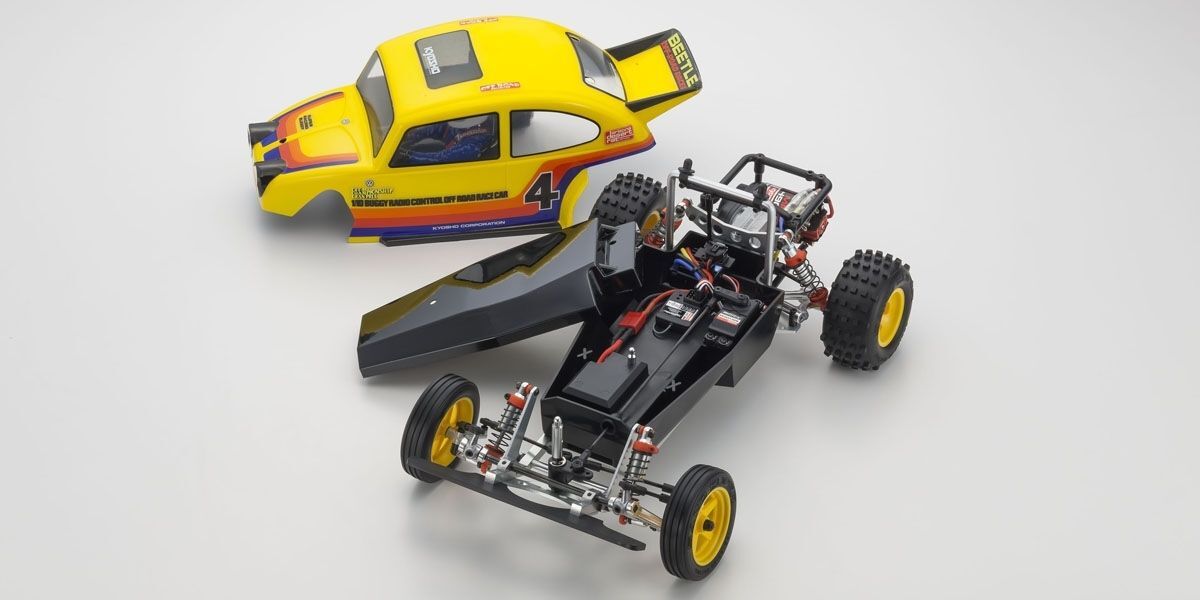

The Kyosho Beetle 2014 combines classic Baja Beetle styling with the updated Scorpion 2014 chassis. Its ladder-frame 2WD layout retains the character of the original 1980s buggy, while aluminium components, full ball bearings and an adjustable slipper clutch update the driving experience. The kit includes a pre-assembled gearbox and oil shocks, plus a pre-cut clear polycarbonate body ready for painting. Assembly and separately purchased running equipment are required.
Key Features
- Classic Baja-style body on the Scorpion 2014 ladder-frame 2WD chassis.
- Forged 6061-T6 aluminium front and rear suspension arms for rigidity, durability and low weight.
- 6061-T6 aluminium main frame, front and rear shock stays and subframe plate.
- Pre-assembled two-piece die-cast aluminium gearbox with built-in differential gears.
- Adjustable slipper clutch protects the gears and provides traction-tuning options for different surfaces.
- 48-pitch nylon and sintered-alloy gearing with two included gear combinations for high- and low-speed settings.
- Pre-assembled oil shocks with aluminium cylinders and stainless-steel shafts for smooth suspension movement.
- Full ball-bearing specification with 14 bearings.
- Countersunk chassis underside seats screws flush; reduced tapping-screw and nut use helps reduce weight.
- Predominantly hex-head screws for secure assembly.
- High-grip compound tyres with a block tread pattern, rear tyre foam inserts and lightweight one-piece rear wheels.
- Radio box accommodates different battery shapes and sizes and helps manage wiring.
- Tubular front bumper and updated rear body mounts.
- Optional ULTIMA RB ball differential can be installed as an upgrade.
Specifications
| Brand | Kyosho |
|---|---|
| Model / part number | Beetle 2014 / 30614 (KYO-30614) |
| Scale | 1/10 |
| Drive / power | 2WD / electric |
| Chassis platform | Scorpion 2014 ladder frame |
| Assembly | Kit; gearbox and oil shocks pre-assembled |
| Length | 398mm |
| Width | 236mm |
| Height | 165mm |
| Wheelbase | 263mm |
| Track width (front / rear) | 198mm / 195mm |
| Tyre size (front) | 75mm × 20mm |
| Tyre size (rear) | 85mm × 41mm |
| Gear ratios | High: 6.9:1; low: 8.3:1, both combinations included |
| Weight | Approximately 1,040g, excluding RC system and battery |
| Motor | 540 class, sold separately; 27–30 turns recommended |
| Gear pitch | 48-pitch |
| Bearings | 14 |
| Suspension arm material | Forged 6061-T6 aluminium |
Package Includes
- Unassembled Beetle 2014 kit with pre-assembled gearbox and oil shocks
- Pre-cut clear polycarbonate body
- Rear tyre foam inserts
- Two gear combinations for high- and low-speed settings
- Decals
- L-shaped hex wrench
- Cross wrench
- Shock wrench
- Grease
Shock oil inclusion needs confirmation: the original kit-content list includes it, while the original feature list says it is sold separately.
Required to Run (Sold Separately)
- Two-channel car RC system with one servo
- 540-class motor, with 27–30 turns recommended
- ESC compatible with the selected motor
- Suitable chassis battery pack
- Compatible battery charger
- Polycarbonate body paint
- Transmitter batteries
- 1.5mm, 2mm and 2.5mm hex drivers
Technical Details and Original Pictures

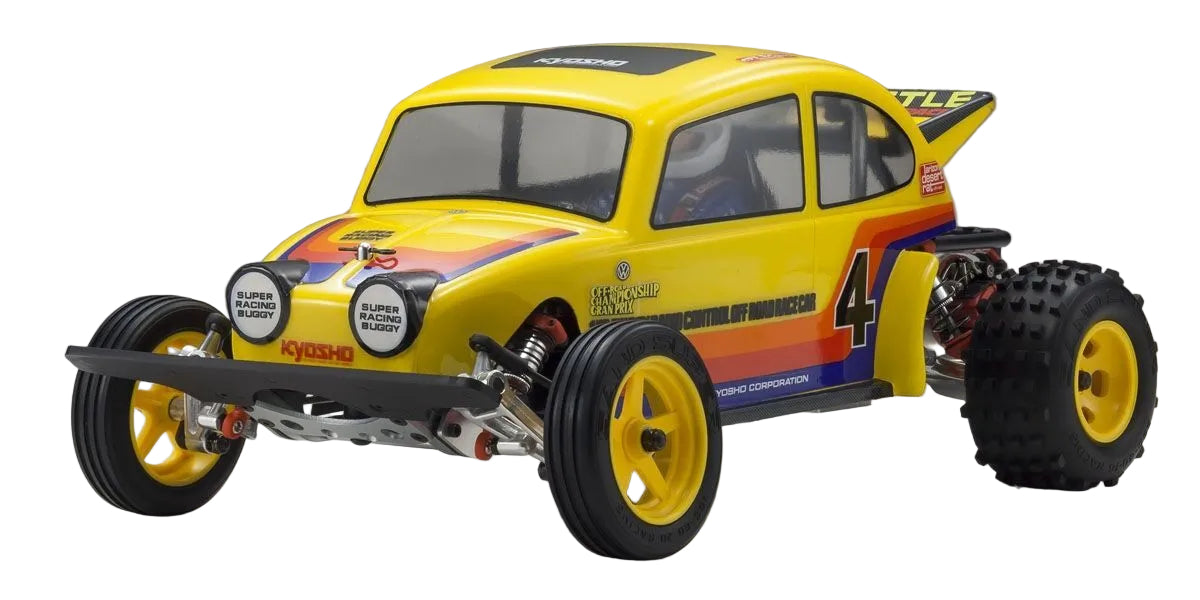

The nostalgic Baja Racer form combines with updated components and a full ball-bearing drivetrain.
6061-T6 aluminium front and rear suspension arms provide rigidity, durability and low weight. The wide front track supports driving stability.
The two-piece die-cast aluminium gearbox contains differential gears. Its slipper clutch can be adjusted for different surface conditions.
Nylon and sintered-alloy 48-pitch gears provide efficient power transfer. High- and low-speed gear combinations are included, and a ball differential is available as an optional upgrade.

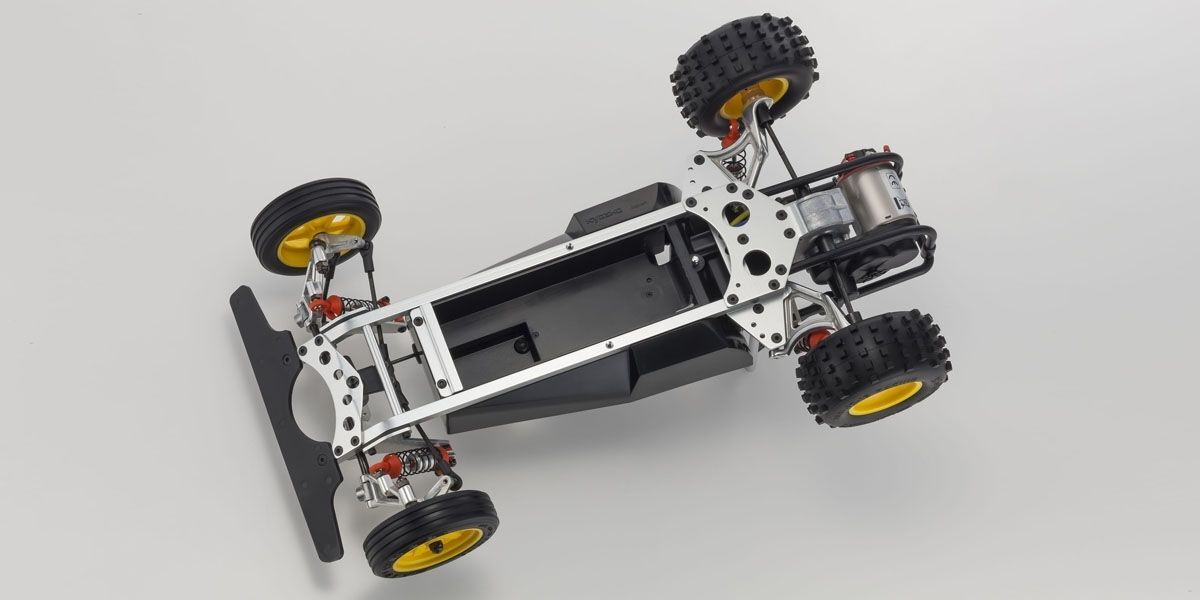

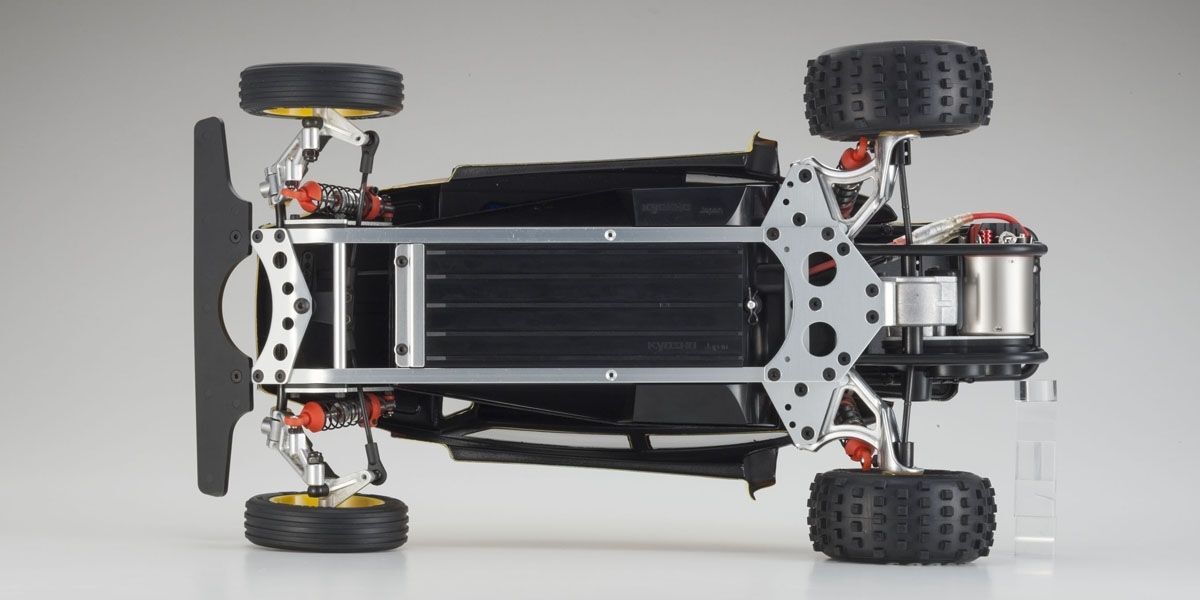

The main frame, front and rear shock stays and subframe plate use 6061-T6 aluminium. The countersunk chassis underside provides a flat finish.
Aluminium shock cylinders and stainless-steel shafts provide damping and smooth movement through the suspension stroke.

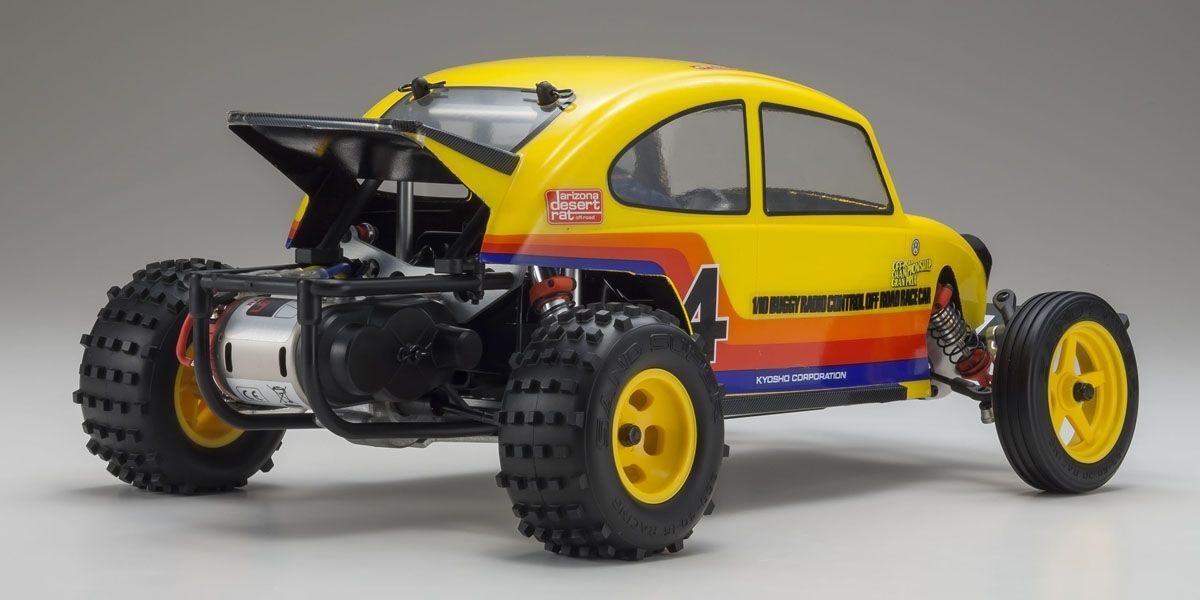

High-grip compound tyres with an updated tread pattern retain the Baja appearance. Rear tyre foam inserts and one-piece wheels complete the rear-wheel setup.

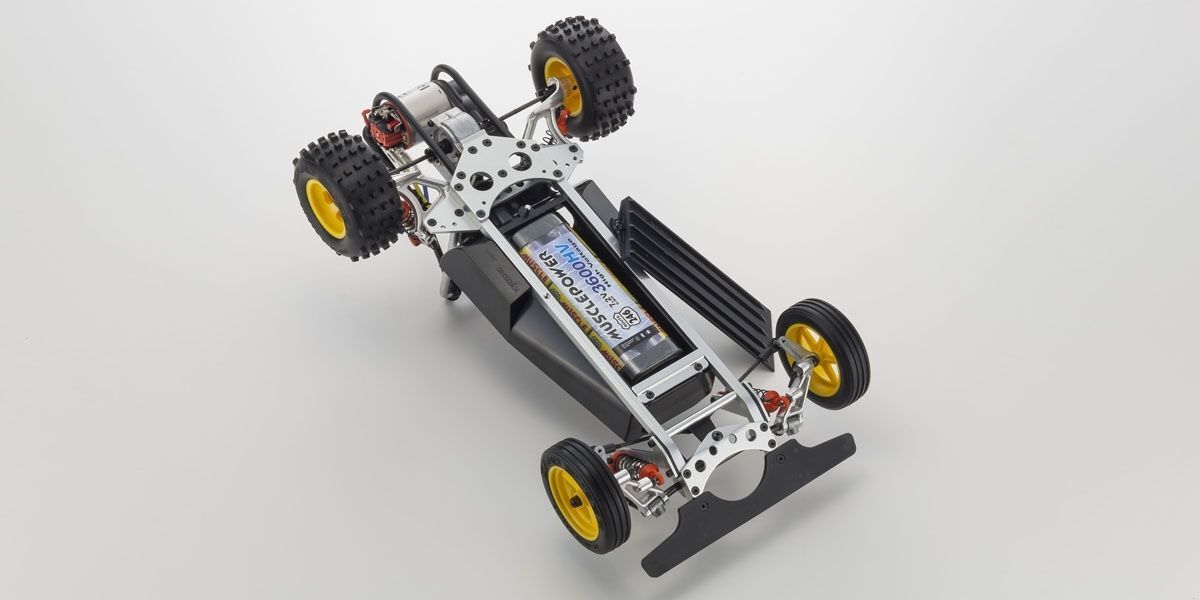

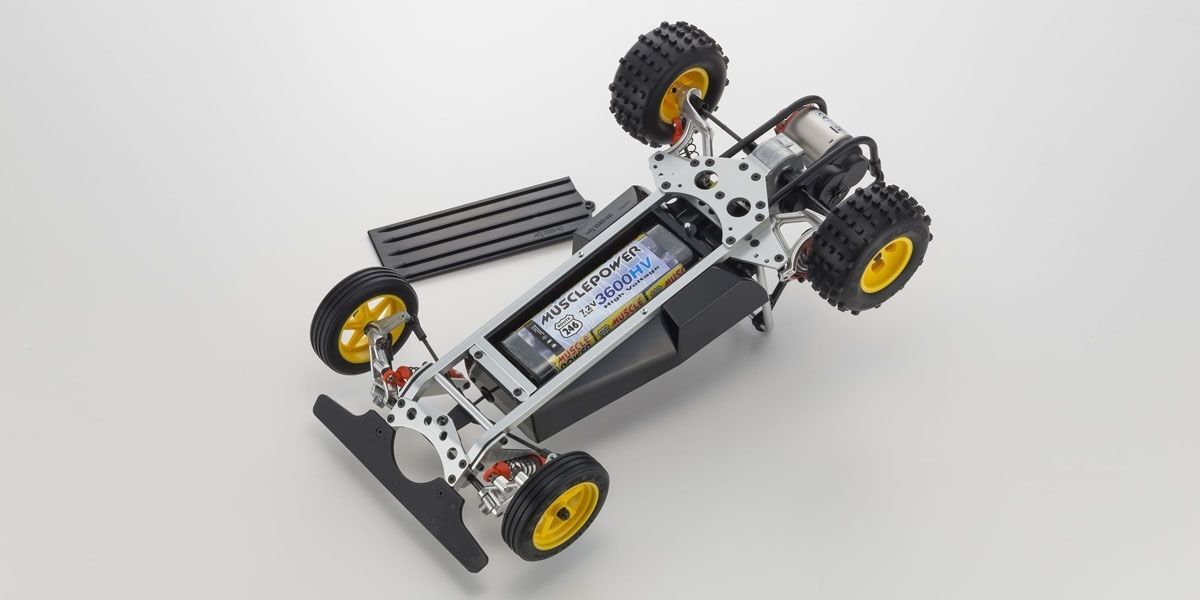

The radio box helps organise wiring and accommodates the shapes and sizes of different battery packs.

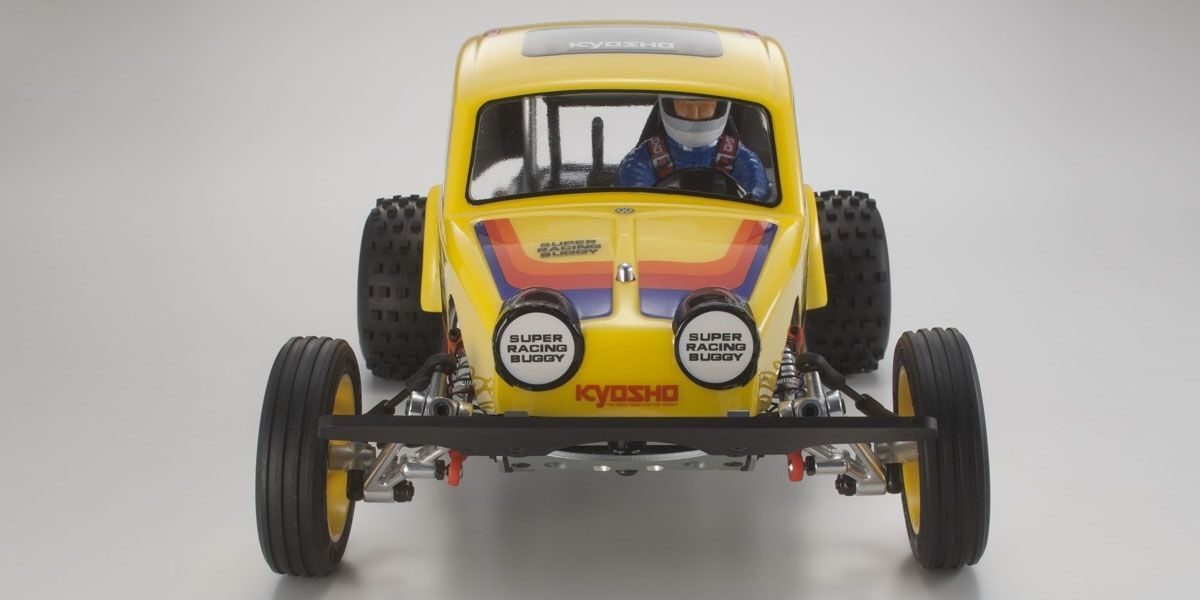

The tubular front bumper is easy to attach, and the updated rear body mounts support the Beetle body.
