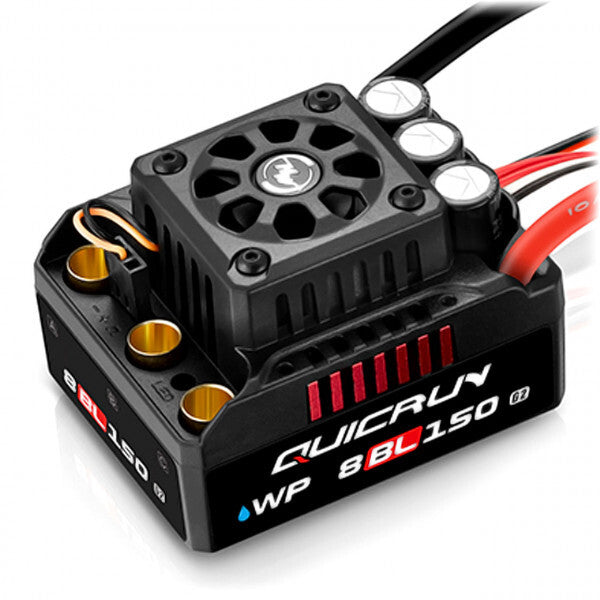

Hobbywing QuicRun WP 8BL150 G2 Brushless ESC 150A for 1/8 RC
The Hobbywing QuicRun WP 8BL150 G2 is a waterproof, sensorless brushless electronic speed controller for 1/8 scale trucks and monster trucks. It supports 3–6S LiPo batteries and combines a high-current power stage, switchable high-performance BEC, intelligent freewheeling technology, and active cooling for dependable RC performance.
Key Features
- 150A continuous current and 950A short-term current
- Brushless sensorless design for 1/8 scale RC applications
- 3–6S LiPo battery support
- IP67 protection against dust and splash water
- Switchable 6V or 7.4V BEC output at 6A, with maximum BEC current up to 12A
- Suitable for powerful and high-voltage steering servos
- Intelligent freewheeling technology for improved efficiency at low temperatures
- Patented copper heat-conduction rail for rapid internal heat dissipation
- Built-in fan for reliable cooling and safe operating temperatures
- Overheating protection for the 2040uF capacitors
- Nine selectable acceleration programs, from soft to aggressive
- Proportional brake with adjustable maximum braking force and automatic brake function
- Independent programming port, so the throttle cable does not need to be removed from the receiver
- Protection functions for battery undervoltage, thermal overheating, loss of throttle signal, and capacitor overheating
Specifications
| Specification | Details |
|---|---|
| Brand | Hobbywing |
| Model | QuicRun WP 8BL150 G2 |
| Type | Brushless sensorless |
| Continuous / short-term current | 150A / 950A |
| Battery input | 3–6S LiPo |
| BEC | Switch mode, 6V or 7.4V at 6A; maximum current up to 12A |
| Waterproof rating | Yes, IP67 |
| Output connector | 6.5 mm gold socket |
| Programming options | LCD programming box G2, LED programming card, or programming interface |
| Dimensions | 60 x 48 x 40.4 mm |
| Weight | 169.5 g |
| Applications | 1/8 scale trucks and monster trucks |
| Part number | HW30109003 |
Package Includes
- 1 x Hobbywing QuicRun WP 8BL150 G2 brushless ESC
- English instructions
