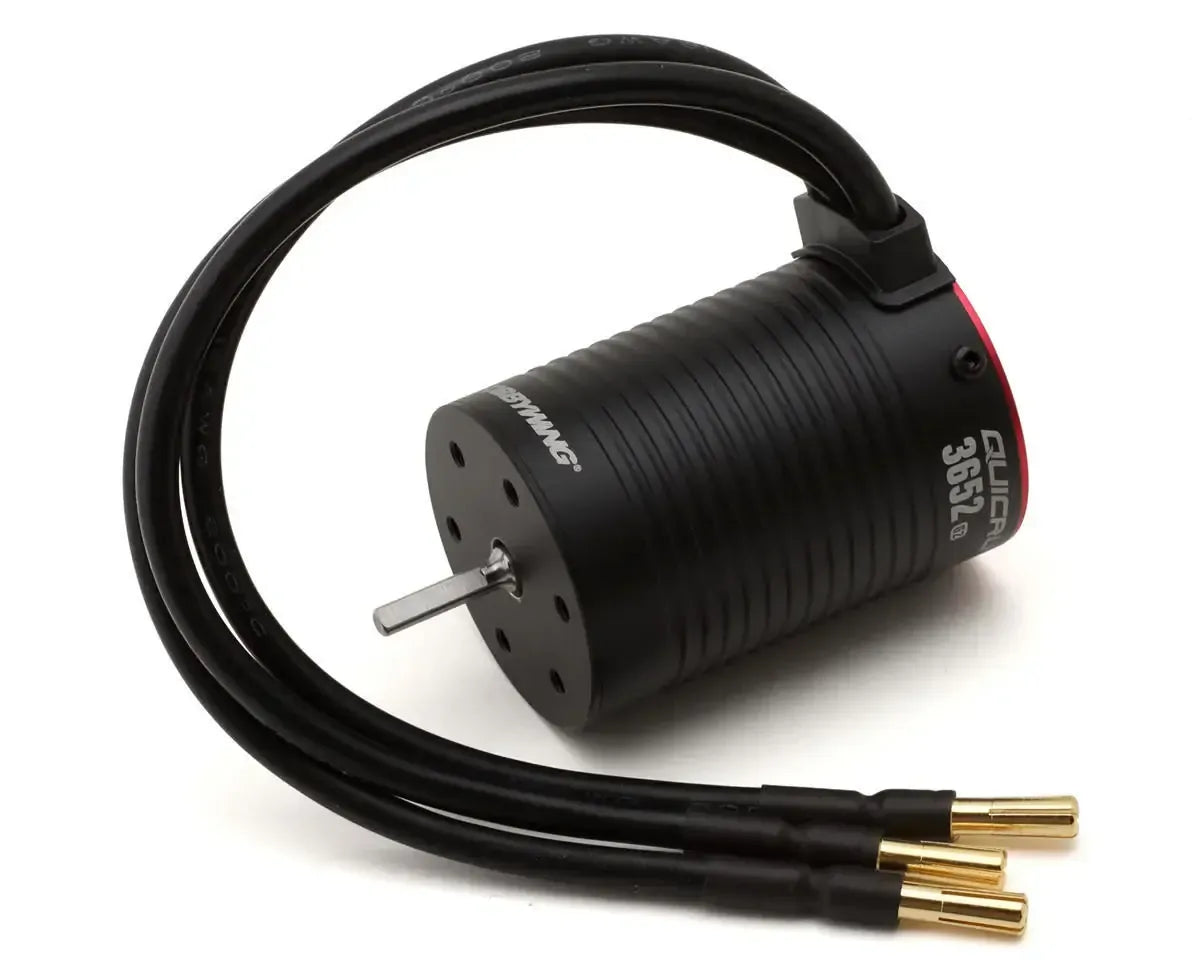

Hobbywing QuicRun 3652SL 5400KV Brushless Motor G2 for 1/10 RC
The Hobbywing QuicRun 3652SL 5400KV brushless G2 motor is designed for 1/10 scale off-road and on-road RC vehicles. Its modular construction, reinforced rotor, aluminium end plates, high-precision bearings, and 200°C heat-resistant wire support reliable performance, while the programmable G2 system provides adjustable power and BEC settings.
Key Features
- 3652SL brushless motor with 5400KV power rating
- G2 design with increased maximum output power
- Efficient operation with lower operating temperatures under the same load
- Switch-mode BEC with adjustable 6V or 7.4V output, up to 5A continuous and 10A instantaneous current
- Independent programming port for convenient program-card connection
- Protection for battery low voltage, ESC overheating, throttle signal loss, current, and capacitor overheating
- Explosion-proof rotor design with reinforced aluminium end plates
- High-hardness aluminium construction with CNC end cover
- 0.2 mm ultra-thin, low-loss silicon steel sheet
- High-precision bearings and 200°C high-temperature-resistant enamelled wire

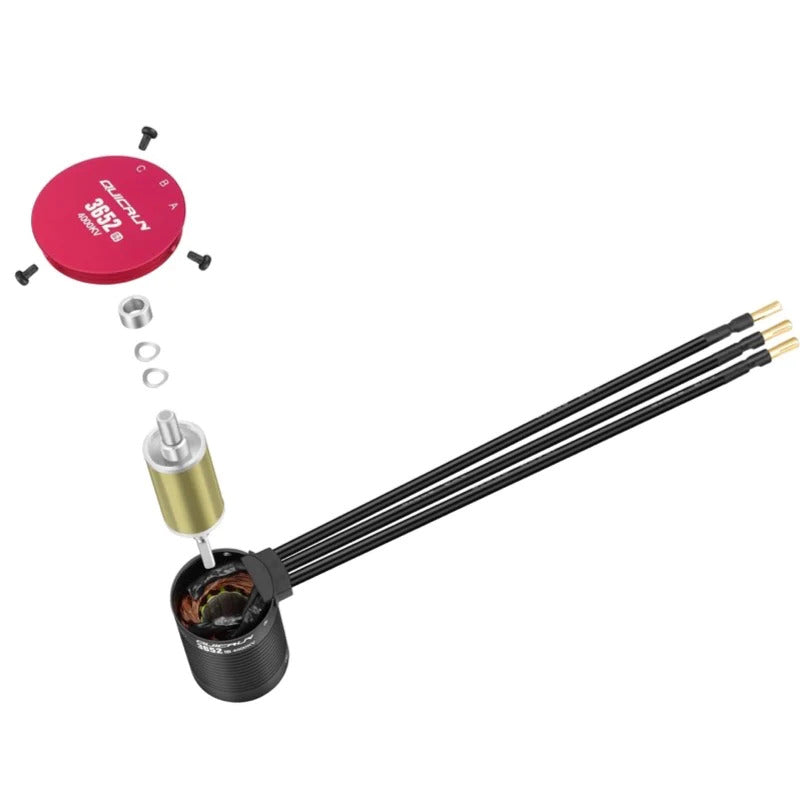

- Modular, detachable design for easier cleaning, maintenance, and repairs
- Suitable for 1/10 scale off-road and on-road RC vehicles
Specifications
| Specification | Details |
|---|---|
| Brand | Hobbywing |
| Series | QuicRun Brushless G2 |
| Model | QuicRun 3652SL |
| Motor type | Brushless |
| Power rating | 3652SL 5400KV |
| BEC output | Adjustable 6V / 7.4V |
| BEC current | 5A continuous / 10A instantaneous |
| Programming | Independent programming port |
| Applications | 1/10 scale off-road and on-road RC vehicles |
| Part number | HW30404402 |
Package Includes
- 1 x Hobbywing QuicRun 3652SL 5400KV brushless G2 motor
Important: Configure the power components carefully and follow the vehicle manufacturer’s guidance. Secure all wiring, do not run the motor at maximum power without a pinion gear, and keep the motor casing below 100°C (212°F) to help prevent damage and loss of magnetism.
