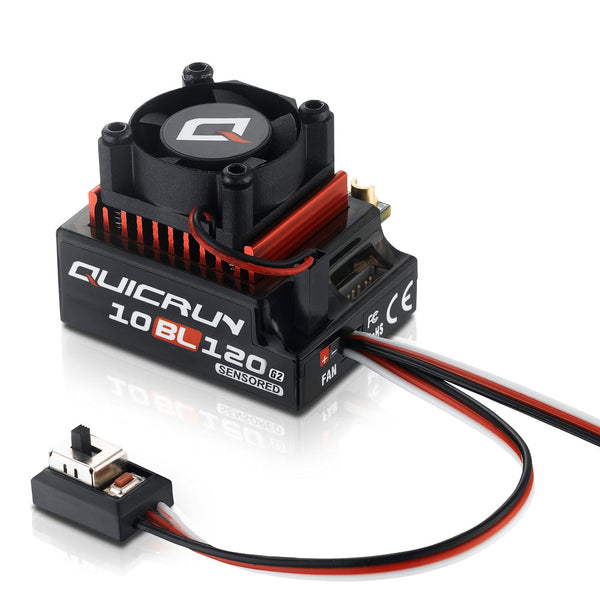

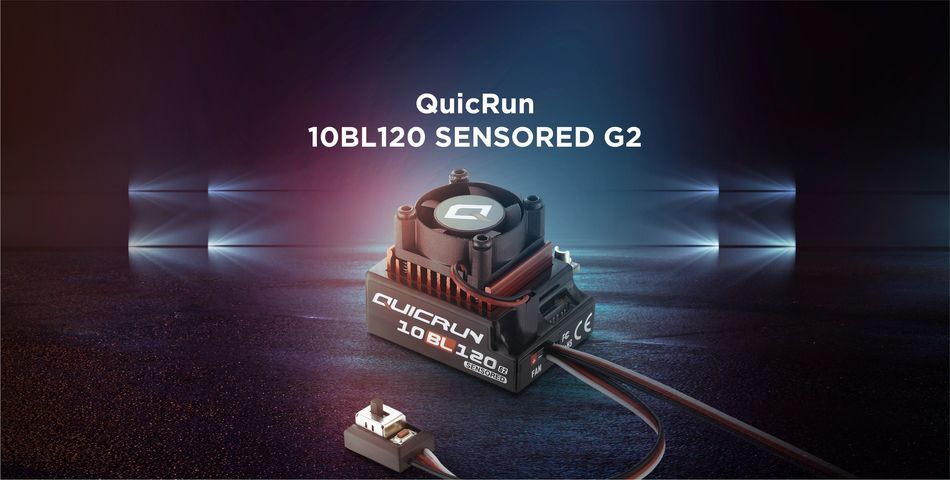

Hobbywing QuicRun 10BL120 G2 Brushless ESC – 120A, 1/10 Scale, Waterproof
The QuicRun 10BL120 G2 is a high-performance brushless electronic speed controller built for 1/10 scale short course trucks and monster trucks. With 120A continuous current, IP-67 waterproofing, and intelligent freewheeling technology, it delivers exceptional efficiency and reliability in all conditions.
Key Features
Intelligent Freewheeling Technology
The innovative intelligent freewheeling technology enables higher driving efficiency and lower operating temperature, further improving the stability and reliability of the ESC.
Powerful Built-In BEC
The ESC features a built-in BEC with 5A continuous and up to 10A peak output. Output voltage is switchable between 6V and 7.4V, providing full support for high-torque servos.
Efficient Cooling System
An integrated radiator design combined with a patented copper thermal conduction sink rapidly conducts internal heat to the radiator. A built-in fan ensures the ESC always performs at its best.
Capacitor Thermal Protection
Thermal protection is built into the capacitor circuit to prevent overload-related damage and ensure long-term reliability.
Super Large Built-In Capacitor
With a 1640uF built-in capacitor, external capacitors are not required for 1/10 scale models — simplifying installation and improving ease of use.
IP-67 Waterproof Rating
All-weather operation guaranteed. Drive confidently across mud, sand, ice, snow, and water without risk of damage to the power unit.
Specifications
General
Scale: 1/10th
Motor Type: Brushless (Sensored & Sensorless)
Waterproof: Yes (IP-67)
Cont./Peak Current: 120A / 760A
Input Voltage: 2–4S LiPo
BEC Output: 6V / 7.4V @ 5A
Wires & Connectors
Input Wires: Black – 14AWG – 200mm x2
Output Connectors: 4mm Gold (female)
ESC Programming
SET Button on ESC: Not Supported
LED Program Box: Supported
LCD G2 Program Box: Supported
OTA Programmer: Supported
Program Port: Separate Program Port
Firmware Upgrade: Not Supported
Size & Weight
Dimensions: 52.9 x 39.8 x 38.2mm
Weight: 119g (including wires & connectors)
Compatible Applications
Motors: SL BL Motors / SD BL Motors (sensorless mode)
Vehicles: 1/10 Short Course Truck, Monster Truck
Motor Size: 3652, 3660
(HW30125002)
