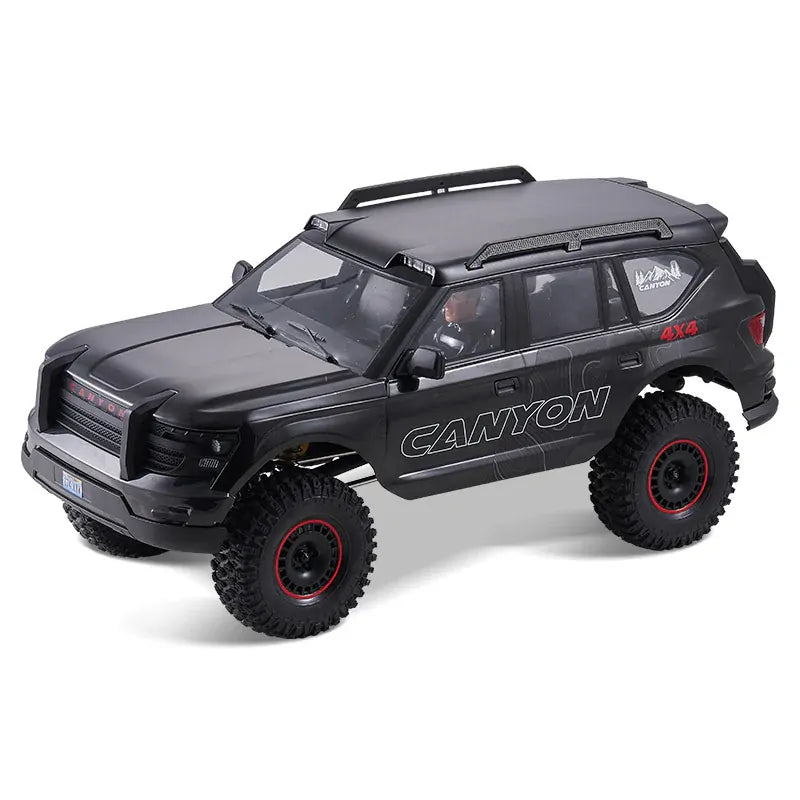

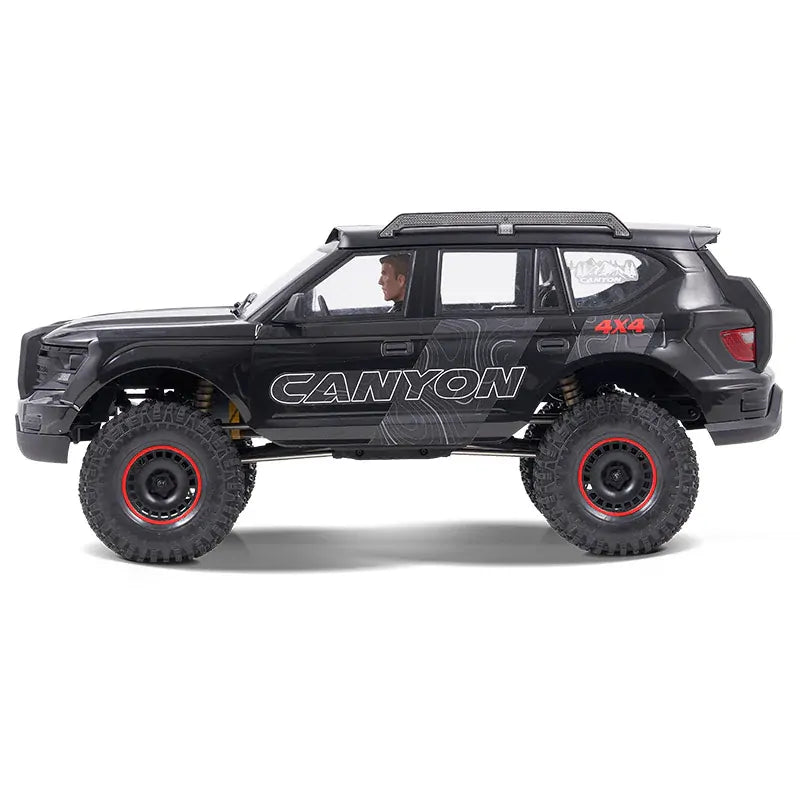

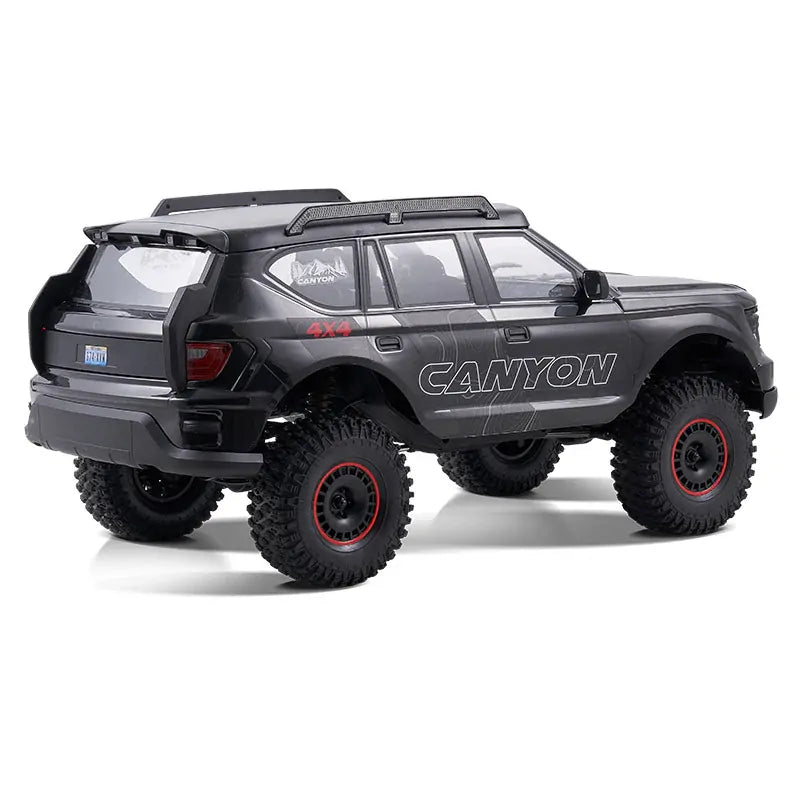

FMS 1:10 Canyon Black RC Rock Crawler
The FMS Canyon is a rugged, scale 1:10 RC rock crawler inspired by Dubai's futuristic police supercar. Built for realism and engineered for performance, it features a high-strength PC body shell with durable nylon roof panels, bumpers, mirrors, and door handles. Clear windows reveal a detailed driver figure and a fully replicated cockpit interior. A synchronised LED lighting system includes functional headlights, turn signals, and tail lights with customisable light buckets for scale accuracy. The body attaches via FMS's patented magnetic quick-mount system, which automatically connects power and lighting functions for effortless setup. Underneath, a reinforced nylon LCG chassis delivers outstanding rigidity and impact resistance, while portal axles, two-speed transmission, and the innovative DIG mode make it one of the most capable crawlers in its class.
Highlights
- LCG chassis — new low-centre-of-gravity design for improved stability
- Servo shock absorption protection device (new design)
- Innovative DIG function with remote-controlled single rear wheel lock (patented)

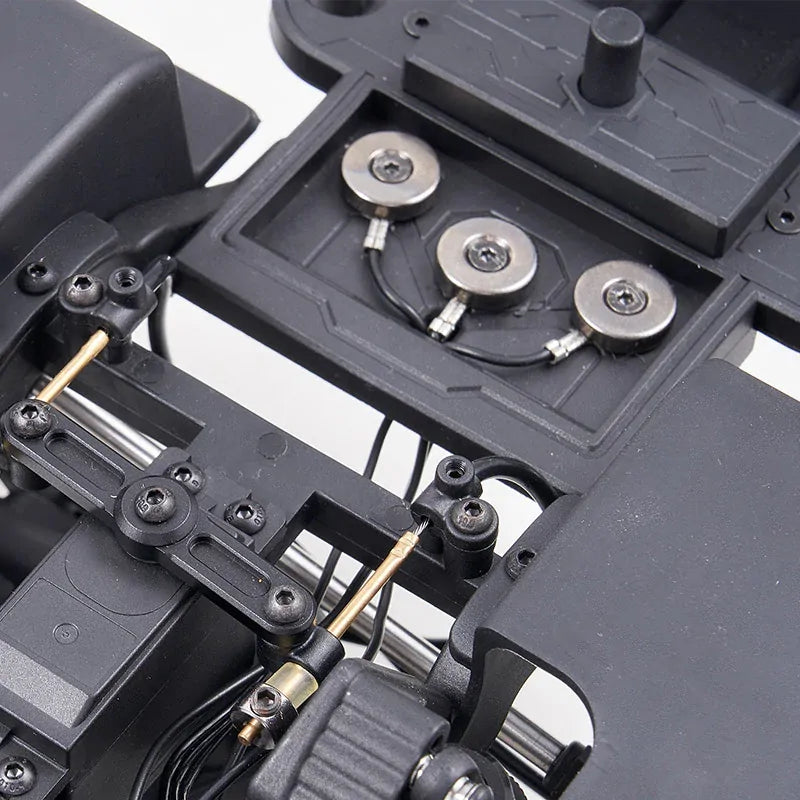

- Quick-release body structure (patented magnetic mount)

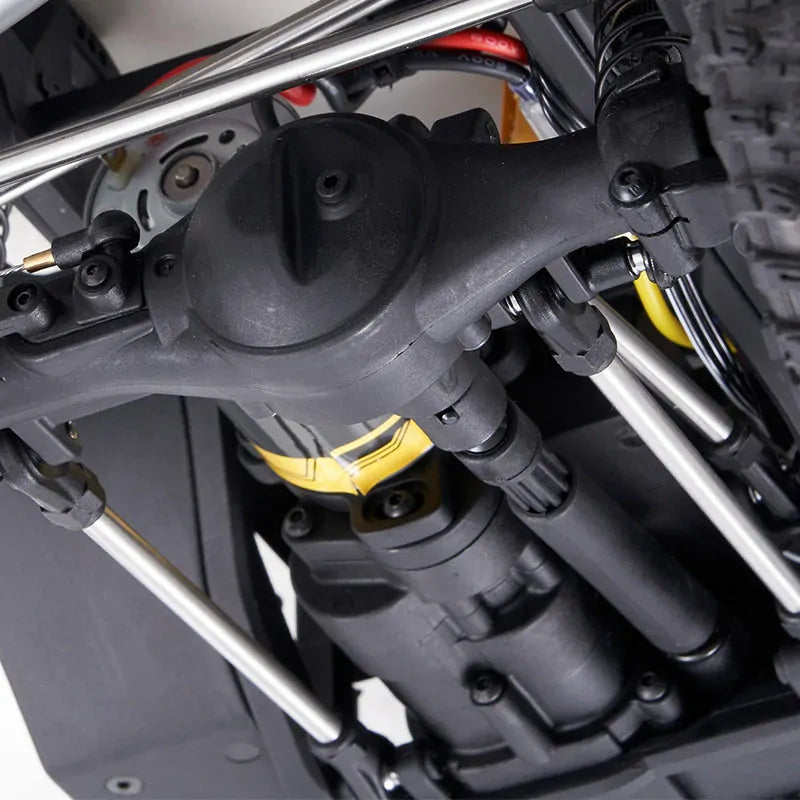

- Front and rear portal axles for maximum ground clearance
- High-traction crawling tires with aggressive tread
- Remote-controlled full LED light system
- Realistic scale interior with fine cockpit details
- Remote-controlled locking front and rear differentials
- Two-speed transmission (high & low gear)
- Counter-rotating driveshafts to minimise torque twist
- Oil-filled, all-metal shock set
- Full-metal gears with plastic spur gear
- Full set of ball bearings (36 pcs)
- Independent ESC (Hobbywing 1060)

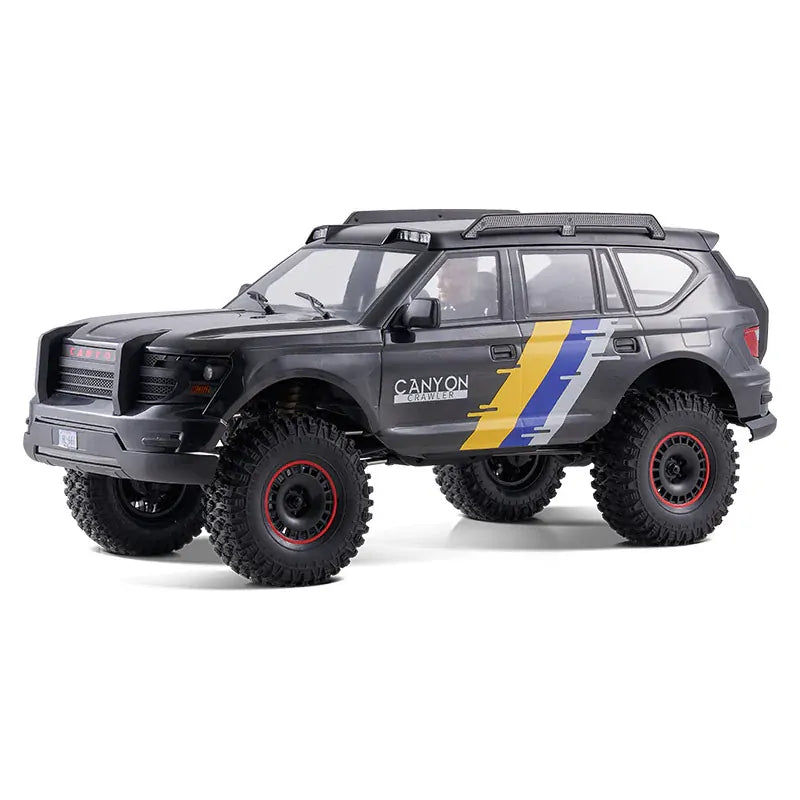

- Includes two decal sets for user customisation
What's in the Box
- 1 × FMS 1:10 Canyon RS (Black)
- 1 × 2.4GHz MG11 Transmitter
- 1 × FS-R11P-BS Receiver (installed)
- 1 × 550 Brushed Motor 32T (installed)
- 1 × Product Manual
Needed to Complete
- 4 × AA batteries for transmitter
- 2S or 3S LiPo battery — 5000mAh, XT60 plug recommended
- Compatible LiPo charger
Specifications
| Transmitter | MG11 2.4GHz |
| Receiver | FS-R11P-BS |
| Light Control | DB01 |
| Recommended Battery | 2S–3S LiPo |
| Motor | 550 Brushed Motor 32T |
| Motor Gear Pinion | 14T |
| Motor Gear Pitch | M0.6 |
| Spur Gear | 33T / M0.6 |
| ESC | Hobbywing 1060 |
| Steering Servo | 25kg × 1 |

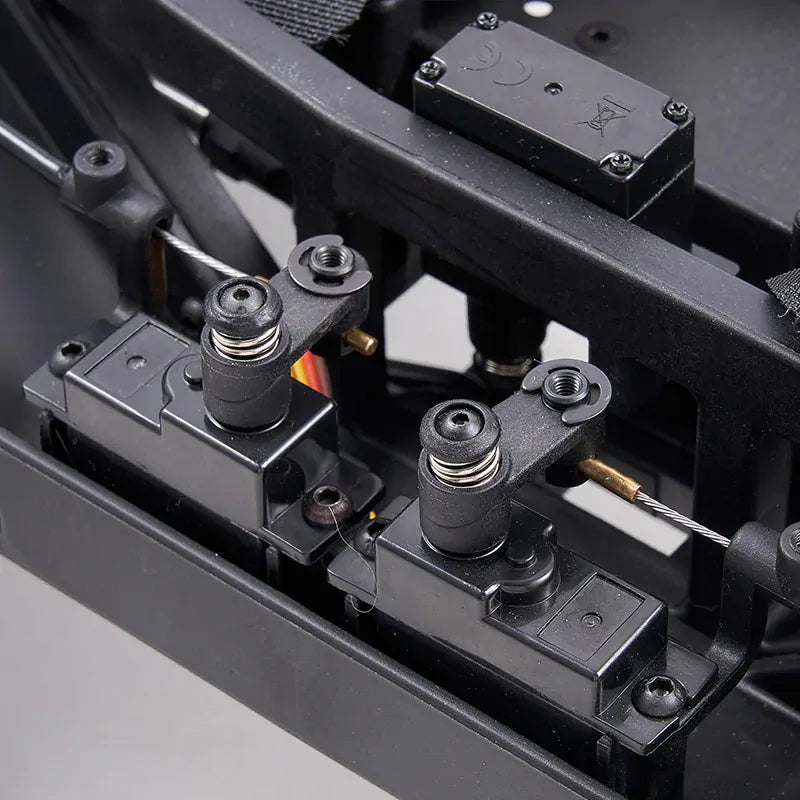

| Shift / Diff Servos | High/Low Speed ×1, Front/Rear Diff ×2, DIG ×1 |
| Product Size | 580 × 260 × 256mm |
| Wheelbase | 325mm |
| Tread | 208mm |
| Approach Angle | 38° |
| Departure Angle | 39.5° |
| Breakover Angle | 45° |
| Ground Clearance | 60mm |
| Steering Type | 2WS |
| Max Steering Angle | 42° |
| Max Climbing Angle | 40° |
| Tire Size | 116 × 42mm |
| Wheel Hub Size | 56 × 32mm |
| Wheel Hub Adaptor | 12mm |
| Bearings | 36 pcs |
| Drive System | 4WD |
| Waterproof Class | Splash-proof |
| Battery Compartment | 156 × 48mm |
| Maximum Speed | 15 km/h |
| Control Distance | 150m |
| SKU | FMS11041RSBK |
Features in Action
Tank Turn Capability
Activate the DIG tank turn for an ultra-tight turning radius. The CANYON pivots around rocks, trees, and tight gates with precision — making it more agile, fun, and capable in any environment.
2-Speed Transmission
Shift on the fly between low and high gear. Use low gear for precise control and maximum torque while crawling, then switch to high gear for speed and trail running. One truck — two driving experiences.
Selectable Front & Rear Diff Locks
Lock or unlock the differentials on demand directly from your transmitter. Keep them open for smooth cornering on trails, or lock them for maximum traction when rock crawling or climbing through tough terrain.

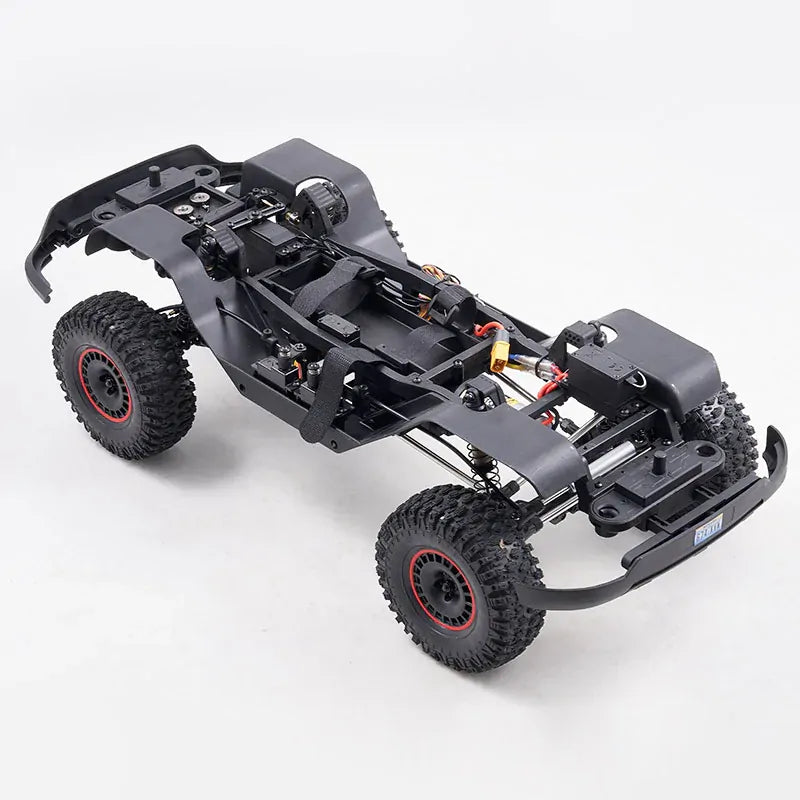

LCG Chassis Design
The low-centre-of-gravity chassis keeps the truck planted and stable, even when tackling steep climbs or side-hill obstacles. This design improves handling on technical terrain and gives drivers the confidence to push harder without the risk of rolling over.
High-Traction Crawling Tires
Aggressive tread patterns and a soft rubber compound provide exceptional grip on rocks, dirt, sand, and loose terrain, engineered to maximise climbing performance while maintaining stability on uneven ground.

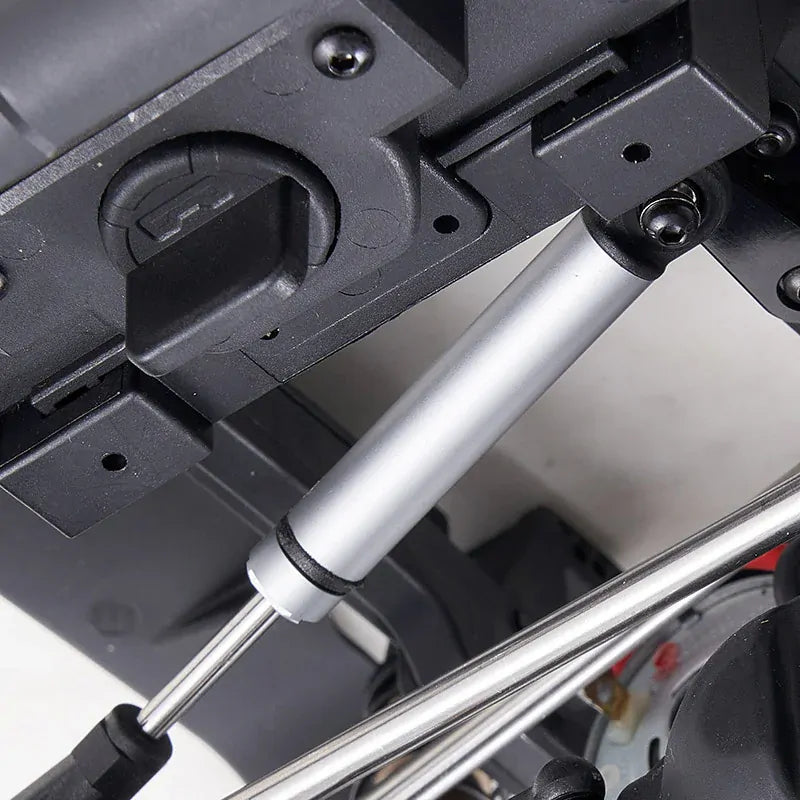

Servo Damper System
A unique servo damper absorbs harsh impacts from bumps and rocks, reducing stress on the steering servo. The result is smoother steering response, improved control on rough terrain, and extended servo life.
Counter-Rotating Transmission
Counter-rotating driveshafts minimise torque twist, keeping the chassis stable under acceleration and maintaining control during technical climbs.
All-Metal Construction
Equipped with oil-filled metal shocks, steel gears, and a full set of ball bearings, this all-metal setup ensures exceptional durability, smooth suspension travel, and long-lasting performance across the most demanding terrain.
