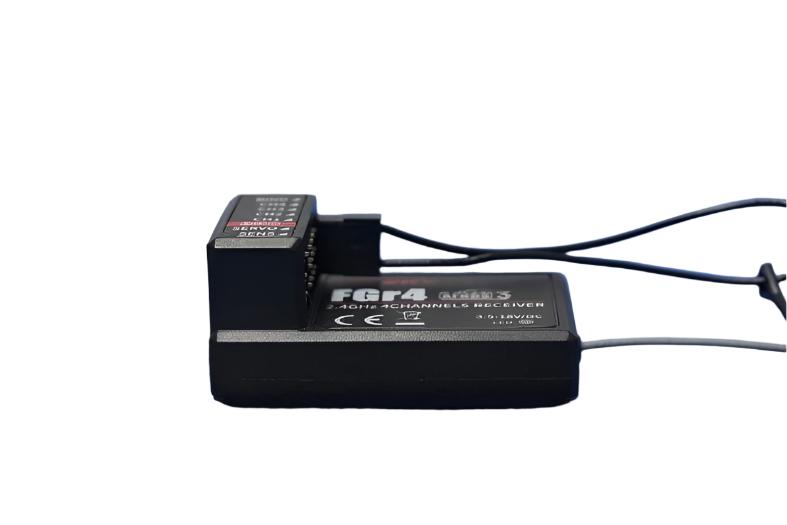

Flysky FGR4 2.4GHz 4-Channel Receiver - AFHDS 3 Protocol
Advanced 4-channel receiver featuring Flysky's latest AFHDS 3 protocol for superior performance and reliability. The ultra-compact FGR4 offers multiple output modes (PPM/iBUS/PWM), RSSI telemetry, online firmware updates, and wide voltage compatibility, making it perfect for RC cars, boats, and aircraft.
Key Features
- 4 PWM channels for comprehensive control
- AFHDS 3 protocol - Flysky's latest technology
- Multiple output modes: PPM, iBUS, and PWM
- RSSI (signal strength) telemetry support
- Online firmware update capability
- Wide voltage range: 3.5V-18V
- Ultra-compact: 46 x 28 x 22mm
- Lightweight: Only 22g
- Single antenna design
AFHDS 3 Technology
AFHDS 3 (Automatic Frequency Hopping Digital System 3rd Generation) is Flysky's most advanced protocol, offering improved range, faster response times, enhanced anti-jamming capabilities, and better telemetry support compared to previous generations.
Versatile Output Modes
- PPM: Perfect for flight controllers and multirotor applications
- iBUS: Digital servo bus for telemetry and sensor data
- PWM: Standard servo output for traditional RC setups
Compatible Applications
- RC cars and trucks
- RC boats
- RC aircraft and planes
- Quadcopters and multirotors (PPM mode)
- Any 4-channel RC application
- Compatible with AFHDS 3 transmitters
Technical Specifications
- Model: FGR4
- PWM Channels: 4
- Frequency: 2.4GHz
- Protocol: AFHDS 3
- Antenna: Single antenna
- Power Input: 3.5V-18V (wide voltage range)
- RSSI: Yes (signal strength telemetry)
- Data Interface: PPM / iBUS / PWM
- Operating Temperature: -15°C to +60°C
- Humidity Range: 20%-95%
- Online Update: Yes (firmware upgradeable)
- Dimensions: 46 x 28 x 22mm
- Weight: 22g
- Certification: CE, FCC ID: N4ZFGR400
Advanced Features
- Wide Voltage Compatibility: Works with 3.5V-18V power sources
- RSSI Telemetry: Monitor signal strength in real-time
- Firmware Updates: Keep your receiver up-to-date with latest features
- Compact Design: Easy installation in tight spaces
- Temperature Resistant: Operates in extreme conditions (-15°C to +60°C)
What's Included
- 1x Flysky FGR4 4-channel receiver
- Antenna
- Servo cables
Model: FS-FGR4
Brand: Flysky
Protocol: AFHDS 3
Version: 2
