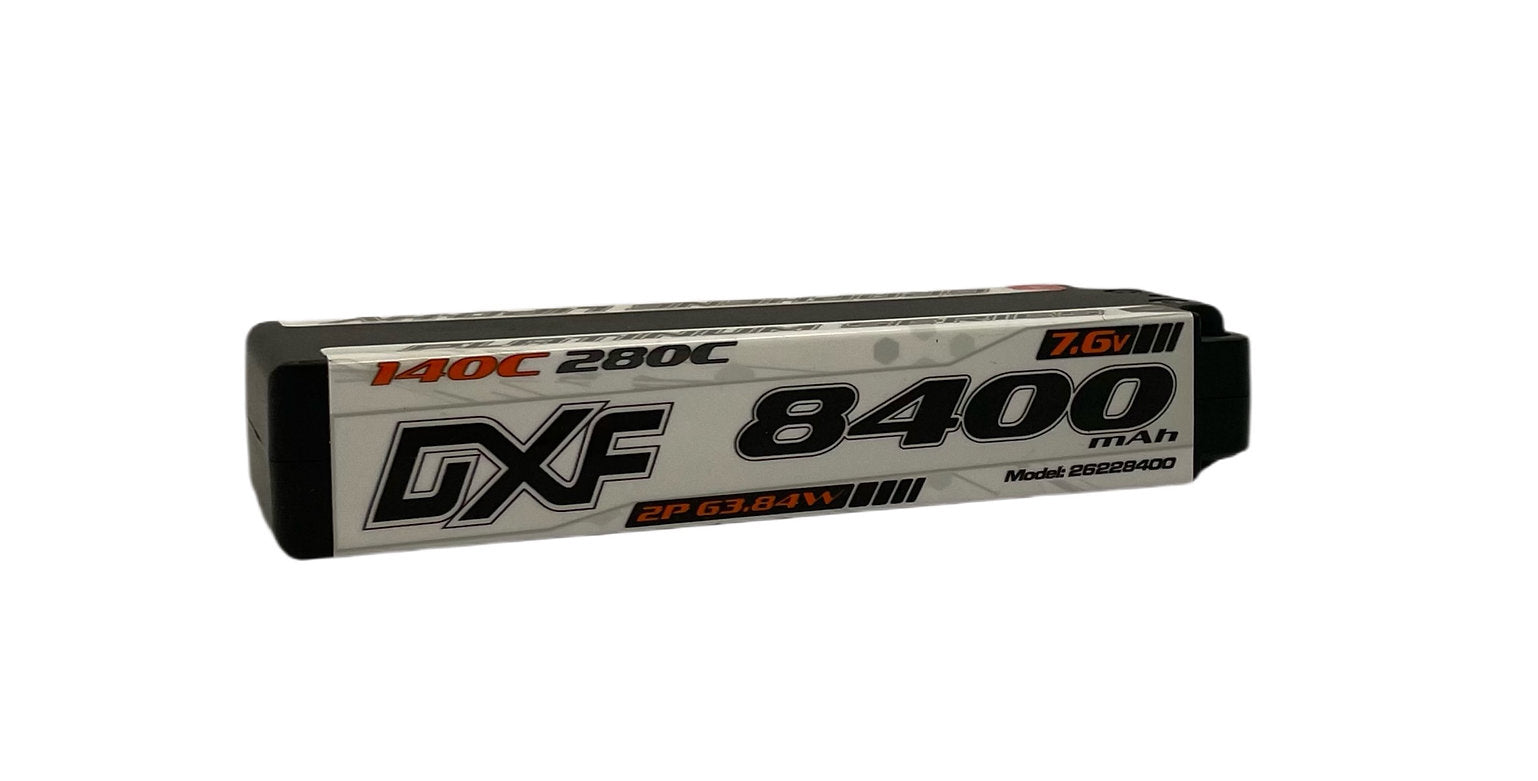

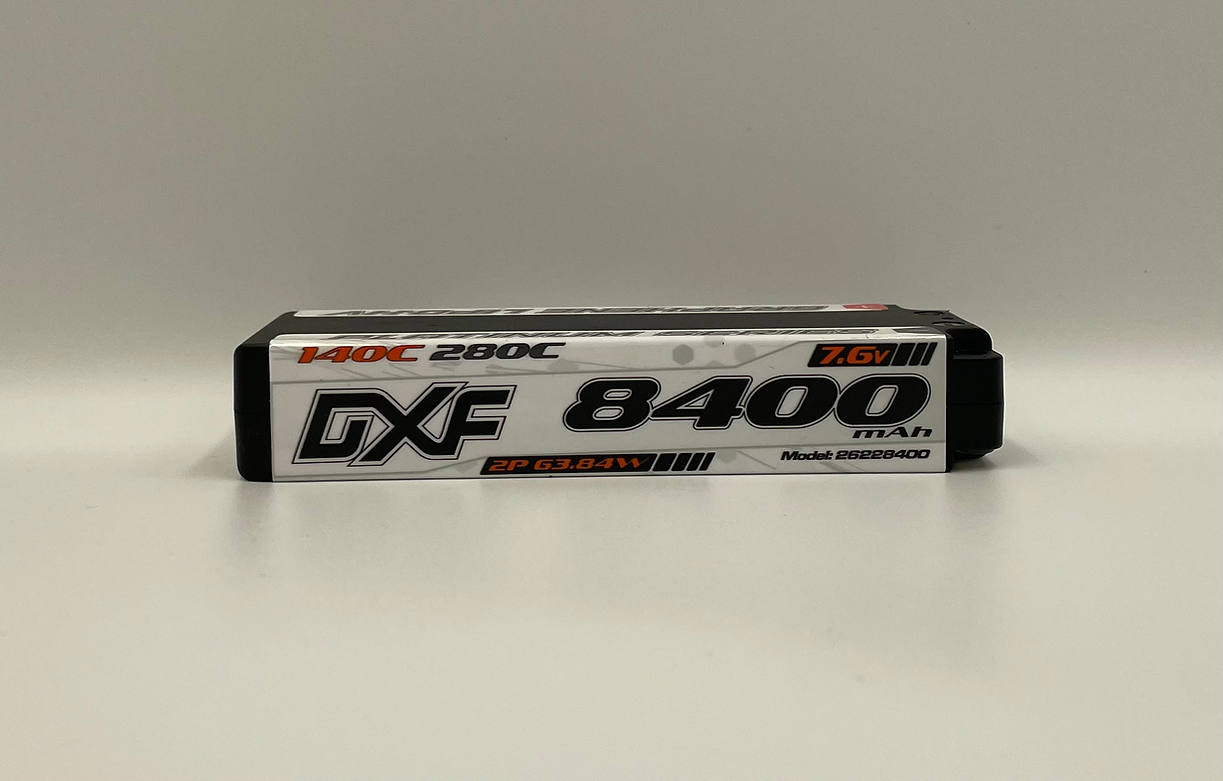

DXF Power 2S 8400mAh // Platinum Series ROAR Approved
The DXF 2S 140C Graphene HV 8400mAh LiPo Battery is an ideal choice for those seeking a lightweight and high-capacity LiPo battery. Weighing just 305 grams, this 2S pack is lighter than standard options while offering greater capacity. These advancements result in improved voltage and power throughout its usage.
This battery is specifically designed to enhance power-to-weight ratios while maintaining a low center of gravity (CG). It delivers enhanced efficiency, leading to lower operating temperatures and internal resistance, providing users with a consistent battery performance. DXF Graphene 140C Packs are built to meet the power requirements of serious racers.
Compared to conventional LiPo batteries, DXF LiPo batteries offer twice the cycle life when charged at .5C to 1C rates. They exhibit a flatter discharge curve, maintaining higher voltage throughout the discharge cycle without significant drops. Additionally, DXF LiPo batteries are lighter, providing a higher capacity-to-weight ratio.
Key features:
- Lighter than an equal-capacity hardcase 2S LiPo pack.
- Longer runtime with increased voltage and power.
- Capable of handling more abuse and delivering higher current than standard LiPo batteries.
- Improved efficiency, lower operating temperatures, and lower internal resistance.
- Increased run time, cycle life, and voltage.
- Higher capacity per gram compared to standard LiPo cells.
- Suitable for modified or stock class racers aiming to reduce weight.
- 1C charge rate recommended for optimal lifespan.
- Nominal voltage of 7.6V.
- Equipped with 5mm bullets.
- Includes a 130mm charge cable with an XT-60 connector and a red velcro battery strap.
- Voltage: 7.6V HiV-LiPo
- Capacity at 7.6V: 8400mAh
- Capacity at 7.4V: 7900mAh
- Charge Rate: .5C to 1C (4.2A to 8.4A)
- Discharge Rate: 140C (280C)
- Configuration: 2S1P
- Watts: 63.84wH
- Dimensions: 138mm x 46.5mm x 25mm
- Weight: 305g +/- 2%
- Connector: 5mm Bullet
- Balance Port: 2mm Bullet
- Note: LiHV cells can be charged using a standard LiPo charger. Charging to LiHV specs may result in slightly reduced voltage and capacity, but the performance will still surpass that of a standard LiPo due to the flat discharge curve, reduced weight, and low internal resistance. Charging to 8.4V provides a noticeable advantage compared to a standard 7.4V LiPo pack.
- ROAR APPROVED
The DXF POWER 8400mAh Platinum Series 2S Stick Pack is a reliable and approved choice for those seeking enhanced battery performance and capabilities.
