1.4KG Micro Programmable Coreless Digital RC Servo for Mini Z Car (A11CLS V3)
In store availability:
Pickup currently unavailable at In Store
1.4KG Micro Programmable Coreless Digital RC Servo for Mini Z Car (A11CLS V3)
In Store
4/47 Wises Road
Buderim QLD 4556
Australia
Warehouse - online orders availability:
* Quantity available from our warehouse / partner retailers (please be aware of slightly increased shipping times of approx additional 4 business days): 0
Ask us to back order one from our supplier
AGFRC 9g Upgrade Metal Case 0.050sec Programmable High Speed High Torque Digital 1.4KG Servo JST/JR Plug For Mini Z RC Track Car (A11CLS V3)
Order Note: The default servo connector is JST plug. If you need to receive the JR plug version, pls mark it when you place the order. Or send us the message/mail when you placed the order.

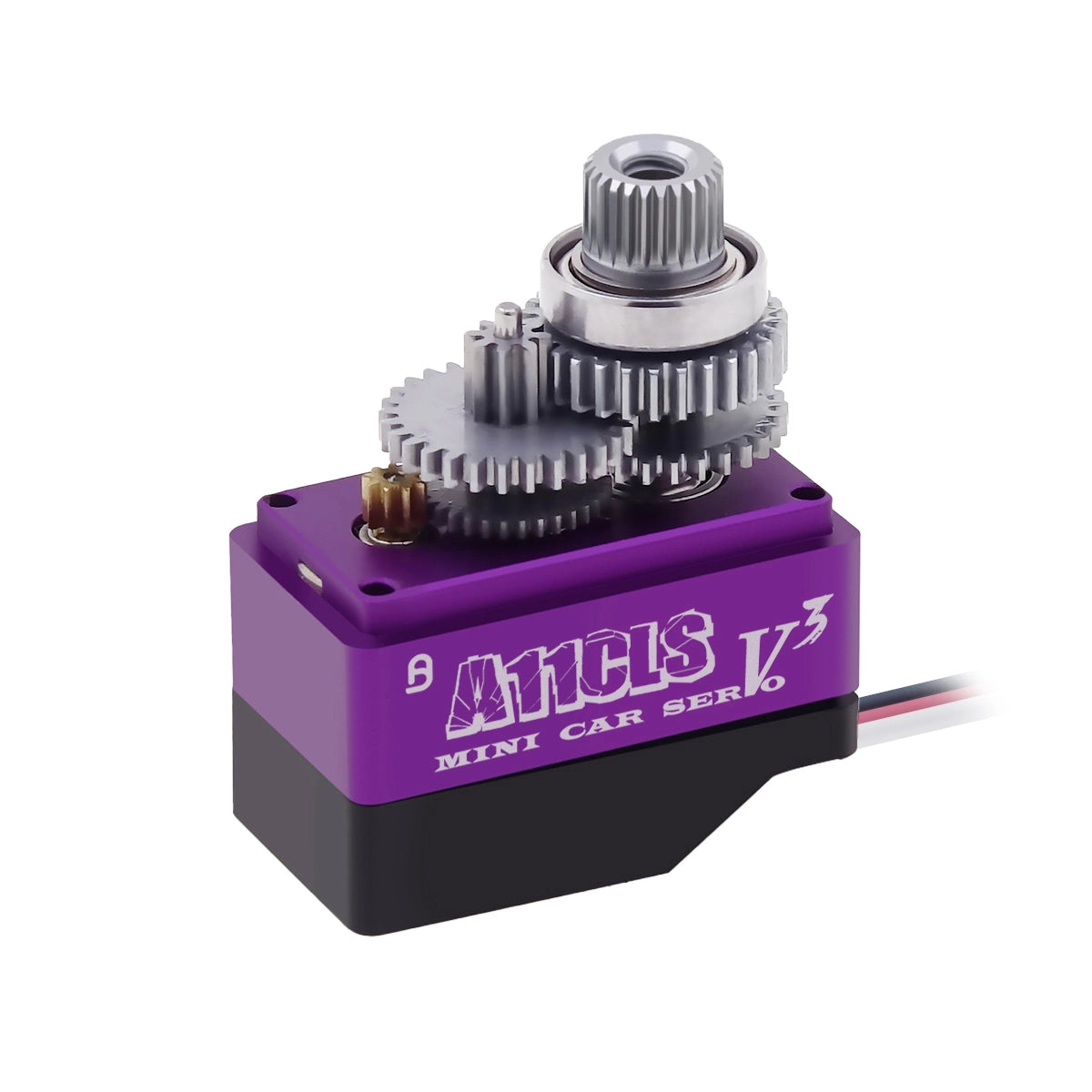

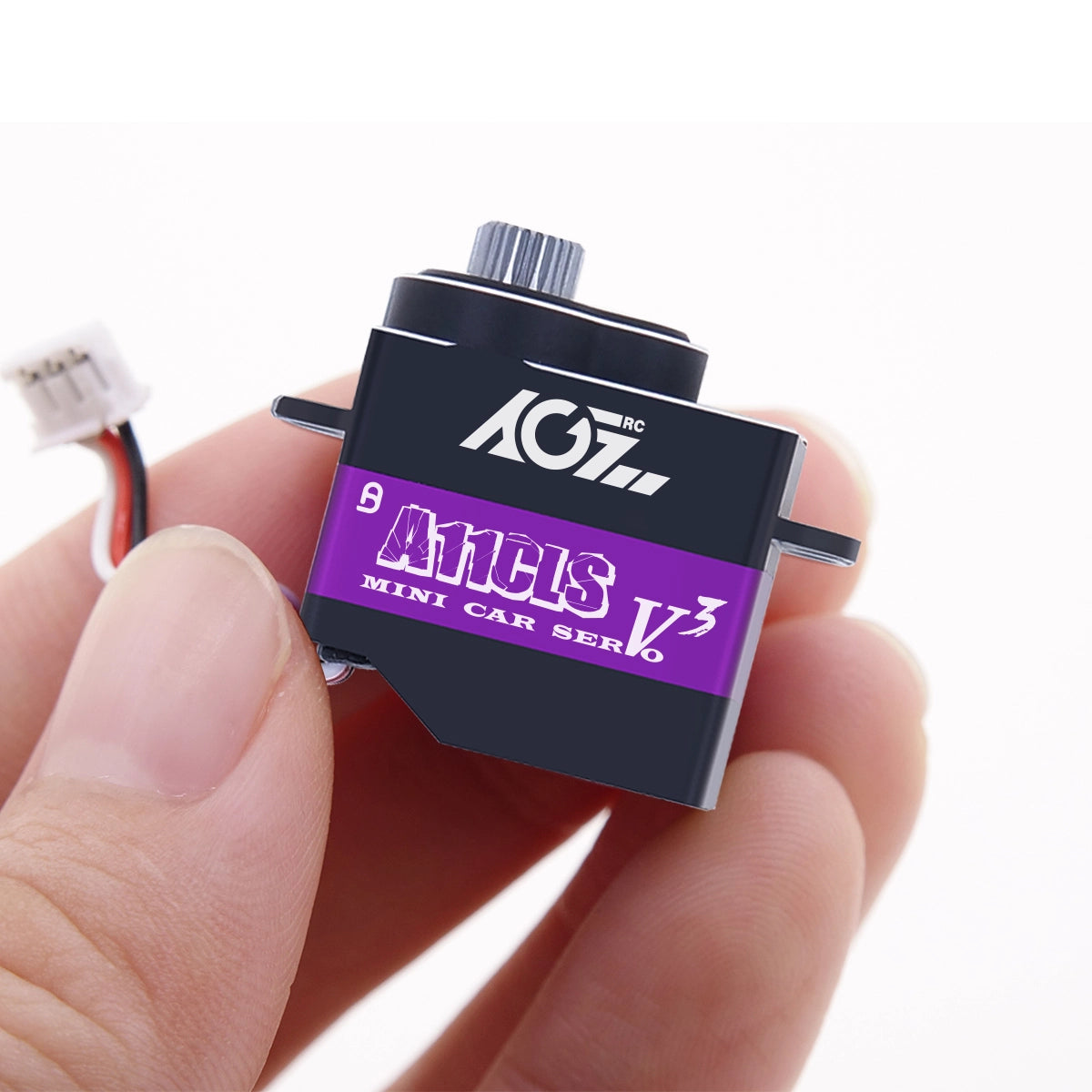

AGFrc A11CLS V3 Mini Z Scale Digital Programmable Servo. The use of high quality coreless motor, high accuracy titanium gear and 2 ball bearings, so that it working stable and smooth. It has programmable function which support to adjust the servo parameter as required. It is a great choice for 1/24, 1/28 scale mini Z cars who demand 0.065sec fast speed and 1.4 kg-cm high torque in an ultra-small size and light weight body.
Feature
High Performance Mini-Z Digital Servo
High Precision Titanium Gear
High Quality Coreless Motor
Fast Cooling Aluminum Case
Programmable Digital Circuit For Parameter Adjustment
Ideal for Mini-Z Car, 1/18, 1/24, 1/27, 1/28 Scale Cars etc.( Such as DRZ V2, BMR-X, DriftArt 2 ,WLtoys K989/969, Mini-Q, etc.)

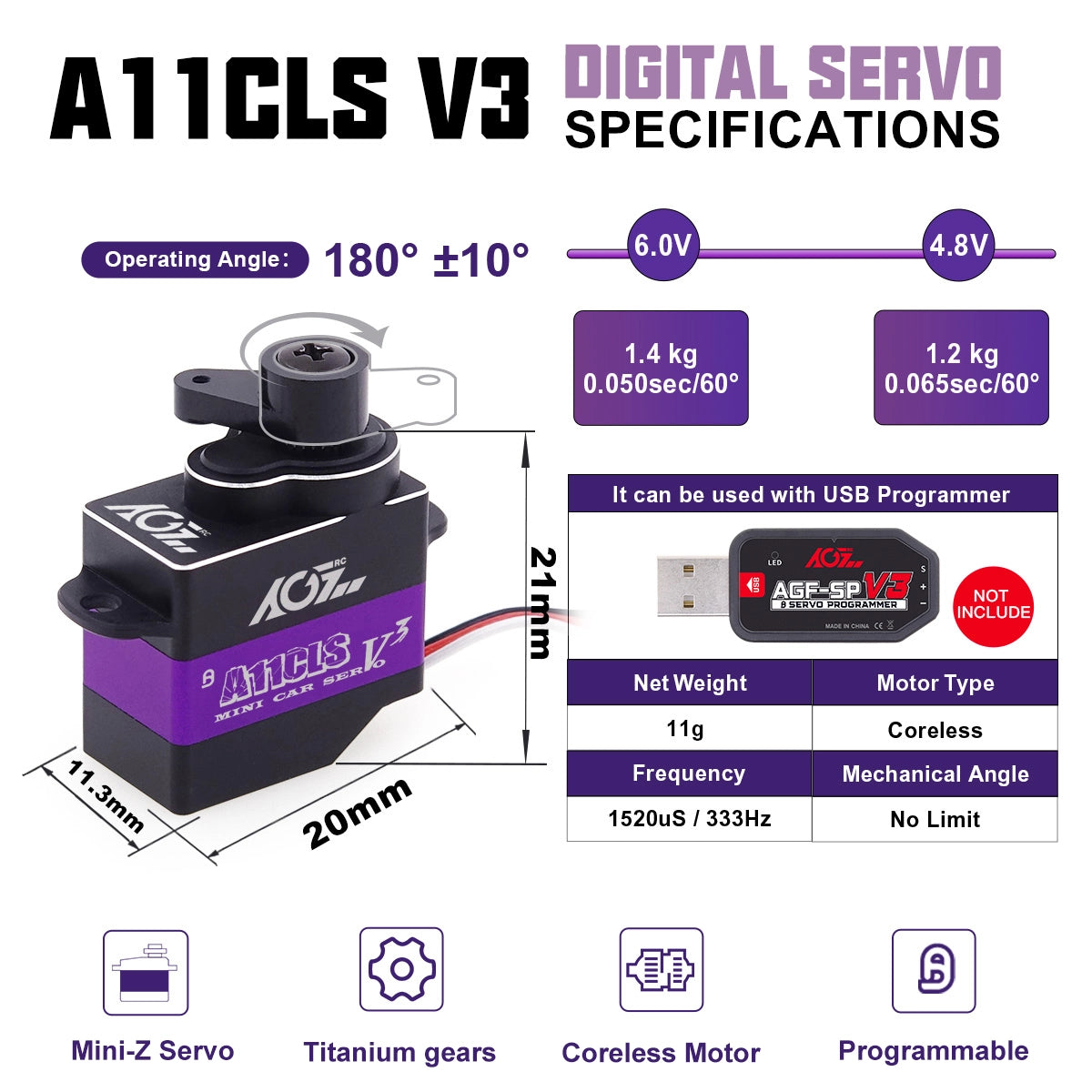

Specification
Item Name: A11CLS V3
Operating Voltage: 4.8-6.0V
Operating speed: 0.065sec/60°@4.8V
Operating speed: 0.050sec/60°@6.0V
Stall Torque: 1.2 kg-cm (17 oz-in) @4.8V
Stall Torque: 1.4 kg-cm (19 oz-in) @6.0V
Gear: Titanium
Motor: Coreless
Size: 20*21*11.3mm (0.78 x 0.82 x 0.44 in)

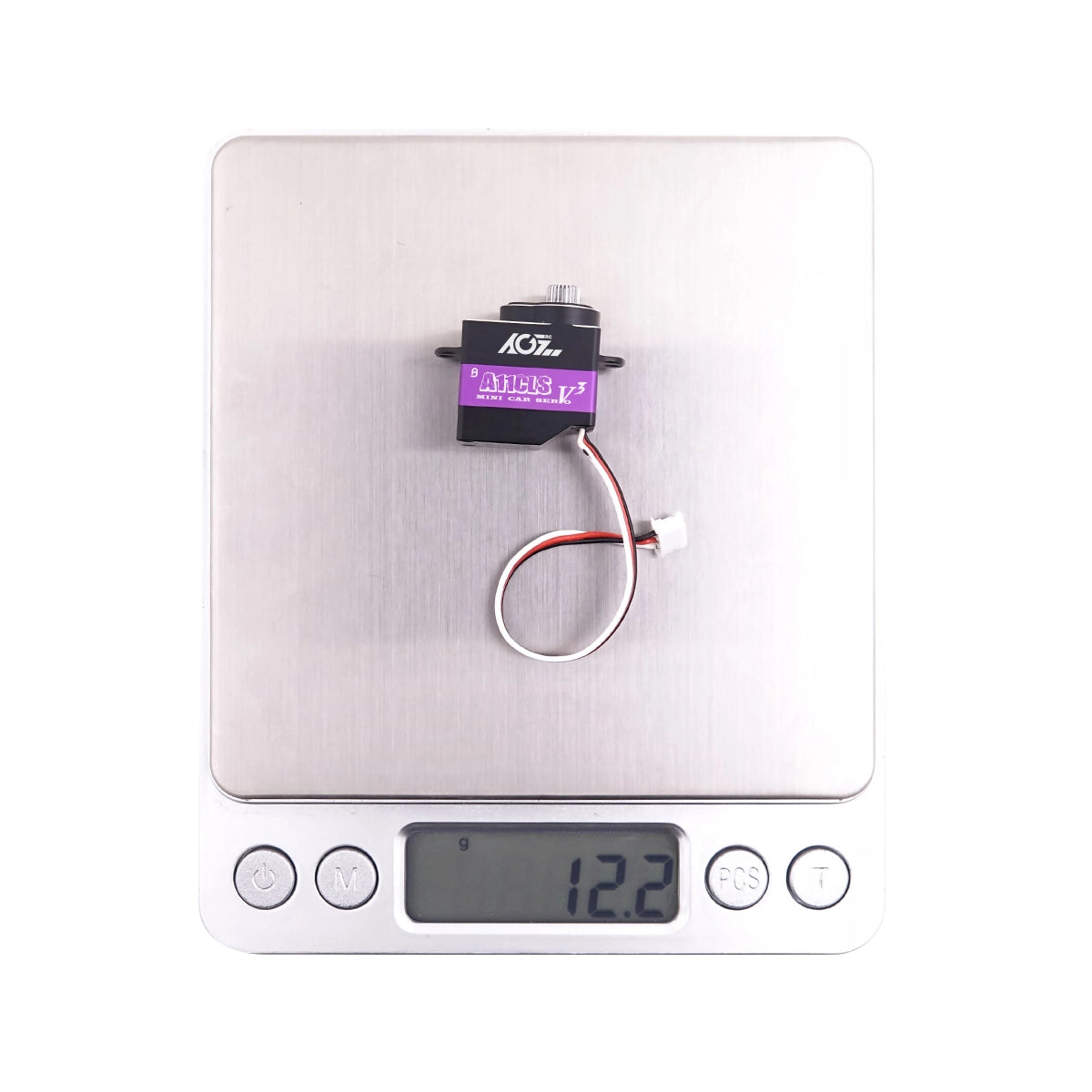

Weight: 11g
Connector Wire: JR or JST1.5 80mm for selection
