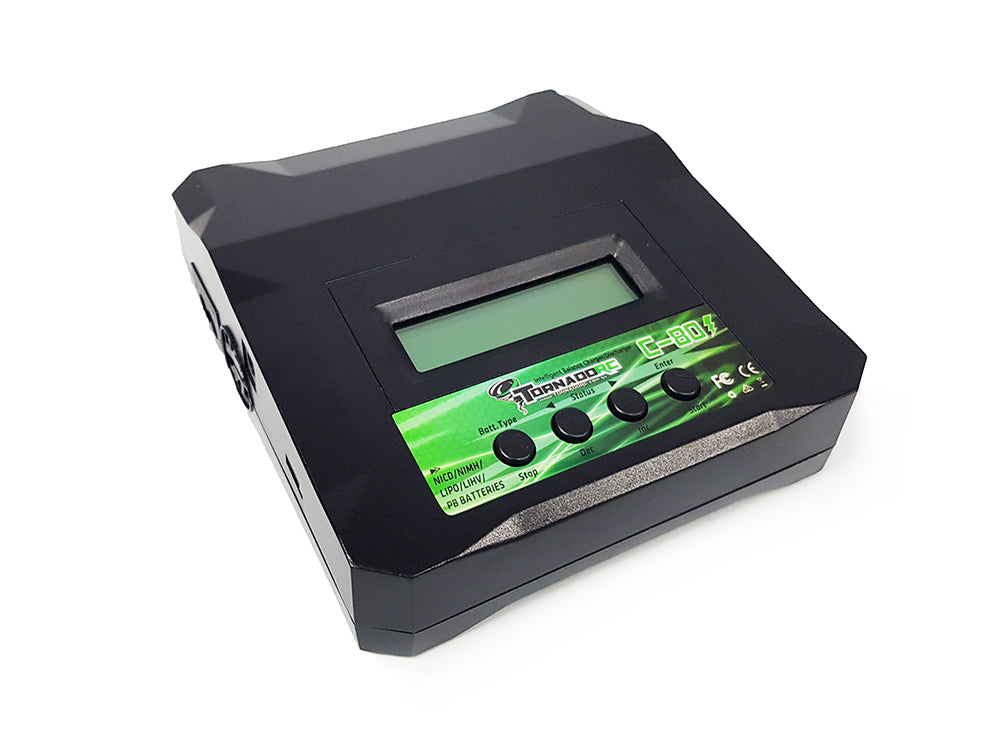

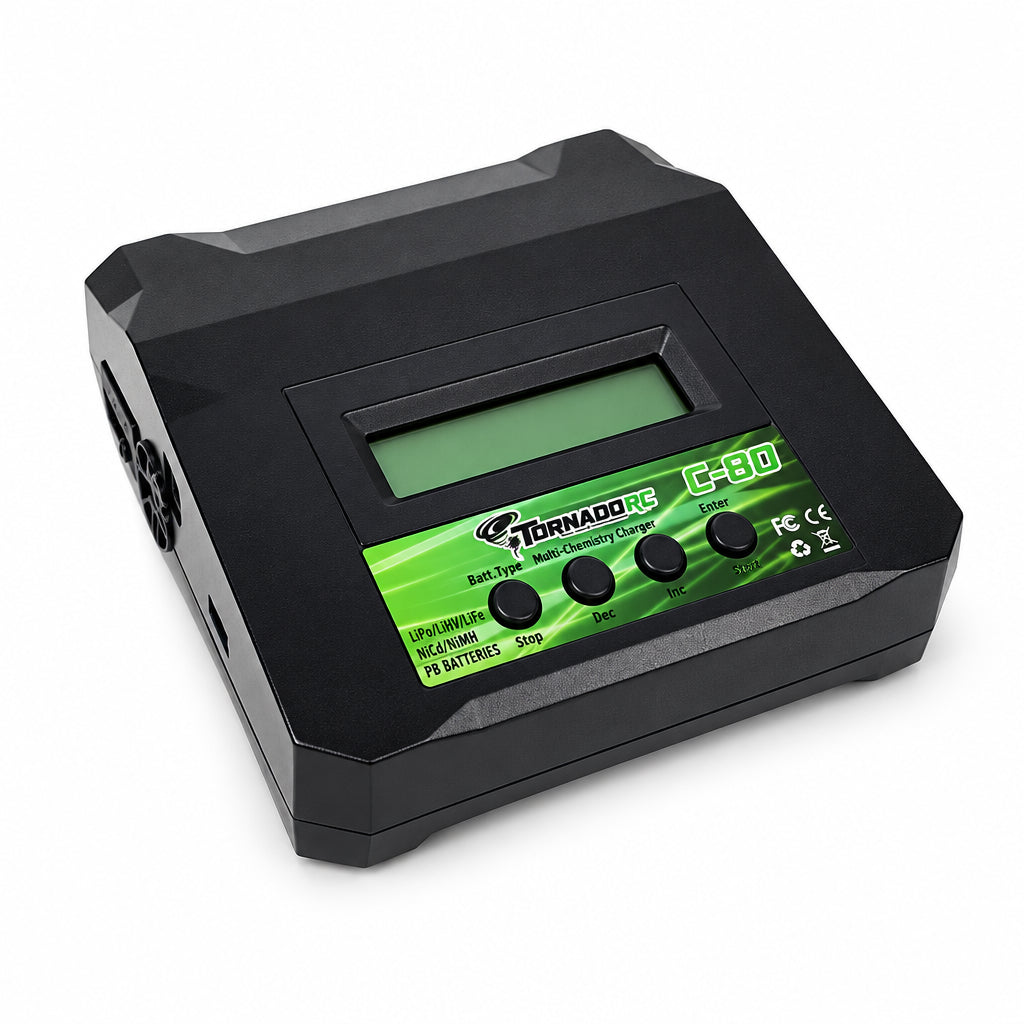

Tornado RC C-80 80W 7A AC/DC Multi-Chemistry Charger
The Tornado RC C-80 is a dual-input battery charger with an 80W charging output and an adjustable charge current of 0.1-7.0A. It supports LiPo, Li-Ion, LiFe (including A123M1), NiCd, NiMH and Pb lead acid batteries, with built-in JST-XH balancing for up to 6S LiPo packs. AC mains and DC input options let you use the charger with an appropriate power source at your workbench or trackside.
Key Features
- 100-240V AC or 10-18V DC input.
- Built-in LiPo cell balancer with JST-XH connections, up to 6S.
- Two-line backlit LCD and button-operated programming.
- Five battery memory settings and individual cell monitoring.
- Capacity limit, temperature monitoring and input power monitoring functions.
- Charge/discharge cycling, up to five cycles.
- FAST and STORAGE programs for supported lithium battery types.
Specifications
| Brand | Tornado RC |
|---|---|
| Model / SKU | C-80 / TRC-C80 |
| Charging output | 80W |
| Discharge power | 5W |
| Charge current | 0.1-7.0A |
| Discharge current | 0.1-1.0A |
| AC input | 100-240V |
| DC input | 10-18V |
| Li-Ion / LiPo / LiFe | 1-6 series cells |
| NiCd / NiMH | 1-15 cells |
| Pb / lead acid | 2-20V |
| LiPo balancing | Up to 6S, JST-XH |
| Cycle count | Up to 5 |
| Charger weight | 400g |
| Dimensions | 136 x 127 x 56mm |
Check your battery chemistry, cell count and connector requirements before charging, and follow the charger and battery instructions. LiHV charging support is not confirmed by the supplied specifications.
Package Includes
- 1 x Tornado RC C-80 charger.
- 1 x alligator clips to DC cable.
- 1 x alligator clips to Deans-style connector.
- 1 x mini JST (red) connector to Deans-style connector cable.
- 1 x female servo connector to Deans-style connector cable.
- 1 x glow plug connector to Deans-style connector cable.
- 1 x 4mm banana connectors to Deans-style connector cable.
- 1 x mains kettle lead with Australian plug.
- 1 x manual.
